sp_cursoropen and parallelism
15
votes
1
answer
3457
views
I'm running into a performance problem with a query that I can't seem to get my head around.
I pulled the query out of a cursor definition.
This query takes seconds to execute
SELECT A.JOBTYPE
FROM PRODROUTEJOB A
WHERE ((A.DATAAREAID=N'IW')
AND ((A.CALCTIMEHOURS0)
AND (A.JOBTYPE3)))
AND EXISTS (SELECT 'X'
FROM PRODROUTE B
WHERE ((B.DATAAREAID=N'IW')
AND (((((B.PRODID=A.PRODID)
AND ((B.PROPERTYID=N'PR1526157') OR (B.PRODID=N'PR1526157')))
AND (B.OPRNUM=A.OPRNUM))
AND (B.OPRPRIORITY=A.OPRPRIORITY))
AND (B.OPRID=N'GRIJZEN')))
AND NOT EXISTS (SELECT 'X'
FROM ADUSHOPFLOORROUTE C
WHERE ((C.DATAAREAID=N'IW')
AND ((((((C.WRKCTRID=A.WRKCTRID)
AND (C.PRODID=B.PRODID))
AND (C.OPRID=B.OPRID))
AND (C.JOBTYPE=A.JOBTYPE))
AND (C.FROMDATE>{TS '1900-01-01 00:00:00.000'}))
AND ((C.TODATE={TS '1900-01-01 00:00:00.000'}))))))
GROUP BY A.JOBTYPE
ORDER BY A.JOBTYPE

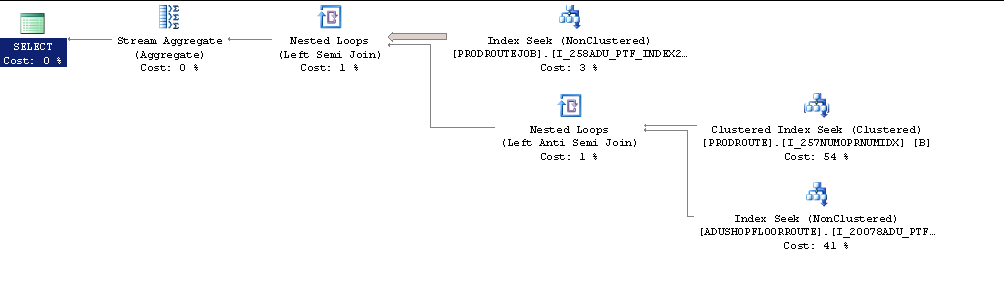

The actual execution plan looks like this.
Noticing the server wide setting was set to MaxDOP 1 I tried playing around with maxdop settings.
Adding
However, the application in question (Dynamics AX) doesn't execute queries like this, it uses cursors.
The actual code captured is this.
declare @p1 int
set @p1=189527589
declare @p3 int
set @p3=16
declare @p4 int
set @p4=1
declare @p5 int
set @p5=2
exec sp_cursoropen @p1 output,N'SELECT A.JOBTYPE FROM PRODROUTEJOB A WHERE ((A.DATAAREAID=N''IW'') AND ((A.CALCTIMEHOURS0) AND (A.JOBTYPE3))) AND EXISTS (SELECT ''X'' FROM PRODROUTE B WHERE ((B.DATAAREAID=N''IW'') AND (((((B.PRODID=A.PRODID) AND ((B.PROPERTYID=N''PR1526157'') OR (B.PRODID=N''PR1526157''))) AND (B.OPRNUM=A.OPRNUM)) AND (B.OPRPRIORITY=A.OPRPRIORITY)) AND (B.OPRID=N''GRIJZEN''))) AND NOT EXISTS (SELECT ''X'' FROM ADUSHOPFLOORROUTE C WHERE ((C.DATAAREAID=N''IW'') AND ((((((C.WRKCTRID=A.WRKCTRID) AND (C.PRODID=B.PRODID)) AND (C.OPRID=B.OPRID)) AND (C.JOBTYPE=A.JOBTYPE)) AND (C.FROMDATE>{TS ''1900-01-01 00:00:00.000''})) AND ((C.TODATE={TS ''1900-01-01 00:00:00.000''})))))) GROUP BY A.JOBTYPE ORDER BY A.JOBTYPE ',@p3 output,@p4 output,@p5 output
select @p1, @p3, @p4, @p5

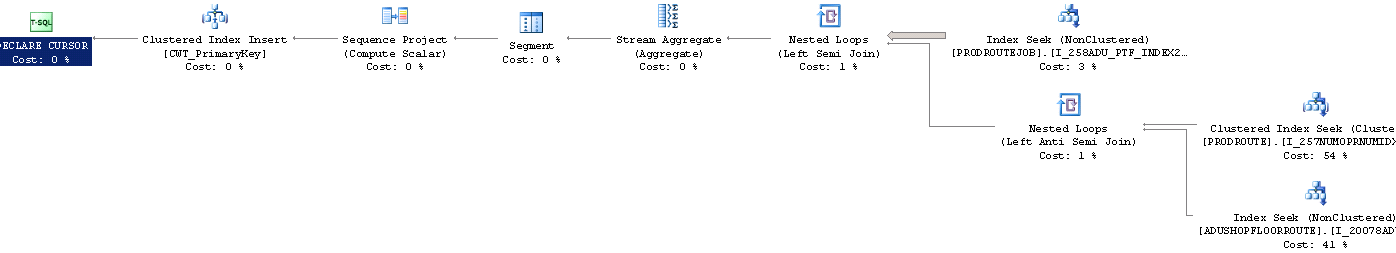

resulting in this execution plan (and unfortunately the same multiple-second execution times).
I've tried several things such as dropping cached plans, adding options in the query inside the cursor definition, ... But none of them seem to get me a parallel plan.
I've also searched google for quite a bit looking for parallelism limitations of cursors but can't seem to find any limitations.
Am I missing something obvious here?
The actual SQL build is
Noticing the server wide setting was set to MaxDOP 1 I tried playing around with maxdop settings.

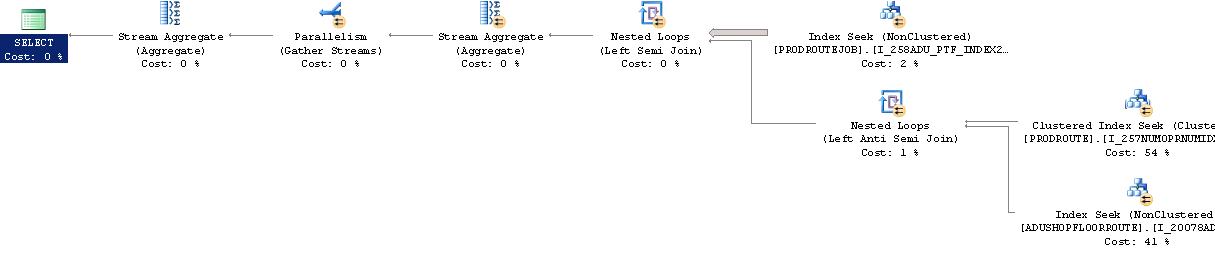

Adding OPTION (MAXDOP 0) to the query, or changing the server settings results in much better performance and this query plan.
However, the application in question (Dynamics AX) doesn't execute queries like this, it uses cursors.
The actual code captured is this.
declare @p1 int
set @p1=189527589
declare @p3 int
set @p3=16
declare @p4 int
set @p4=1
declare @p5 int
set @p5=2
exec sp_cursoropen @p1 output,N'SELECT A.JOBTYPE FROM PRODROUTEJOB A WHERE ((A.DATAAREAID=N''IW'') AND ((A.CALCTIMEHOURS0) AND (A.JOBTYPE3))) AND EXISTS (SELECT ''X'' FROM PRODROUTE B WHERE ((B.DATAAREAID=N''IW'') AND (((((B.PRODID=A.PRODID) AND ((B.PROPERTYID=N''PR1526157'') OR (B.PRODID=N''PR1526157''))) AND (B.OPRNUM=A.OPRNUM)) AND (B.OPRPRIORITY=A.OPRPRIORITY)) AND (B.OPRID=N''GRIJZEN''))) AND NOT EXISTS (SELECT ''X'' FROM ADUSHOPFLOORROUTE C WHERE ((C.DATAAREAID=N''IW'') AND ((((((C.WRKCTRID=A.WRKCTRID) AND (C.PRODID=B.PRODID)) AND (C.OPRID=B.OPRID)) AND (C.JOBTYPE=A.JOBTYPE)) AND (C.FROMDATE>{TS ''1900-01-01 00:00:00.000''})) AND ((C.TODATE={TS ''1900-01-01 00:00:00.000''})))))) GROUP BY A.JOBTYPE ORDER BY A.JOBTYPE ',@p3 output,@p4 output,@p5 output
select @p1, @p3, @p4, @p5
resulting in this execution plan (and unfortunately the same multiple-second execution times).
I've tried several things such as dropping cached plans, adding options in the query inside the cursor definition, ... But none of them seem to get me a parallel plan.
I've also searched google for quite a bit looking for parallelism limitations of cursors but can't seem to find any limitations.
Am I missing something obvious here?
The actual SQL build is SQL Server 2008 (SP1) - 10.0.2573.0 (X64) which i realise is unsupported, but I cannot upgrade this instance as I see fit. I would need to transfer the database to another server and that would mean pulling a fairly large uncompressed backup over a slow WAN.
Trace flag 4199 doesn't make a difference, and neither does OPTION (RECOMPILE).
The cursor properties are:
API | Fast_Forward | Read Only | Global (0)
