SSIS: Trying to configure branching logic in Foreach loop

1 vote
0 answers
245 views

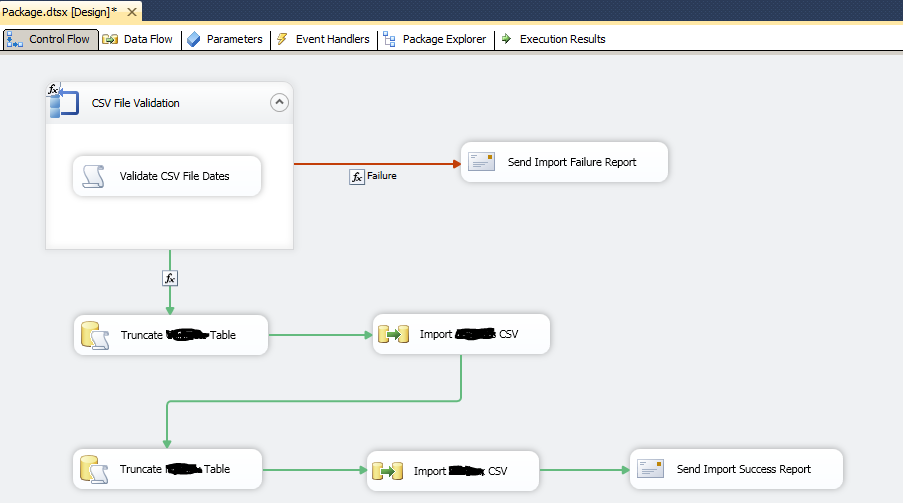

Full disclosure: I posted this on SQL Server Central yesterday but got no answers. I hope someone here can assist me. I'm working on importing flat files into a database. I have used a Foreach loop in an SSIS project in SQL Server Data Tools for SQL 2012. have just started developing these packages so please let me know of any rookie mistakes I need to correct. If even one of the files has not been updated in the last day, I want the processing to stop and an alert email sent out. Schematically, the control flow I need is as follows: [Foreach loop] ---> Failure ----> Send import failure email | | ↓ Success ↓ [Proceed with import] I have tested with setting one of the files to be too old, on purpose, to trigger the failure. What happens now, though, is that I get the Failure email but I also get a SQL error from a task in the Proceed with import section, as if the Success path has also been followed. In both success and failure cases, I have tried to set Precedence Constraints with "Expression and Constraint" as the Evaluation operation, with a Boolen value set for the expressions. @[User::ProcessFile]= False or @[User::ProcessFile]= True depending on the case. Could someone explain (or direct me to a reference explaining) how to make sure the SSIS package is following the path I expect it to? EDIT: Picture of control flow is below. enter image description here
Asked by jrdevdba (288 rep)
Feb 11, 2016, 02:46 PM
Last activity: Feb 11, 2016, 03:34 PM
