Operator used tempdb to spill data during execution with spill level 2

26 votes
1 answer
32205 views
sql-server performance memory execution-plan sort-operator query-performance
                          I am struggling to minimise the cost of sort operation on a query plan with the warning Operator used tempdb to spill data during execution with spill level 2

I have found several posts related to spill data during execution with spill level 1 , but not level 2. Level 1 seems to be caused bu outdated statistics , what about level 2? I could not find anything related to level 2.

I found this article very interesting related to Sort warnings:

Never Ignore a Sort Warning in SQL Server

**My Sql Server?**

> Microsoft SQL Server 2014 (SP2) (KB3171021) - 12.0.5000.0 (X64)  	Jun
> 17 2016 19:14:09  	Copyright (c) Microsoft Corporation 	Enterprise
> Edition (64-bit) on Windows NT 6.3  (Build 9600: ) (Hypervisor)

**My Hardware?**

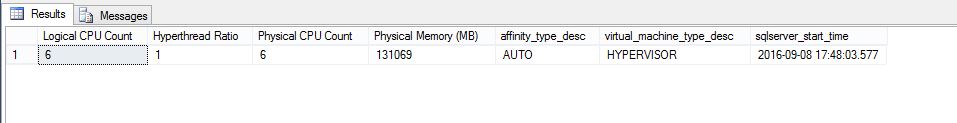

running the query below for find the harware:

-- Hardware information from SQL Server 2012

    SELECT cpu_count AS [Logical CPU Count], hyperthread_ratio AS [Hyperthread Ratio],
    cpu_count/hyperthread_ratio AS [Physical CPU Count],
    physical_memory_kb/1024 AS [Physical Memory (MB)], affinity_type_desc,
    virtual_machine_type_desc, sqlserver_start_time
    FROM sys.dm_os_sys_info WITH (NOLOCK) OPTION (RECOMPILE);

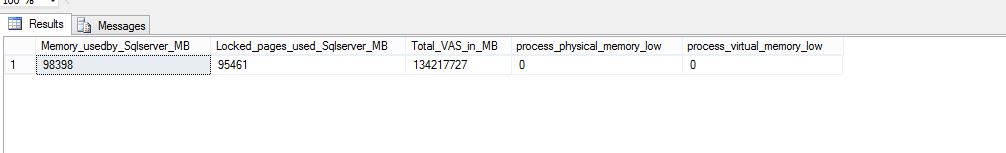

**currently allocated memory**

    SELECT
    (physical_memory_in_use_kb/1024) AS Memory_usedby_Sqlserver_MB,
    (locked_page_allocations_kb/1024) AS Locked_pages_used_Sqlserver_MB,
    (total_virtual_address_space_kb/1024) AS Total_VAS_in_MB,
    process_physical_memory_low,
    process_virtual_memory_low
    FROM sys.dm_os_process_memory;

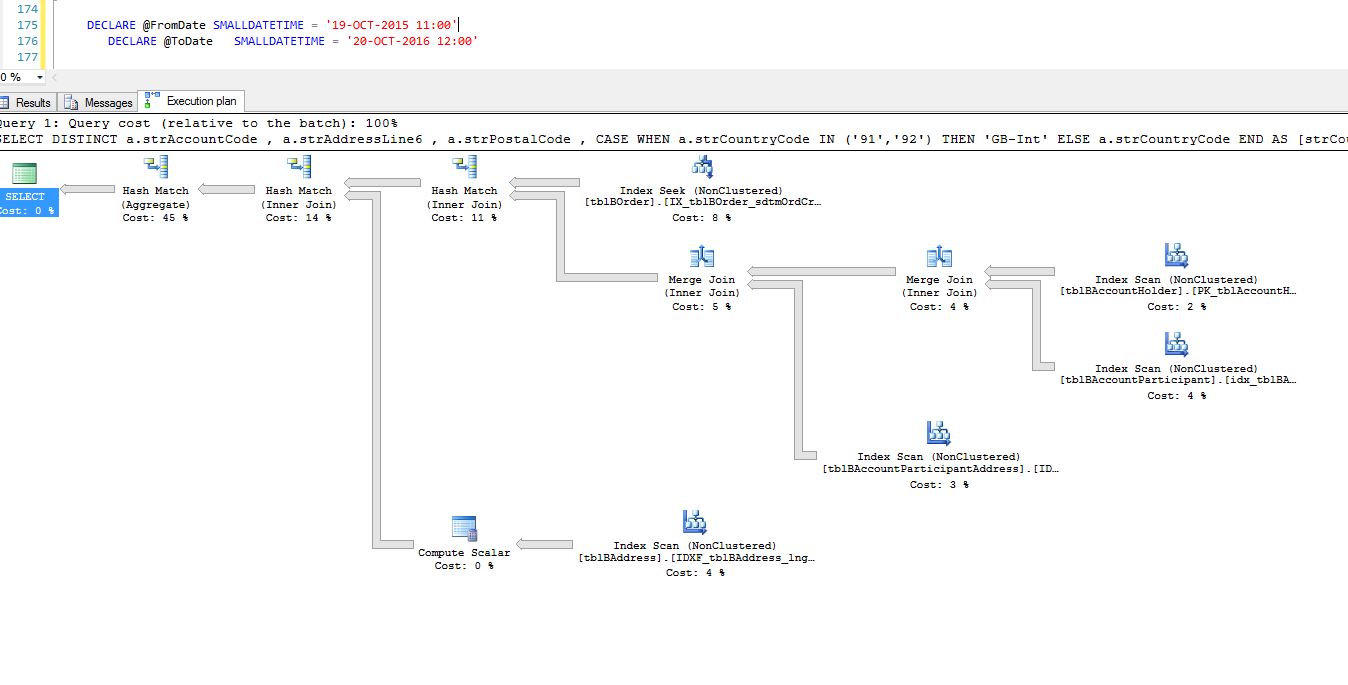

when I run my query with one year scope I don't get any warning whatsoever, as per the picture below:

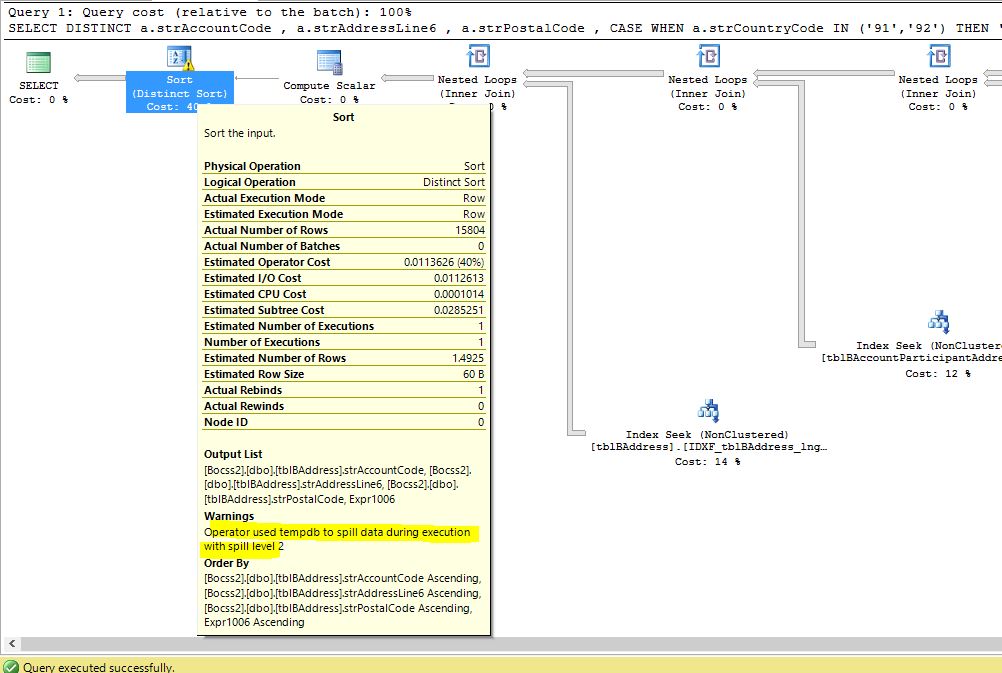

But when I run it only for 1 day scope I get this warning on the sort operator:

this is the query:

        DECLARE @FromDate SMALLDATETIME = '19-OCT-2016 11:00'
    	DECLARE @ToDate   SMALLDATETIME = '20-OCT-2016 12:00'

        SELECT		DISTINCT
    				a.strAccountCode ,
    				a.strAddressLine6 ,
    				a.strPostalCode ,
    				CASE	WHEN a.strCountryCode IN ('91','92') THEN 'GB-Int'
    						ELSE a.strCountryCode
    						END AS [strCountryCode]
        FROM		Bocss2.dbo.tblBAccountParticipant AS ap
        INNER JOIN	Bocss2.dbo.tblBAccountParticipantAddress AS apa ON ap.lngParticipantID = apa.lngParticipantID
    																AND apa.sintAddressTypeID = 2
        INNER JOIN	Bocss2.dbo.tblBAccountHolder AS ah ON ap.lngParticipantID = ah.lngParticipantID
        INNER JOIN	Bocss2.dbo.tblBAddress AS a ON apa.lngAddressID = a.lngAddressID
    											AND a.blnIsCurrent = 1
        INNER JOIN	Bocss2.dbo.tblBOrder AS o ON ap.lngParticipantID = o.lngAccountParticipantID
    										AND o.sdtmOrdCreated >= @FromDate
    										AND o.sdtmOrdCreated < @ToDate

    OPTION(RECOMPILE)

the query plan is here

the query plan using pastetheplan

Questions:
1) in the query plan I see this:

    StatementOptmEarlyAbortReason="GoodEnoughPlanFound" CardinalityEstimationModelVersion="70"

why 70? I am using sql server 2014

2) how do I get rid of that sort operator (if at all possible)?

3) I have seen page life expectation pretty low, apart adding more memory to this server, is there any other thing I can have a look at to see if I can prevent this warning?

cheers

**Update after the answer from Shanky and Paul White**

I have checked my statistics according to the script below, and they seem all correct and updated.

these are all indexes and tables used in this query.

    DBCC SHOW_STATISTICS ('dbo.tblBAddress','IDXF_tblBAddress_lngAddressID__INC')
    GO
    DBCC SHOW_STATISTICS  ('dbo.tblBOrder','IX_tblBOrder_sdtmOrdCreated_INCL')
    GO
    DBCC SHOW_STATISTICS ('dbo.tblBAccountHolder','PK_tblAccountHolder')
    GO
    DBCC SHOW_STATISTICS ('dbo.tblBAccountParticipant','PK_tblBAccountParticipants')
    GO
    DBCC SHOW_STATISTICS ('dbo.tblBAccountParticipantAddress','IDXF_tblBAccountParticipantAddress_lngParticipantID')
    GO

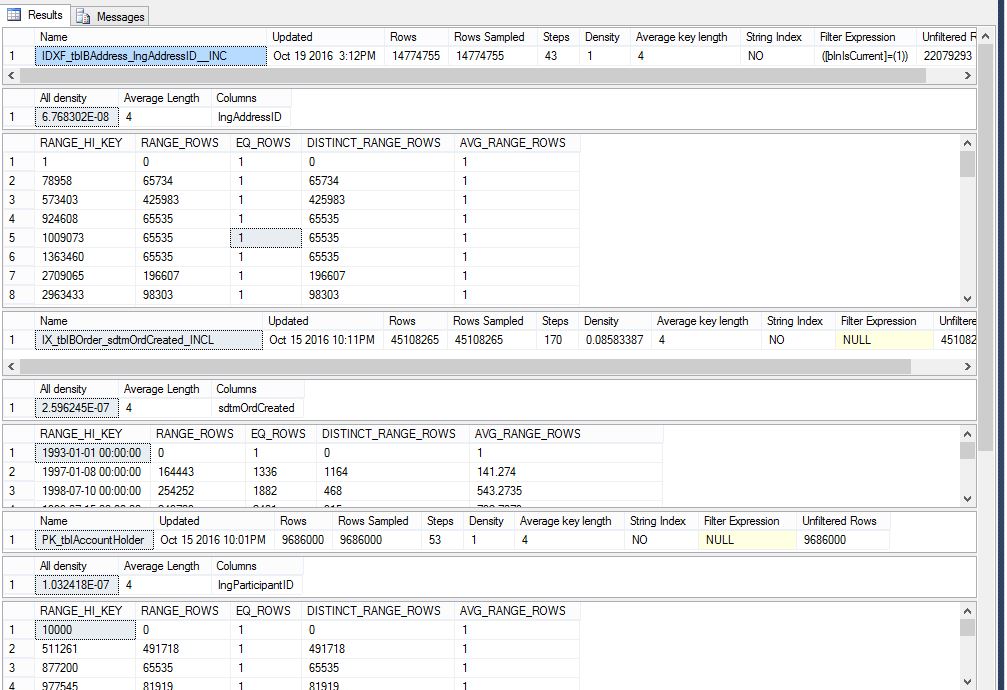

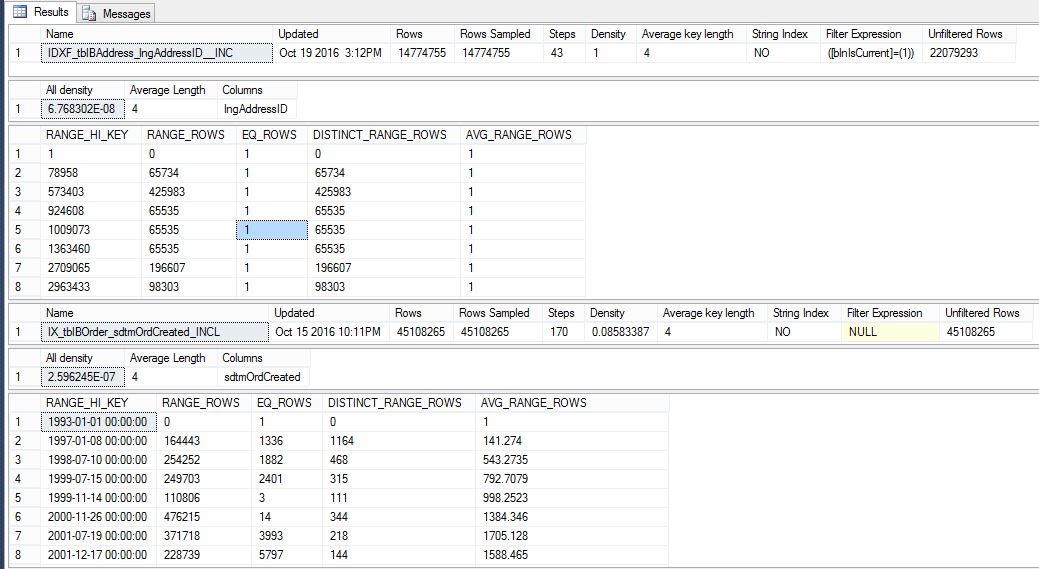

this is what I have got returned:

This is a partial results, but I have re-visited them all.

For statistics update I currently have Ola Hallengren

the Index Optimise Job - scheduled to run once a week - Sundays

    EXECUTE [dbo].[IndexOptimize]
    @Databases = 'USER_DATABASES,-%Archive',
    @Indexes = 'ALL_INDEXES' ,
    @FragmentationLow = NULL,
    @FragmentationMedium = NULL,
    @FragmentationHigh = NULL,
    @PageCountLevel=1000,
    @StatisticsSample =100
    ,@UpdateStatistics = 'Index',
    @OnlyModifiedStatistics = 'Y',
    @TimeLimit=10800,
    @LogToTable = 'Y'

Although the stats seemed to be updated
After I run the following script, I got no more warning on the sort operator.

    UPDATE STATISTICS [Bocss2].[dbo].[tblBOrder]  WITH FULLSCAN
    --1 hour  04 min 14 sec

    UPDATE STATISTICS [Bocss2].[dbo].tblBAddress  WITH FULLSCAN
    -- 45 min 29 sec

    UPDATE STATISTICS  [Bocss2].[dbo].tblBAccountHolder WITH FULLSCAN
    -- 26 SEC

    UPDATE STATISTICS  [Bocss2].[dbo].tblBAccountParticipant WITH FULLSCAN
    -- 4 min

    UPDATE STATISTICS  [Bocss2].[dbo].tblBAccountParticipantAddress WITH FULLSCAN
    -- 7 min 3 sec
Asked by Marcello Miorelli (17274 rep)
Oct 20, 2016, 04:59 PM
Last activity: Jan 22, 2020, 06:22 AM
