How a single column update is saved to disk
1
vote
0
answers
37
views
In learning about how data in a database is saved to disk, I came across the slide below. Earlier in the presentation they mention a _block size_ is roughly 512 to 8,192 bytes. I haven't worked with files much before, I basically think about programming in terms of main memory access. But the presentation says to transfer 1 block into main memory it takes about 1ms. This is opposed to nanosecond-scale main-memory modifications on individual records.

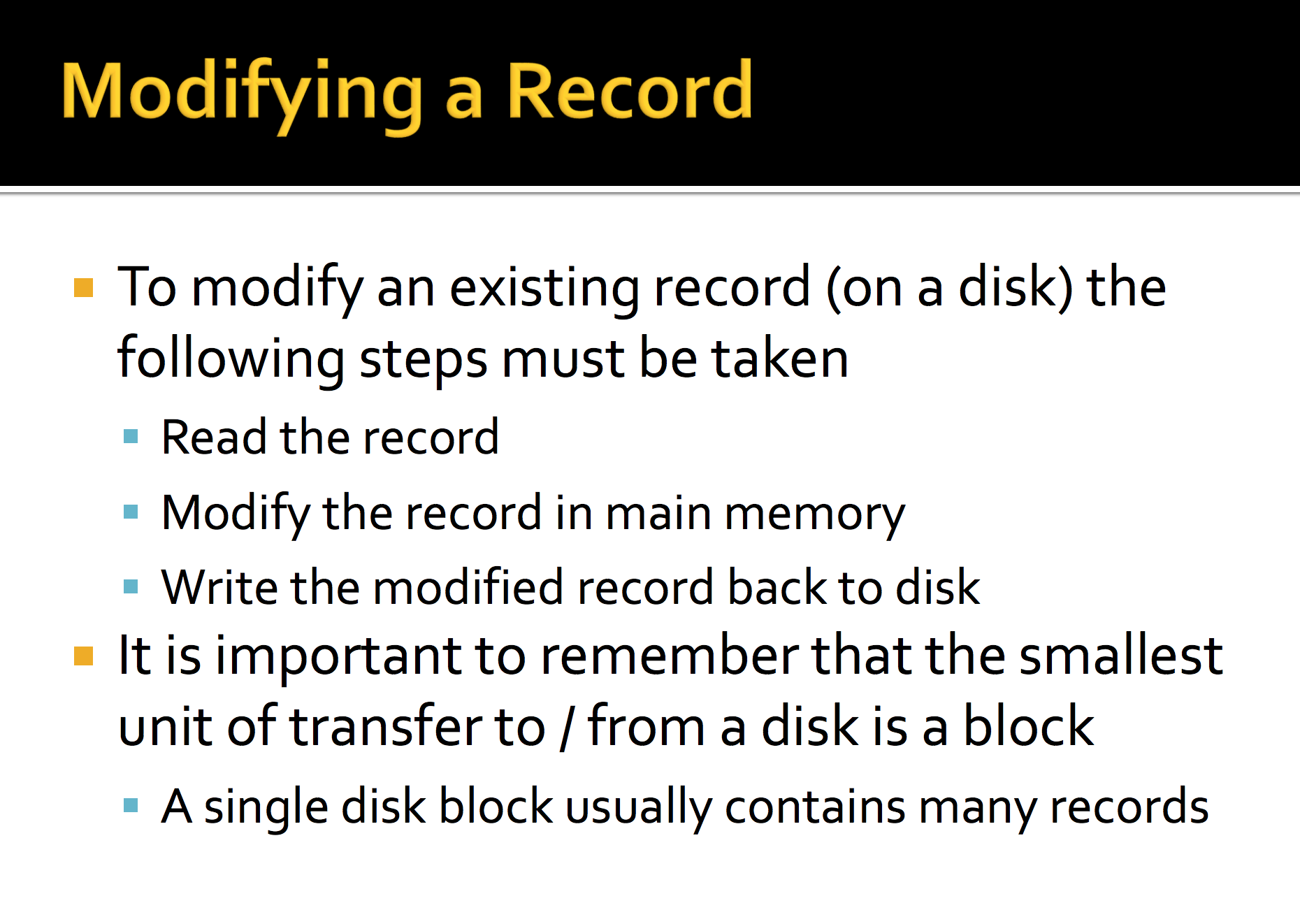

So the slide below says that to modify a single record (a single column of a record even), you must save an _entire block_ back to disk. I assume this is for every single change you make. So for every network request that comes into the database calling
](http://www.cs.sfu.ca/CourseCentral/454/johnwill/cmpt454_02disks.pdf)
UPDATE
, that is 1 block read and 1 block write (assuming it's for one record in one table). That is ~2ms per update. If you have [100k requests per second](https://www.quora.com/How-many-requests-per-second-do-Twitter-servers-have-to-handle) , that's 100 requests per millisecond. Assuming each request did 1 record update, that means you probably have 50 databases handling the request load.
I know my math and assumptions are probably wrong. Which is why I am asking this question:
1. If you really must read and write an entire block per modification. It seems like you could read just the slice you wanted instead.
2. How a database optimizes updates so you can fit more into that ~2ms window per update. I can imagine if you batch update a few records, they all are in different blocks, so that means even slower time.
---
[
Asked by Lance Pollard
(221 rep)
Jul 1, 2018, 09:34 PM
