Costly HASH MATCH Aggregate

0 votes
1 answer
5079 views
sql-server performance join optimization execution-plan query-performance
                          I have a view,which is slow when i query a simple select statement with a where clause.The where clause column is indexed(Non-clustered index)
Here is the view and the plan.
execution plan



    CREATE VIEW [dbo].[CurrentIncidentStatus]
    AS
    SELECT [incidentDetails].[IncidentStatus], [incidentDetails].[IncidentStatus_FieldValue], [incidentDetails].[IncidentStatus_Description], Report.Id ReportId, Form.Id FormId
    FROM
    [dbo].[IncidentDetailsPage_Incident] incidentDetails WITH (NOLOCK)
    INNER JOIN [dbo].[IncidentDetailsPages] detailsPage WITH (NOLOCK)
    ON incidentDetails.PageId = detailsPage.Id
    INNER JOIN Form WITH (NOLOCK)
    ON detailsPage.FormId = Form.Id
    INNER JOIN Report WITH (NOLOCK)
    ON Form.ReportId = Report.Id
    LEFT OUTER JOIN dbo.IncidentDetailsPage_Supplements supplement WITH (NOLOCK)
    ON detailsPage.Id = supplement.PageId
    INNER JOIN
    (
        SELECT ReportId, Max(FormNumber) RecentFormNumber FROM
        (
            SELECT Report.Id ReportId, FormId, COALESCE(SupplementNumber, '0000') formNumber
            FROM dbo.IncidentDetailsPages detailPage WITH (NOLOCK)
            INNER JOIN Form WITH (NOLOCK)
            ON detailPage.FormId = Form.Id
            INNER JOIN Report WITH (NOLOCK)
            ON Form.ReportId = Report.Id
            INNER JOIN dbo.IncidentDetailsPage_Incident incident WITH (NOLOCK)
            ON detailPage.Id = incident.PageId
            LEFT OUTER JOIN dbo.IncidentDetailsPage_Supplements supplement WITH (NOLOCK)
            ON detailPage.Id = supplement.PageId) FormNumbers
            GROUP By ReportId) RecentForm
    ON Report.Id = RecentForm.ReportId AND
    RecentForm.RecentFormNumber = COALESCE(supplement.SupplementNumber, '0000')
    GO


I analyzed the plan in Sentry Plan explorer and learned that the HASH JOIN Aggregate is the costly operation in the plan.
I am trying to avoid/remove that HASH JOIN someway.?
If any of you have experienced similar situation please give some suggestion.

Additional Info:

The plan says Hash key is built on Table Report and column Id.
In-fact the Idcolumn is the primary key in the Report table ,so a clustered index is present also a Non-clustered index is created for Id column.
Still why Hashing is required for Report.Id?

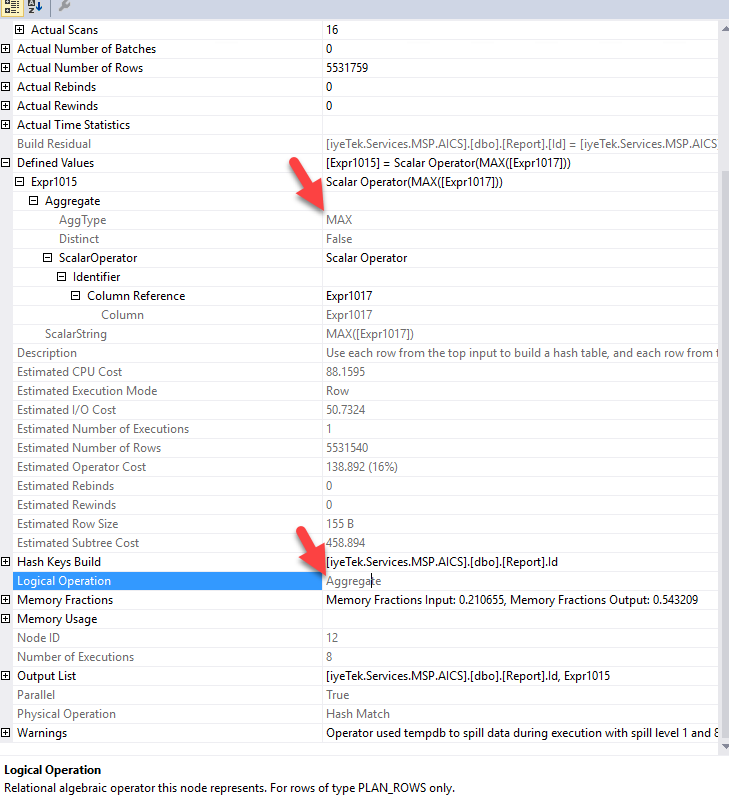

Here is the screenshot of the HASH MATCH Aggregate operation.



Info:
When i select TOP 100 or 1000 it doesn't show HASH MATCH (Aggregate).

Thanks


Asked by user9516827 (1345 rep)
Nov 1, 2018, 03:05 PM
Last activity: Jun 5, 2025, 06:07 AM
