Checkpoints on secondary replica AlwaysOn AG

5 votes
1 answer
701 views

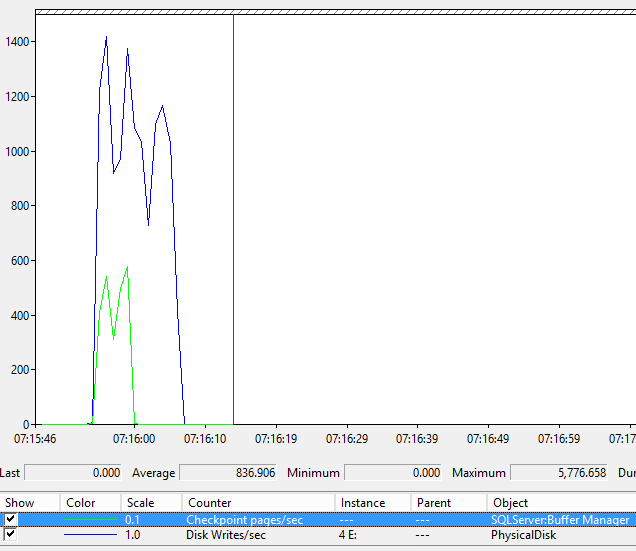

**Setup** 3 Node Alwayson cluster - 1 sync and 1 async secondary replica - SQL Server 2012 **Situation** We are witnessing PageIOLatches when reading from the asynchronous secondary replica. This is mostly caused by the throughput of the SAN that has been throttled. The hosting partner told us that this limitation cannot immediately be alleviated due to hardware constraints. The primary and synchrounous replica use other SANs with a higher throughput. Although this situation is far from ideal, this is a temporary situation that will be solved soon and not the subject of my question. When investigating the IO waits we noticed that these occur concurrently with an increase in the number of checkpoint pages/sec. enter image description here I was under the impression that checkpoints don’t occur on secondary replica’s in an AG, just as discussed [here]( https://social.msdn.microsoft.com/Forums/sqlserver/en-US/9446acb1-b64c-45f8-a5f0-43a551a49466/alwayson-checkpoints-on-secondary-servers?forum=sqldisasterrecovery) . To verify this behaviour, I’ve set up an extended event to monitor the checkpoint events on the asynchronous replica. Just as expected, no checkpoints were captured for this database, nor have I found any checkpoints from other databases that match the pattern. Next, I’ve created the same extended event on the primary replica and started a perfmon to verify if we could witness the same behaviour. Here we were able to capture (automatic) checkpoints, they happen approx. once per minute. These checkpoints occur simultaneously with the checkpoint pages/sec increase on our secondary (and primary) replica. It seems that checkpoints are being generated on the primary and redone on the secondary replicas. This would mean that checkpoints do occur implicitly on secondary replica's in an AG. **Question** Is my assumption correct that in an AG checkpoints are being generated on the primary replica and redone on all secondary replicas? And thus, if the database TARGET_RECOVERY_TIME isn't set, the recovery interval setting of the primary replica will dictate the checkpoints on all secondary replicas for these databases.
Asked by Thomas Costers (738 rep)
Jul 16, 2019, 07:39 AM
Last activity: Jul 16, 2019, 03:16 PM
