Org chart CTE with exact index but plan shows expensive sort node

2 votes
1 answer
137 views
                          I've got a moderately large table (148 million rows) that's got pretty common org chart attributes to it.  Names are changed, but it's the same idea.  I was thinking of adding a hierarchyid column to the mix; then I could index that and hopefully make some of the queries faster.

This query is modeled on the msdocs sample on hierarchy id.  Before I ran it, I put indexes on (employeeid), (managerid, include employeeid), and (officeid, managerid, employeeid) hoping to make it as fast as possible.  But the query took over 5 hours to run.

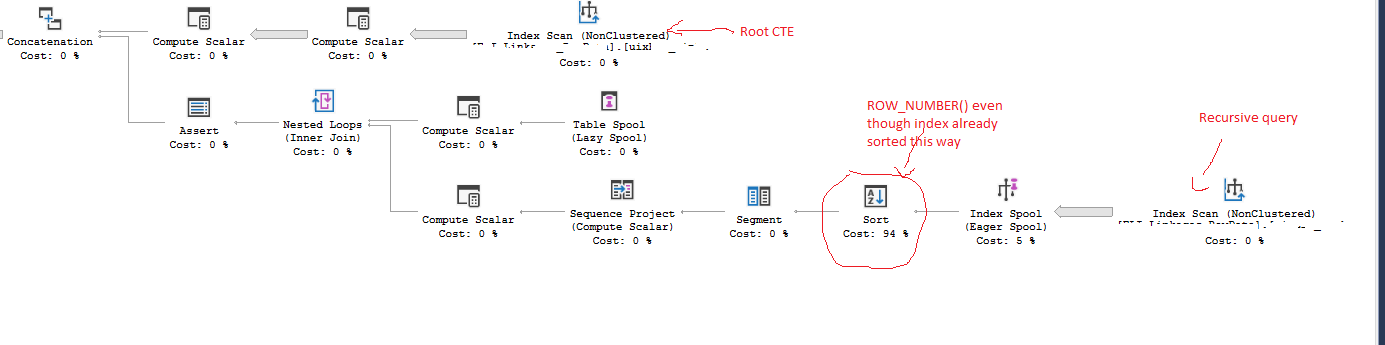

I looked at the plan, and the (officeid, managerid, employeeid) index is used for both parts of the cte.

What I don't understand is that the ROW_NUMBER() windowing function also appears to have added a SORT node, which ss says is taking 94% of the query time.  It's already using an index that is pre-ordered in the same way, so why is there a SORT node taking up 94% of the time?



Thanks

    WITH paths(path, duns, extended_gu, extended_parent)
    AS (  -- This section provides the value for the root of the hierarchy
        SELECT hierarchyid::GetRoot() AS path, employeeid, officeid, managerid
        FROM OrgChart where officeid = 0

        -- This section provides values for all nodes except the root
        UNION ALL
        SELECT CAST(p.path.ToString() + CAST(ROW_NUMBER() OVER (PARTITION BY RD.officeid, RD.managerid
        ORDER BY RD.officeid, RD.managerid) AS varchar(30)) + '/' AS hierarchyid),
        RD.employeeid, RD.managerid, Rd.officeid
        FROM OrgChart rd
        JOIN paths AS p ON rd.managerid = P.employeeid
    )
    UPDATE rd set tree=P.Path
    FROM Paths P
    INNER JOIN  OrgChart rd on rd.duns = P.Duns

EDIT: Schema, added in response to comment below.  I don't see a "Paste The Plan" as a feature in the editor; where is that?  Rather than null on the roots, those ids are 0

    CREATE TABLE [dbo].[OrgChart](
    	[employeeid] [int] NOT NULL,
    	[managerid] [int] NOT NULL,
    	[officeid] [int] NOT NULL,
    	...
    	[tree] [hierarchyid] NULL
    ) ON [PRIMARY]
    GO

    CREATE UNIQUE NONCLUSTERED INDEX [uixOrgChart_employeeids] ON [dbo].[OrgChart]
    (
    	[employeeid] ASC
    )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, IGNORE_DUP_KEY = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

    CREATE UNIQUE NONCLUSTERED INDEX [uixOrgChart_officemgremployee] ON [dbo].[OrgChart]
    (
    	[officeid] ASC,
    	[managerid] ASC,
    	[employeeid] ASC
    )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, IGNORE_DUP_KEY = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

    CREATE NONCLUSTERED INDEX [uixOrgChart_mgremp] ON [dbo].[OrgChart]
    (
    	[managerid] ASC
    )
    INCLUDE([employeeid]) WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]



Asked by user1664043 (381 rep)
Feb 18, 2021, 04:23 PM
Last activity: Sep 18, 2025, 04:08 AM
