MariaDB Maxscale caching not working

0 votes
1 answer
711 views
I have setup Maxscale (v6.2) and have connected to the Galera Cluster (3 nodes - MariaDB 10.5). I am trying to use the cache filter but it seems to not work. I have enabled general log for all the nodes and whenever I run the query I can see the queries are served from the nodes instead from the Maxscale cache. Also I noticed that when I use mysqlslap with concurrency 10 I find that the general log file in each node shows 10 times connected and the actual query hit is 3. When I do similar operation using Haproxy then the general log shows 3 times connected and hit also 3. Not sure if there is anything to be setup properly for Maxscale. Here is my maxscale.cnf
# MaxScale documentation:
# https://mariadb.com/kb/en/mariadb-maxscale-25/

# Global parameters
#
# Complete list of configuration options:
# https://mariadb.com/kb/en/mariadb-maxscale-25-mariadb-maxscale-configuration-guide/

[maxscale]
threads=auto
log_info=true

# Server definitions
#
# Set the address of the server to the network
# address of a MariaDB server.
#

[server1]
type=server
address=1.1.1.1
port=3306
protocol=MariaDBBackend

[server2]
type=server
address=1.1.1.2
port=3306
protocol=MariaDBBackend

[server3]
type=server
address=1.1.1.3
port=3306
protocol=MariaDBBackend

# Monitor for the servers
#
# This will keep MaxScale aware of the state of the servers.
# MariaDB Monitor documentation:
# https://mariadb.com/kb/en/maxscale-25-monitors/

[Galera-Monitor]
type=monitor
module=galeramon
servers=server1,server2,server3
user=maxscale
password=XXXXXXXX
monitor_interval=2000

#Galera router service
[Galera-Service]
type=service
router=readwritesplit
servers=server1,server2,server3
user=maxscale
password=XXXXXXXX
lazy_connect=true

#Galera cluster listener
[Galera-Listener]
type=listener
service=Galera-Service
protocol=MariaDBClient
address=0.0.0.0
port=3306

#cache
[Cache]
type=filter
module=cache
storage=storage_inmemory
soft_ttl=300s
hard_ttl=600s
cached_data=shared

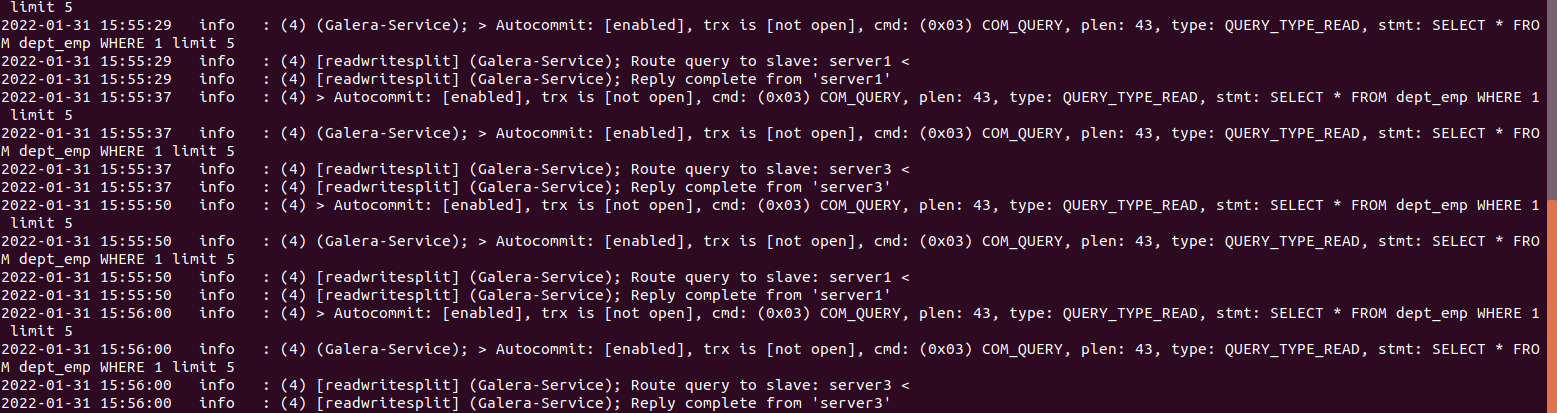

Below image shows the maxscale log where the query is routed to the server instead of being served from cache.enter image description here
Asked by Suraj (103 rep)
Jan 17, 2022, 03:32 PM
Last activity: Jan 31, 2022, 05:19 PM
