How to calculate hitrate of shared buffer in postgresql, using TPC-C workload?

0 votes
0 answers
213 views
I use TPC-C(benchmarksql 4.0) to test postgres. I set up
=1000
, the whole database is about
, and I set
=10GB
in
.conf
. I also set
=false
to change the warehouse, and I run the benchmark for
. But when I calculate the hitrate with the sql below, I got a very high hitrate, that was strange. I also print the workload of benchmarksql, it did choose warehouse, district, customer at random. And I modified postgres to output the access times of blocks of the table file, though it is skewed, but it can't cause that high hit rate in shared buffer.
with
all_tables as
(
SELECT  *
FROM    (
    SELECT  'all'::text as table_name,
        sum( (coalesce(heap_blks_read,0) + coalesce(idx_blks_read,0) + coalesce(toast_blks_read,0) + coalesce(tidx_blks_read,0)) ) as from_disk,
        sum( (coalesce(heap_blks_hit,0)  + coalesce(idx_blks_hit,0)  + coalesce(toast_blks_hit,0)  + coalesce(tidx_blks_hit,0))  ) as from_cache
    FROM    pg_statio_USER_tables  --> change to pg_statio_USER_tables if you want to check only user tables (excluding postgres's own tables)
    ) a
WHERE   (from_disk + from_cache) > 0 -- discard tables without hits
),
tables as
(
SELECT  *
FROM    (
    SELECT  relname as table_name,
        ( (coalesce(heap_blks_read,0) + coalesce(idx_blks_read,0) + coalesce(toast_blks_read,0) + coalesce(tidx_blks_read,0)) ) as from_disk,
        ( (coalesce(heap_blks_hit,0)  + coalesce(idx_blks_hit,0)  + coalesce(toast_blks_hit,0)  + coalesce(tidx_blks_hit,0))  ) as from_cache
    FROM    pg_statio_USER_tables --> change to pg_statio_USER_tables if you want to check only user tables (excluding postgres's own tables)
    ) a
WHERE   (from_disk + from_cache) > 0 -- discard tables without hits
)
SELECT  table_name as "table name",
    from_disk as "disk hits",
    round((from_disk::numeric / (from_disk + from_cache)::numeric)*100.0,2) as "% disk hits",
    round((from_cache::numeric / (from_disk + from_cache)::numeric)*100.0,2) as "% cache hits",
    (from_disk + from_cache) as "total hits"
FROM    (SELECT * FROM all_tables UNION ALL SELECT * FROM tables) a
ORDER   BY (case when table_name = 'all' then 0 else 1 end), from_disk desc;

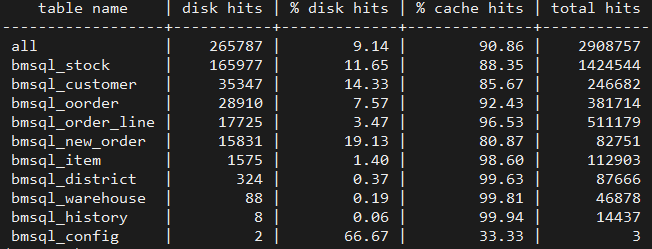

enter image description here
Asked by Hongtao Wang (1 rep)
Jul 4, 2023, 07:30 AM
