How can I improve low IOPS performance for an Azure SQL Database Hyperscale elastic pool?

1 vote
1 answer
462 views

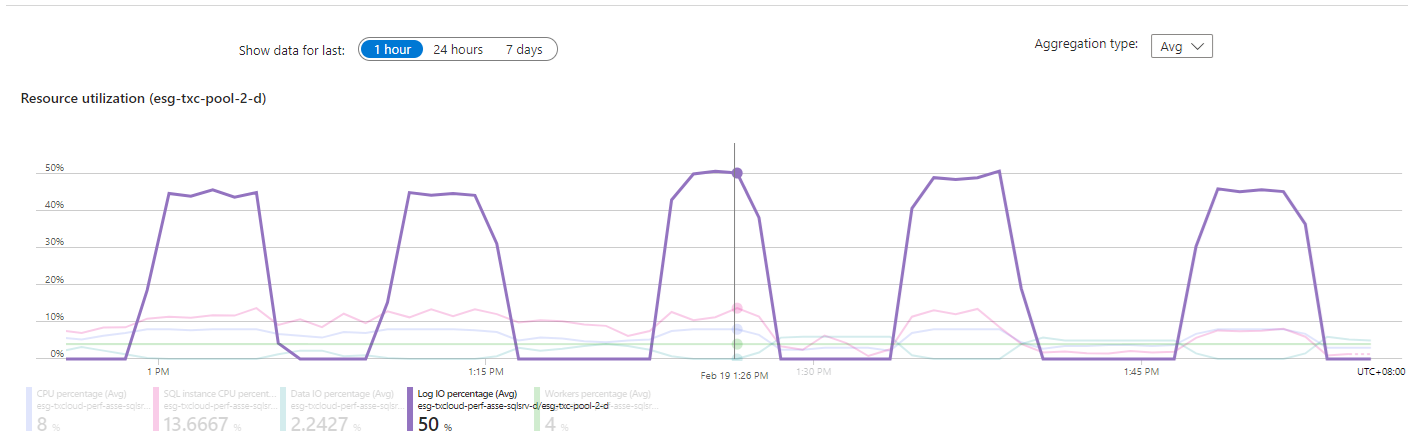

I'm doing performance testing a series of data migration scripts which mainly consist of large INSERTs (sometimes 100M-200M records) with often complex SELECTs with a lot of hash joins. Configuration: - **Hyperscale: Premium-series, 16 vCores** - Max **4TB** of Locally-redundant backup storage, however for most of the tests only ~1TB was allocated Problem: during one of the critical queries which takes circa 2 hours and performs a 100M+ insert on a heavily indexed table (7 indexes) there seem to be extremely wild swings in IOPS write performance: enter image description here I set **MAXDOP=16** manually for the query (1 DOP per vCPU) Questions: 1. My best guess is that the IOPS gets severely degraded when the local SSD (presumably with a maximum of 2560 IOPS per vCore ) gets filled up and the severe bottleneck becomes the shared storage instance. Is this accurate? Note that in this case this happens roughly 50% of the time and virtually everything grinds down to a halt. 2. If this is the case, is there a way to calculate the effective minimum IOPS of the shared storage instance? 3. Is there a way to improve the minimum IOPS of the shared storage instance, e.g. by manually over-allocating the storage space? (this would be the standard approach for a lot of other configurations where e.g. you get 3 IOPS per GB) 4. How can I get the actual IOPS figures rather than %? 5. Any other suggestions/tips? Thanks in advance
Asked by Andrew G (71 rep)
Mar 5, 2024, 03:39 AM
Last activity: Aug 4, 2025, 02:46 AM
