Does ST_AsMVTGeom/ST_AsMVT truncate data, or is my query wrong?
1
vote
1
answer
50
views

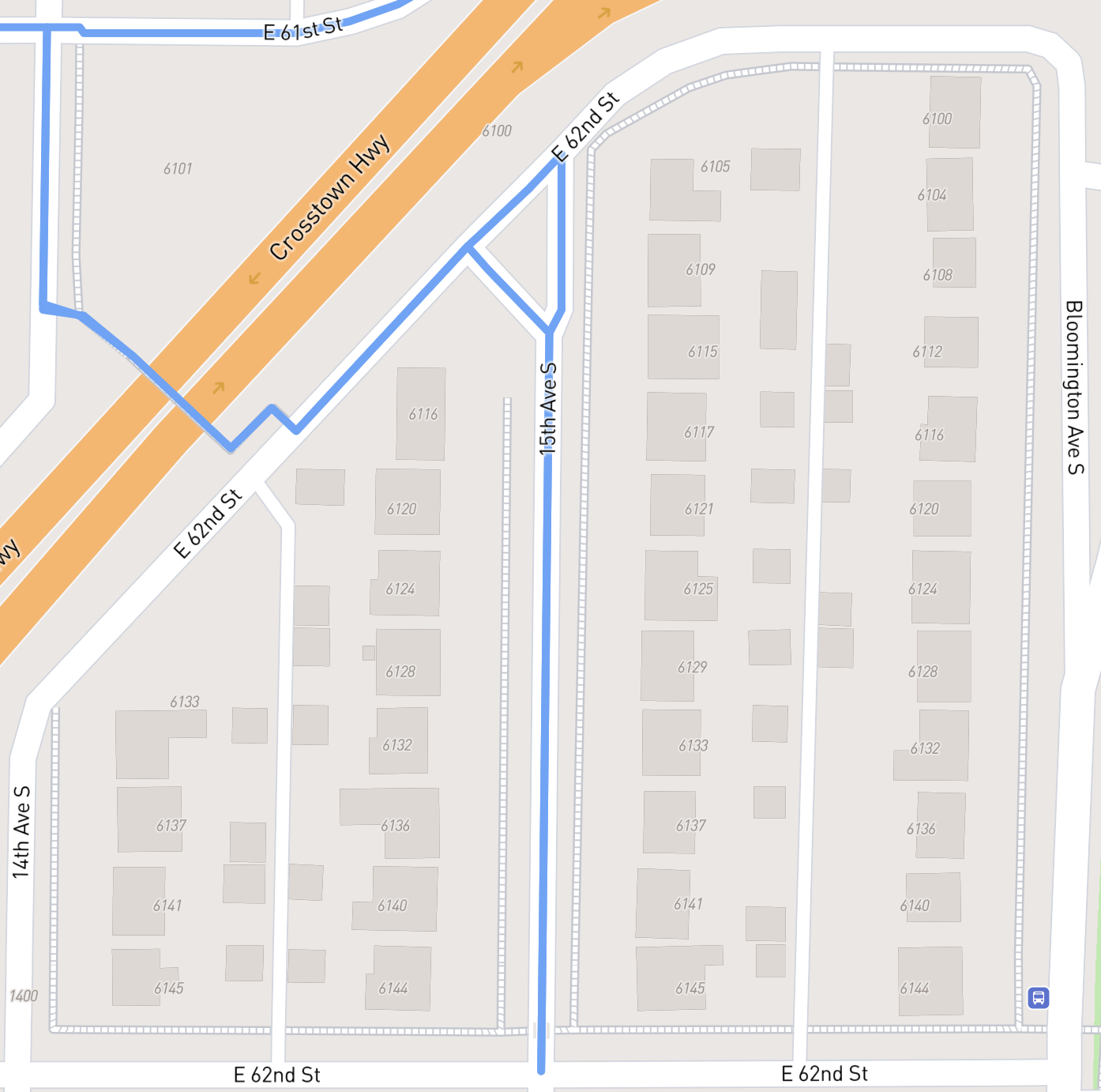

Here's the individual activity, which is GeoJSON displayed on the map rather than doing any ST_AsMVTGeom/ST_AsMVT work:

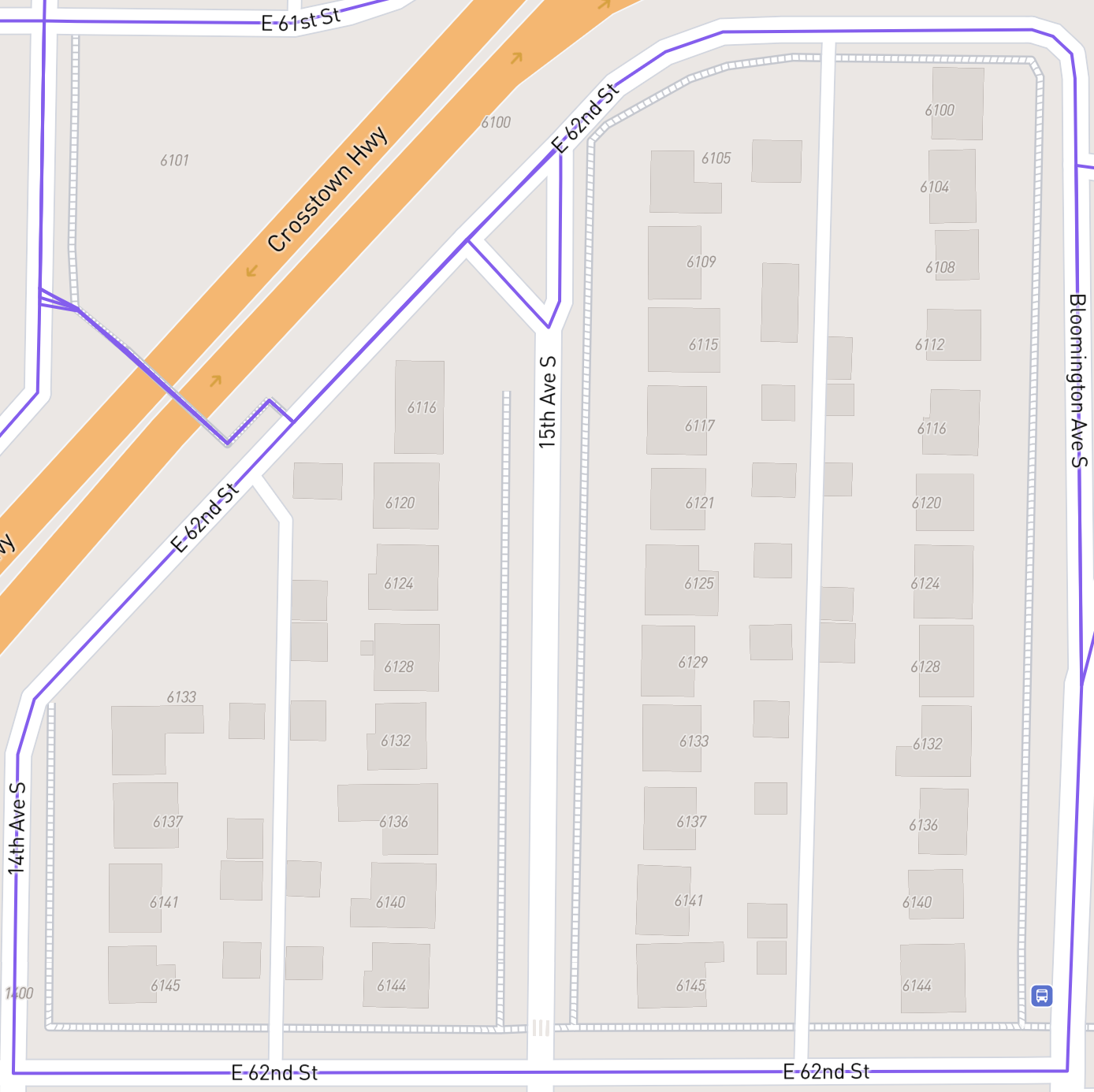

Here's the result of the ST_AsMVTGeom/ST_AsMVT query:
If you compare the purple lines in the second image to the individual activity display in the first image, you can see how the stretch of 15th Ave S is missing in the ST_AsMVT version.
I'm _decently_ certain that the underlying data for this activity is a point at the fork in the road on 15th Ave S and then another point down on E 62nd St, with no coordinates existing in between, because this person said they drew this route manually.
This is query I'm running to produce the tiles (where #{z}, #{x}, #{y}, and #{id} are passed-in variables):


WITH bounds AS (
SELECT ST_TileEnvelope(#{z}, #{x}, #{y}) AS geom
),
tile AS
(
SELECT ST_AsMVTGeom(ST_Transform(activities.geog::geometry, 3857), bounds.geom) AS geom, id
FROM activities, bounds
WHERE activities.geog::geometry && ST_Transform(bounds.geom, 4326)
AND user_id = #{id}
)
SELECT ST_AsMVT(tile, 'activities', 4096, 'geom', 'id') AS mvt
FROM tile;
- PostgreSQL 14.10
- PostGIS 3.4.0
Is there something about my query that's causing the data to be dropped and not displayed, or is this the expected result out of ST_AsMVTGeom/ST_AsMVT?
