Filter by partition number when the table is partitioned by computed column

7 votes
1 answer
318 views
I've created 2 identical tables partitioned by an integer column. In one of the tables the column is computed, in the other table the column is not computed. When I query the table with computed column filtering a single partition sorting with Clustered index (assuming that outcoming data is already sorted, so no additional sorting is required) it scans the entire table.
CREATE PARTITION FUNCTION pf_test(int) AS RANGE RIGHT FOR VALUES(1, 2, 3, 4)
GO
CREATE PARTITION SCHEME ps_test AS PARTITION pf_test ALL TO([PRIMARY])
GO
CREATE TABLE test_computed
(
    ID BIGINT NOT NULL,
    ID_C AS CAST(ID % 4 AS INT) PERSISTED,
    PRIMARY KEY CLUSTERED (ID, ID_C) ON ps_test(ID_C)
) ON ps_test(ID_C)
GO

CREATE TABLE test_not_computed
(
    ID BIGINT NOT NULL,
    ID_C INT NOT NULL,
    PRIMARY KEY CLUSTERED (ID, ID_C) ON ps_test(ID_C)
) ON ps_test(ID_C)
GO

INSERT INTO test_computed(ID)
SELECT TOP 1000000 ROW_NUMBER() OVER(ORDER BY GETDATE())
FROM sys.all_columns a
CROSS JOIN sys.all_columns b
GO

INSERT INTO test_not_computed(ID, ID_C)
SELECT TOP 1000000
    ROW_NUMBER() OVER(ORDER BY GETDATE()),
    ROW_NUMBER() OVER(ORDER BY GETDATE()) % 4
FROM sys.all_columns a
CROSS JOIN sys.all_columns b
GO
The data is identical, but the execution plans for each query is different.
SELECT TOP 100 *
FROM test_computed
WHERE $partition.pf_test(ID_C) = 1
ORDER BY ID DESC

SELECT TOP 100 *
FROM test_not_computed
WHERE $partition.pf_test(ID_C) = 1
ORDER BY ID desc

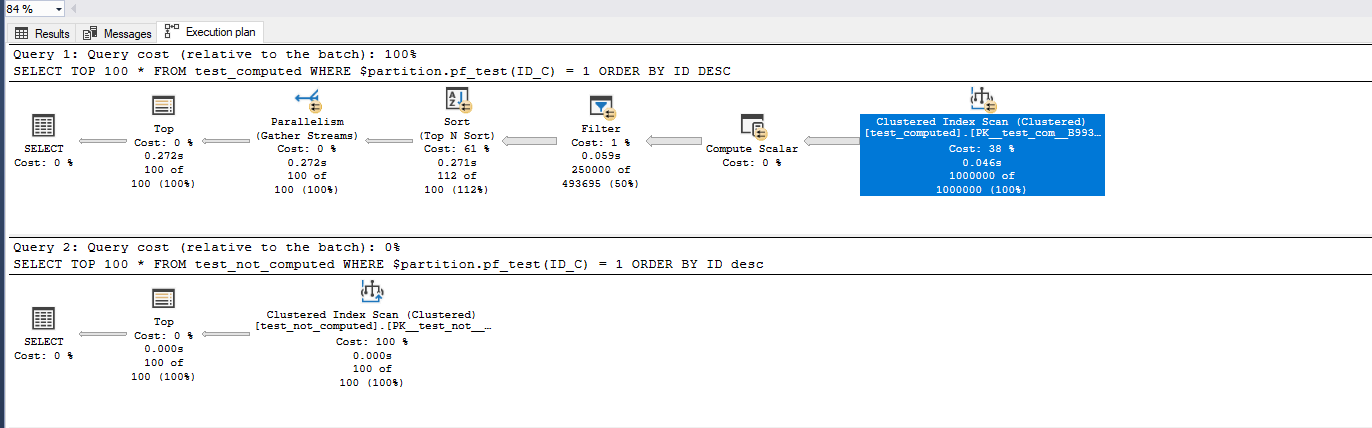

Plans The real table has billions of rows; we're using partitioning to avoid scanning the entire table. SQL Server version is > Microsoft SQL Server 2019 (RTM-CU26) (KB5035123) - 15.0.4365.2 (X64) > Mar 29 2024 23:02:47 Copyright (C) 2019 Microsoft Corporation > Developer Edition (64-bit) on Windows Server 2022 Standard 10.0 (Build 20348: )
Asked by Artashes Khachatryan (1533 rep)
Jun 7, 2024, 06:29 AM
Last activity: Jun 7, 2024, 06:11 PM
