Conceptual data modelling inheritance notation

0 votes
0 answers
47 views

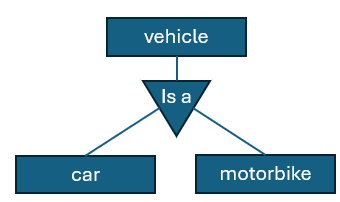

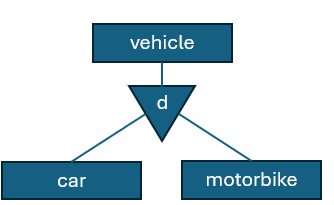

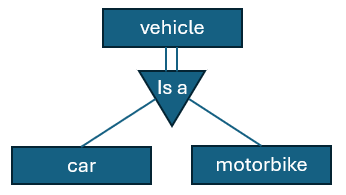

I am drawing the conceptual data model between vehicle, car and motorbike. As far as I know. **Hierarchy**. The simple "is a" feature. enter image description here **Disjunction** means that each ocurrence of superentity should only one subentity. Its notation is a "d" inside the triangle enter image description here **Total restriction** means that each ocurrence of superentity (vehicle) should be a subentity (car or motorbike). Its notation is double line. In this case Im not sure what to put inside the triangle. enter image description here Are all of them valid? Which of these notations are **incorrect**?
Asked by user69507 (1 rep)
Mar 11, 2025, 01:59 PM
