How does SQL Server's optimizer estimate the number of rows in a joined table?

14 votes
1 answer
2948 views

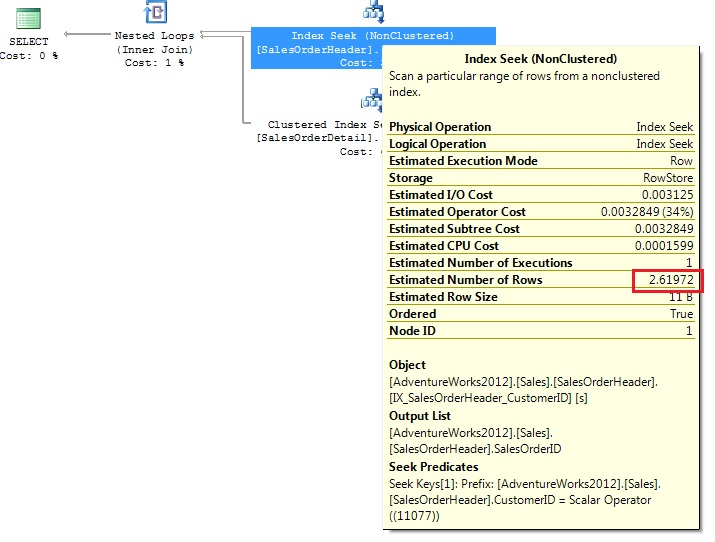

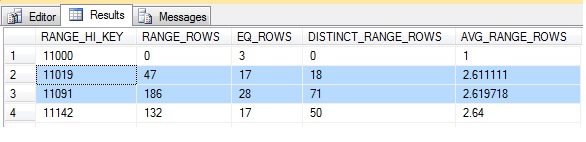

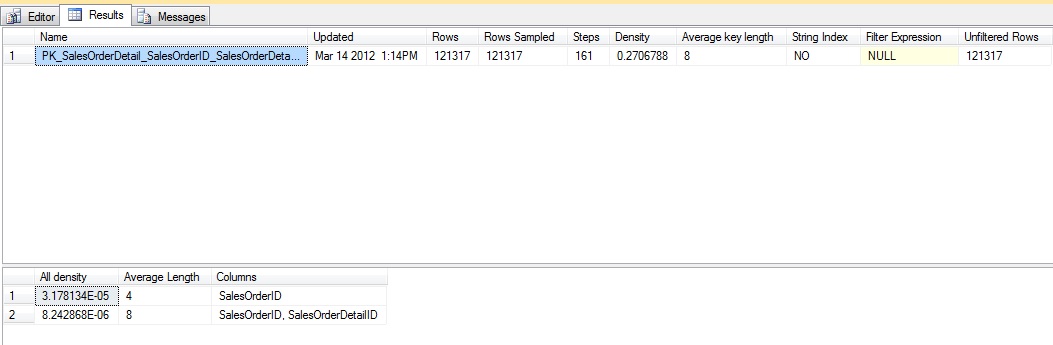

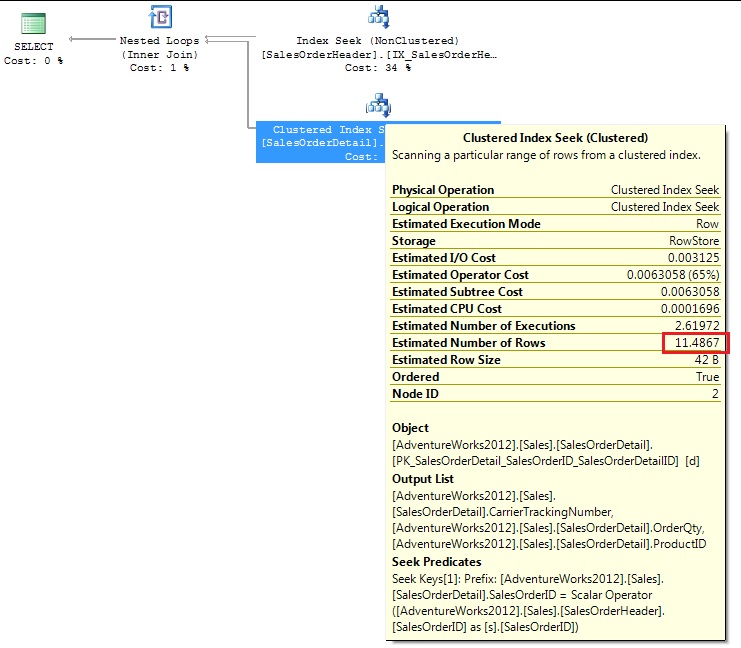

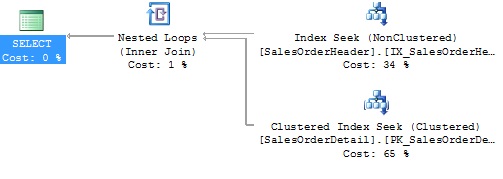

I am running this query in the AdventureWorks2012 database: SELECT s.SalesOrderID, d.CarrierTrackingNumber, d.ProductID, d.OrderQty FROM Sales.SalesOrderHeader s JOIN Sales.SalesOrderDetail d ON s.SalesOrderID = d.SalesOrderID WHERE s.CustomerID = 11077 If I look at the estimated execution plan, I see the following: enter image description here The initial index seek (top right) is using the IX_SalesOrderHeader_CustomerID index and searching on the literal 11077. It has an estimate of 2.6192 rows. enter image description here If I use DBCC SHOW_STATISTICS ('Sales.SalesOrderHeader', 'IX_SalesOrderHeader_CustomerID') WITH HISTOGRAM, it shows that the value 11077 is between the two sampled keys 11019 and 11091. enter image description here The average number of distinct rows between 11019 and 11091 is 2.619718, or rounded to 2.61972 which is the value of estimated rows shown for the index seek. The part I don't understand is the estimated number of rows for the clustered index seek against the SalesOrderDetail table. enter image description here If I run DBCC SHOW_STATISTICS ('Sales.SalesOrderDetail', 'PK_SalesOrderDetail_SalesOrderID_SalesOrderDetailID'): enter image description here So the density of the SalesOrderID (which I am joining on) is 3.178134E-05. That means that 1/3.178134E-05 (31465) equals the number of unique SalesOrderID values in the SalesOrderDetail table. If there are 31465 unique SalesOrderID's in the SalesOrderDetail, then with an even distribution, the average number of rows per SalesOrderID is 121317 (total number of rows) divided by 31465. The average is 3.85561 So if the estimated number of rows to be loop through is 2.61972, and the average to be returned in 3.85561, the I would think the estimated number of rows would be 2.61972 * 3.85561 = 10.10062. But the estimated number of rows is 11.4867. I think my understanding of the second estimate is incorrect and the differing numbers seems to indicate that. What am I missing?
Asked by 8kb (2639 rep)
Apr 2, 2015, 04:46 PM
Last activity: Jun 10, 2025, 08:26 AM
