Wvdial.conf dial errors. Raspberry Pi Model B Huawei E1820 3G Modem
1
vote
0
answers
1469
views
Linux is kicking my butt.
I have attempted to use
Ok. Probably not the best start I can get because of the errors on lines:
ttyUSB0: ATQ0 V1 E1 S0=0 -- ERROR
ttyUSB0: ATQ0 V1 E1 &C1 -- ERROR
ttyUSB0: ATQ0 V1 E1 &D2 -- ERROR
I figured that these errors could probably be the reason of the failure of my later attempt to use
From these outputs, I infer (or possibly wrongly assumed) that my Huawei E1820 has indeed been turned into a modem and is ready for
wvdial
for the first time to get 3G working on my Raspberry Pi, but things have not gone as expected. First of all, when I do a simple
sudo wvdialconf

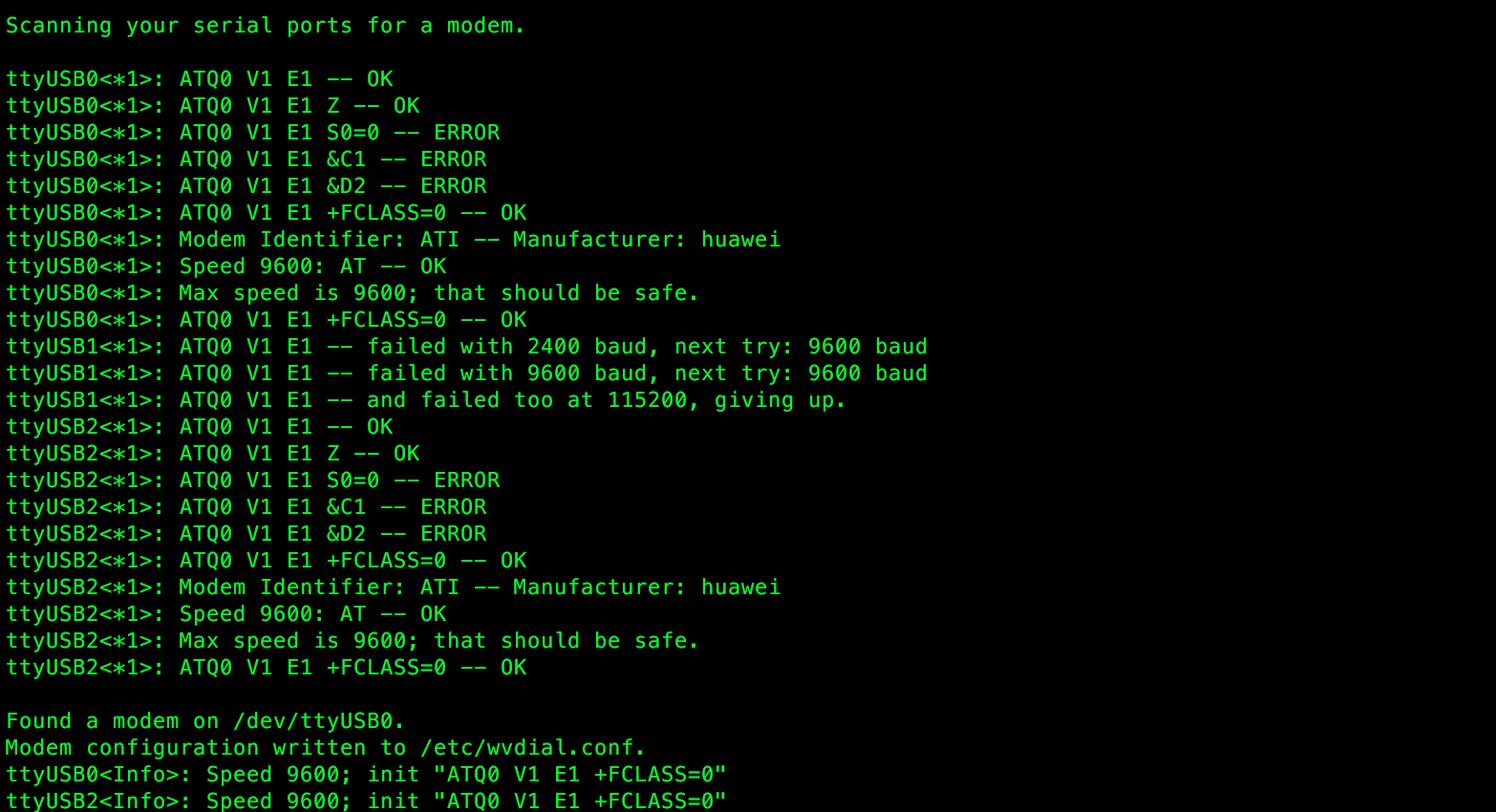

The scan gives me the following message:

wvdial
, which gives me the output as such:
--> WvDial: Internet dialer version 1.61
--> Initializing modem.
--> Sending: ATZ
ATZ
OK
--> Sending: ATQ0 V1 E1 +FCLASS=0
ATQ0 V1 E1 +FCLASS=0
OK
--> Sending: AT+CGDCONT=1, "IP", "internet"
AT+CGDCONT=1, "IP", "internet"
ERROR
--> Bad init string.
--> Initializing modem.
--> Sending: ATZ
ATZ
OK
--> Sending: ATQ0 V1 E1 +FCLASS=0
ATQ0 V1 E1 +FCLASS=0
OK
--> Sending: AT+CGDCONT=1, "IP", "internet"
AT+CGDCONT=1, "IP", "internet"
ERROR
--> Bad init string.
--> Initializing modem.
--> Sending: ATZ
ATZ
OK
--> Sending: ATQ0 V1 E1 +FCLASS=0
ATQ0 V1 E1 +FCLASS=0
OK
--> Sending: AT+CGDCONT=1, "IP", "internet"
AT+CGDCONT=1, "IP", "internet"
ERROR
--> Bad init string.
To provide some background on my configurations:
My wvdial.conf
looks like this:
[Dialer Defaults]
Init1 = ATZ
Init2 = ATQ0 V1 E1 +FCLASS=0
Modem Type = Analog Modem
ISDN = 0
New PPPD = yes
Phone = *99#
Modem = /dev/ttyUSB0
Username = username
Password = password
Baud = 9600
[Dialer E1820]
Init1 = ATZ
Init2 = ATQ0 V1 E1 +FCLASS=0
Init3 = AT+CGDCONT=1, "IP", "internet"
Stupid Mode = 1
Phone = *99#
New PPPD = yes
Modem = /dev/ttyUSB0
Username = username
Carrier Check = no
Password = password
Baud = 9600

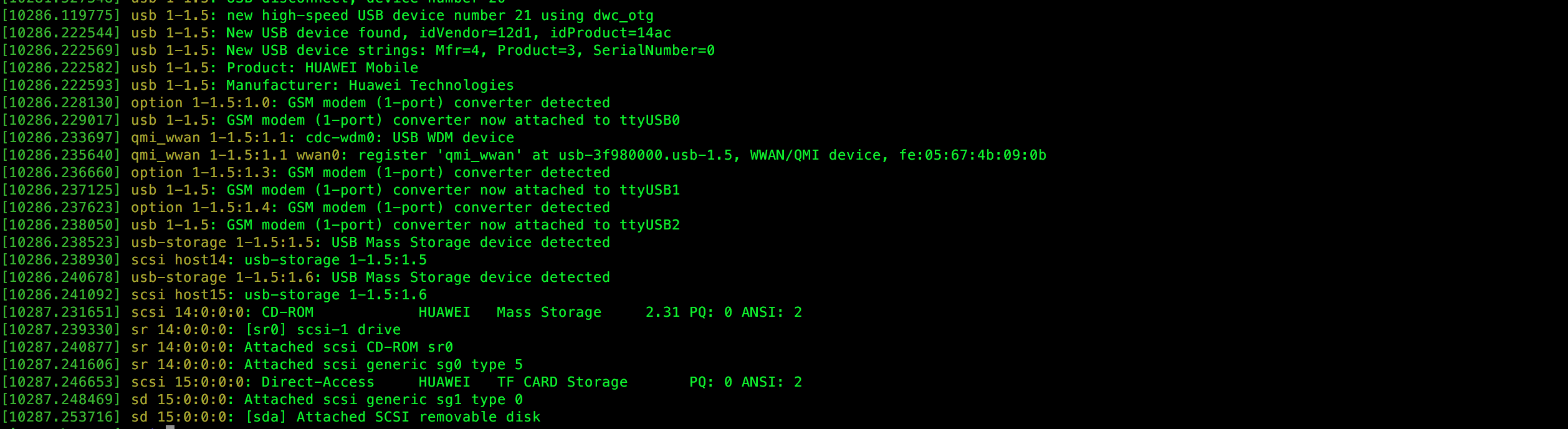

and my dmesg
logs look as such:

wvdial
dialing.
Additional Info:
The SIM Card I'm using has been disabled of SIM_PIN and is bought from Chunghwa Telecom, a major telecom company located in Taiwan.
***Updated***
Hi all, I have tried changing my configs in the /etc/wvdial.conf
file and now it looks as such:
[Dialer E1820]
Init1 = ATZ
Init2 = ATQ0 V1 E1 +FCLASS=0
Stupid Mode = 1
Modem Type = Analog Modem
ISDN = 0
Phone = *99#
New PPPD = yes
Modem = /dev/gsmmodem
Baud = 460800
Username = username
Carrier Check = no
Password = password
Now when I run wvdial
, I get such error:
--> WvDial: Internet dialer version 1.61
--> Initializing modem.
--> Sending: ATZ
ATZ
OK
--> Sending: ATQ0 V1 E1 +FCLASS=0
ATQ 0 V1 E1 +FCLASS=0
OK
--> Modem initialized.
--> Sending: ATD*99#
--> Waiting for carrier.
ATD*99#
ERROR
--> Invalid dial command.
--> Disconnecting at Sat Aug 20 08:53:35 2016
I suspect that the reason for this is either:
* the modem is not working as expected, or
* the parameter Phone in the /etc/wvdial.conf
file is not properly assigned.
Hope I get this to work. Any ideas out there?
Asked by Web
(11 rep)
Aug 20, 2016, 06:09 AM
Last activity: Sep 26, 2016, 11:15 PM
