pfSense + Nginx proxy and Real user IP

1 vote
2 answers
5568 views

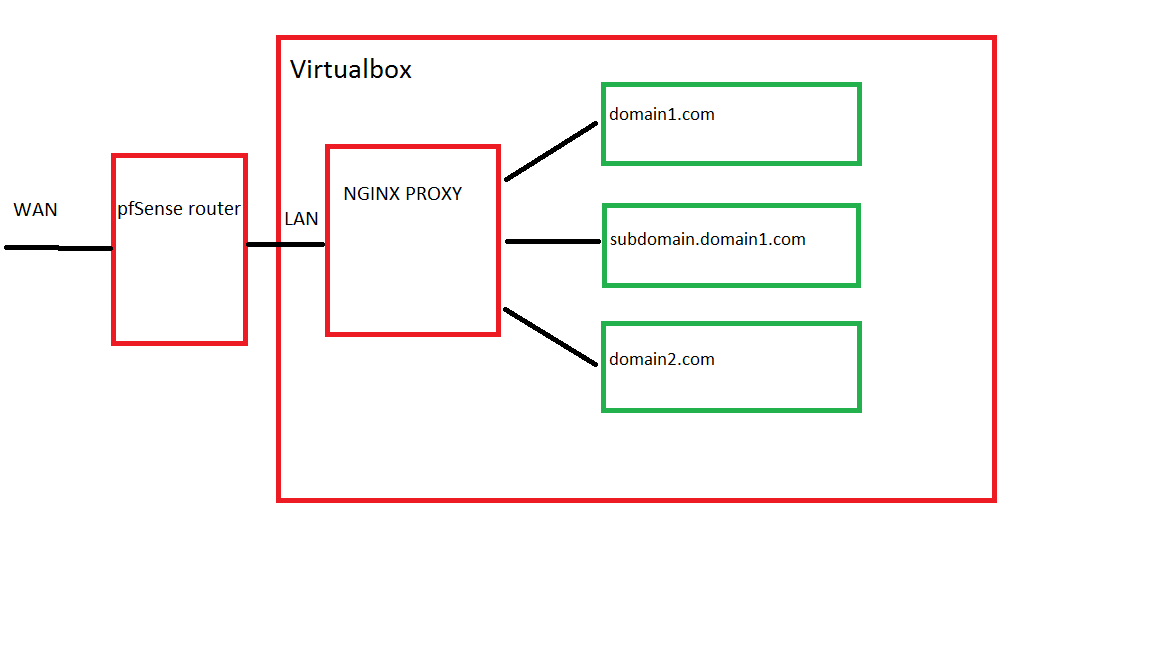

Ok, so I have 1 server with pfSense and many virtual servers. I'm using Nginx upstream functionality to run multiplies WEB servers on same public IP. Of course I need to know REAL users IP not Nginx proxy which is 192.168.2.2, but after switching to pfSense (recently had simple consumer router) web servers can't see real users IP. I have tried to change various settings in System / Advanced / Firewall & NAT like: NAT Reflection mode for port forwards Enable automatic outbound NAT for Reflection Also in Firewall / NAT / Outbound tried every mode, nothing helped still every user have IP of my Proxy server. So how to disable masquarading, or how to pass real client IP. **Update** Ok, so it seams problem is with subdomains not domains. Situation now: If client go to domain.com - everything is fine backend server can see real clinet IP If client go to subdomain.domain.com - backend server see proxy server IP All domains A records points to external IP, then pfSense forward 80 port to proxy, then proxy depending on domain forward to corresponding internal server. I have 2 physical servers, 1 - pfSense router and another with virtualbox running many VM's in this example 4 VM's enter image description here Another one interesting thing, when i try to reach troublesome subdomain.domain1.com from inside local network I get this: enter image description here Again, no problems with domain1.com and domain2.com and so on...
Asked by RomkaLTU (111 rep)
Aug 26, 2016, 05:10 PM
Last activity: Jun 20, 2025, 11:01 AM
