I have a old DVD/HDD recorder (Panasonic DMR-EH58) with RCA inputs & outputs etc. I want to recover all the recordings off its HDD. The HDD is a 2008 ATA/IDE 7200RPM Hitachi deskstar Model no:HDP725025GLAT80 250 GB has a DVD drive.
It has been used at a conference center for many years recording camera RCA input. It is in good condition but it is outdated so I am trying to copy the recordings to a computer. I also would like to recover the deleted files if possible as they would not have been overwritten yet.
I have borrowed a universal drive adapter and tried to mount it on both Windows 8.1 and ChaletOS Linux (Ubuntu based XFCE type distro). Windows showed it as a grayed F: drive and Linux did not auto mount it either.

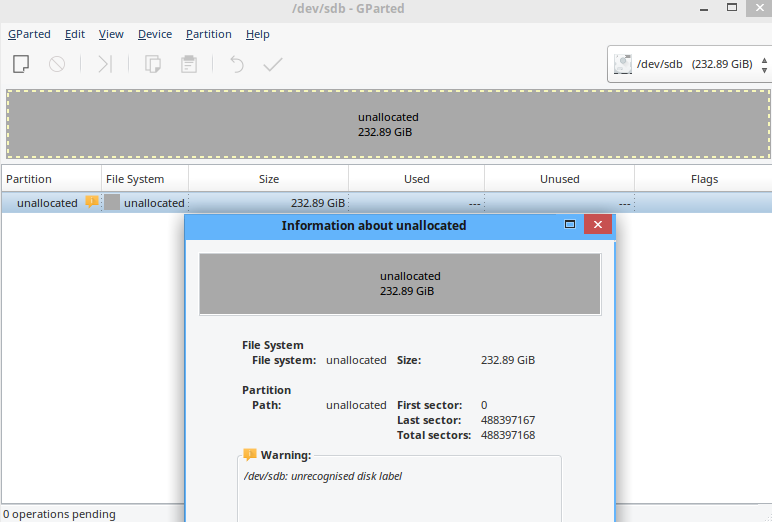

GParted shows it as "/dev/sdb: unrecognised disk label":
Command line attempts follow:
joel@joel-laptop:~$ mount dev/sdb
mount: dev/sdb: No such file or directory
joel@joel-laptop:~$ sudo mount /dev/sdb /mnt/usbdisk
[sudo] password for joel:
mount: special device /dev/sdb does not exist
joel@joel-laptop:~$ mount dev/sdb
mount: dev/sdb: No such file or directory
joel@joel-laptop:~$ ls -alh /dev/disk/by-path/
total 0
drwxr-xr-x 2 root root 160 Apr 30 22:05 .
drwxr-xr-x 6 root root 120 Apr 30 18:41 ..
lrwxrwxrwx 1 root root 9 Apr 30 21:31 pci-0000:00:1f.2-ata-1 -> ../../sda
lrwxrwxrwx 1 root root 10 Apr 30 21:31 pci-0000:00:1f.2-ata-1-part1 -> ../../sda1
lrwxrwxrwx 1 root root 10 Apr 30 21:31 pci-0000:00:1f.2-ata-1-part2 -> ../../sda2
lrwxrwxrwx 1 root root 10 Apr 30 21:31 pci-0000:00:1f.2-ata-1-part3 -> ../../sda3
lrwxrwxrwx 1 root root 10 Apr 30 21:31 pci-0000:00:1f.2-ata-1-part5 -> ../../sda5
lrwxrwxrwx 1 root root 10 Apr 30 21:31 pci-0000:00:1f.2-ata-1-part6 -> ../../sda6
- Root directory is dev/sda5
- Swap is dev/sda6
- Windows is dev/sda1
- Spare data partition is dev/sda2
Looks like an unsupported file system error...
