Support for multiple sample rates during playing and recording in an application like Audacity

0 votes
1 answer
2226 views

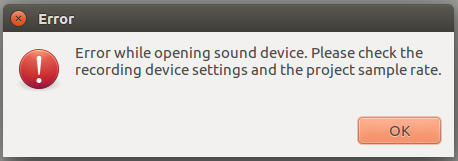

This is how I have defined my soundcard's channels in .asoundrc: pcm.!default { type plug slave { pcm "hw:1,0" } } ctl.!default { type hw card 1 } pcm_slave.usb_1 { pcm "hw:1,0" rate 44100 channels 8 buffer_size 4096 period_size 1024 } pcm.outch1 { type dshare ipc_key 1111 slave usb_1 bindings [ 0 ] hint.description "USB output/playback channel 1 (from output port 1)" } pcm.inch1 { type dsnoop ipc_key 1111 slave usb_1 bindings [ 0 ] hint.description "USB input/capture channel 1 (from input port 1)" } While the above **works fine with aplay and arecord** functions/commands in the terminal, trying to play a 8k audio sample with Audacity throws the following error : Audacity Error When I check the Audio device info option in Help menu (Help-->Audio device option), I see the following: Device ID: 2 Device name: USB Audio (hw:1,0) Host name: ALSA Recording channels: 8 Playback channels: 8 Low Recording Latency: 0.008707 Low Playback Latency: 0.008707 High Recording Latency: 0.034830 High Playback Latency: 0.034830 Supported Rates: 44100 48000 88200 96000 ============================== Device ID: 10 Device name: outch1 Host name: ALSA Recording channels: 0 Playback channels: 1 Low Recording Latency: -1.000000 Low Playback Latency: 0.023220 High Recording Latency: -1.000000 High Playback Latency: 0.023220 Supported Rates: 44100 ============================== Device ID: 11 Device name: inch1 Host name: ALSA Recording channels: 1 Playback channels: 0 Low Recording Latency: 0.023220 Low Playback Latency: -1.000000 High Recording Latency: 0.023220 High Playback Latency: -1.000000 Supported Rates: ============================== As we can see, 8000 or 16000 is not a Supported Rate from the audio device info. So, it's quite clear why the error is thrown. So, how and where can I add/set (modify my .asoundrc maybe?) these sample rates so that any application (including Audacity of course) can support playback and recording of audio files at any desired sample rate.
Asked by skrowten_hermit (791 rep)
Aug 2, 2017, 09:04 AM
Last activity: Aug 3, 2017, 06:56 AM
