Trying to disable some Bluetooth features on RPi3

3 votes
1 answer
5794 views

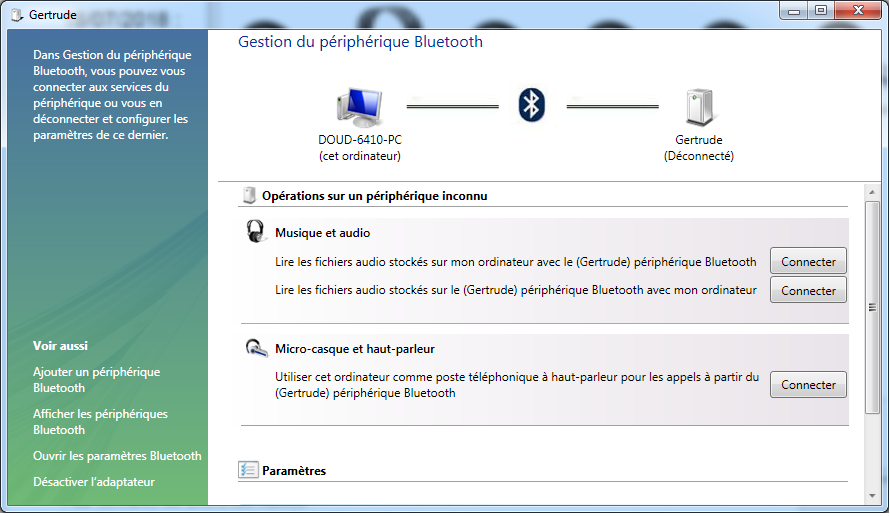

I'm trying to make my RPi3 to be a bluetooth sink. My problem is that when I'm trying to connect my Windows 7 Laptop to my RPi Bluetooth sink, it is displayed like that : Bluetooth Issue Sorry, it's in french. It allows to create 3 connections : * one for the Rpi to be connected as a microphone * one for the Rpi to connected as headphone (option that I only want) * one the Rpi to be a audio file server **The info :** $ sudo bluetoothctl [bluetooth]# show Controller B8:27:EB:XX:XX:XX Name: Gertrude Alias: Gertrude Class: 0x20041c Powered: yes Discoverable: yes Pairable: yes UUID: Headset AG (00001112-0000-1000-8000-00805f9b34fb) UUID: Generic Attribute Profile (00001801-0000-1000-8000-00805f9b34fb) UUID: A/V Remote Control (0000110e-0000-1000-8000-00805f9b34fb) UUID: Generic Access Profile (00001800-0000-1000-8000-00805f9b34fb) UUID: PnP Information (00001200-0000-1000-8000-00805f9b34fb) UUID: A/V Remote Control Target (0000110c-0000-1000-8000-00805f9b34fb) UUID: Audio Sink (0000110b-0000-1000-8000-00805f9b34fb) UUID: Audio Source (0000110a-0000-1000-8000-00805f9b34fb) Modalias: usb:v1D6Bp0246d052B Discovering: no The Bluetooth config file: $ cat /etc/bluetooth/main.conf [General] # Default adapter name # Defaults to 'BlueZ X.YZ' #Name = BlueZ # Default device class. Only the major and minor device class bits are Name = # considered. Defaults to '0x000000'. #Class = 0x000100 Class = 0x20041c # How long to stay in discoverable mode before going back to non-discoverable # The value is in seconds. Default is 180, i.e. 3 minutes. # 0 = disable timer, i.e. stay discoverable forever DiscoverableTimeout = 0 # How long to stay in pairable mode before going back to non-discoverable # The value is in seconds. Default is 0. # 0 = disable timer, i.e. stay pairable forever #PairableTimeout = 0 # Automatic connection for bonded devices driven by platform/user events. # If a platform plugin uses this mechanism, automatic connections will be # enabled during the interval defined below. Initially, this feature # intends to be used to establish connections to ATT channels. Default is 60. #AutoConnectTimeout = 60 # Use vendor id source (assigner), vendor, product and version information for # DID profile support. The values are separated by ":" and assigner, VID, PID # and version. # Possible vendor id source values: bluetooth, usb (defaults to usb) #DeviceID = bluetooth:1234:5678:abcd # Do reverse service discovery for previously unknown devices that connect to # us. This option is really only needed for qualification since the BITE tester # doesn't like us doing reverse SDP for some test cases (though there could in # theory be other useful purposes for this too). Defaults to 'true'. #ReverseServiceDiscovery = true # Enable name resolving after inquiry. Set it to 'false' if you don't need # remote devices name and want shorter discovery cycle. Defaults to 'true'. #NameResolving = true # Enable runtime persistency of debug link keys. Default is false which # makes debug link keys valid only for the duration of the connection # that they were created for. #DebugKeys = false # Restricts all controllers to the specified transport. Default value # is "dual", i.e. both BR/EDR and LE enabled (when supported by the HW). # Possible values: "dual", "bredr", "le" #ControllerMode = dual # Enables Multi Profile Specification support. This allows to specify if # system supports only Multiple Profiles Single Device (MPSD) configuration # or both Multiple Profiles Single Device (MPSD) and Multiple Profiles Multiple # Devices (MPMD) configurations. # Possible values: "off", "single", "multiple" #MultiProfile = off # Permanently enables the Fast Connectable setting for adapters that # support it. When enabled other devices can connect faster to us, # however the tradeoff is increased power consumptions. This feature # will fully work only on kernel version 4.1 and newer. Defaults to # 'false'. #FastConnectable = false # Default privacy setting. # Enables use of private address. # Possible values: "off", "device", "network" # "network" option not supported currently # Defaults to "off" # Privacy = off [Policy] # # The ReconnectUUIDs defines the set of remote services that should try # to be reconnected to in case of a link loss (link supervision # timeout). The policy plugin should contain a sane set of values by # default, but this list can be overridden here. By setting the list to # empty the reconnection feature gets disabled. #ReconnectUUIDs=00001112-0000-1000-8000-00805f9b34fb,0000111f-0000-1000-8000-00805f9b34fb,0000110a-0000-1000-8000-00805f9b34fb # ReconnectAttempts define the number of attempts to reconnect after a link # lost. Setting the value to 0 disables reconnecting feature. #ReconnectAttempts=7 # ReconnectIntervals define the set of intervals in seconds to use in between # attempts. # If the number of attempts defined in ReconnectAttempts is bigger than the # set of intervals the last interval is repeated until the last attempt. #ReconnectIntervals=1,2,4,8,16,32,64 # AutoEnable defines option to enable all controllers when they are found. # This includes adapters present on start as well as adapters that are plugged # in later on. Defaults to 'false'. AutoEnable=true I have changed the Bluetooth class thanks to : , remove and add again the "*Windows Bluetooth device*", but it has no effect. So I noticed that the bluetoothctl / show command shows UUID capabilities, corresponding to some features that I don't want. 0000110a-0000-1000-8000-00805f9b34fb : Audio Source 00001800-0000-1000-8000-00805f9b34fb : Generic Access 00001801-0000-1000-8000-00805f9b34fb : Generic Attribute But I have absolutely no idea how to disabled these features. Any ideas?
Asked by DioZ (71 rep)
Jul 20, 2018, 02:42 PM
Last activity: Apr 24, 2024, 04:35 PM
