When i boot my RHL vm into pxe mode by changing it to boot from the network, the connection times out
From the sequence i read of the PXE process described [here]https://docs.oracle.com/cd/E24628_01/em.121/e27046/appdx_pxeboot.htm#EMLCM12199
it seems the dhcp server is not replying to the request.
The DHCP server is on the same instance as the TFTP service and the DHCP service works to provide IPs to the VM's themselves. TFTP service wasnt running but i started it and got the same error.
Is there any other information i might provide to get an answer?

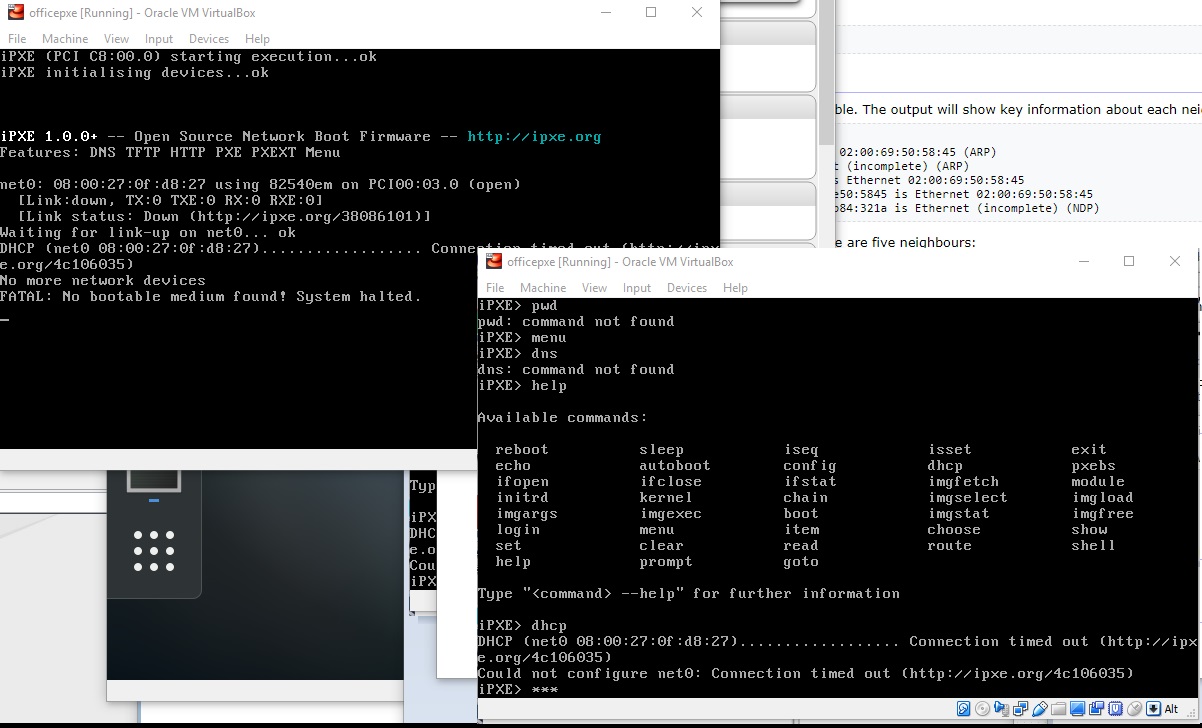

here is a screenshot of the first error and also the dhcp reference when i tried to use the dhcp command in the pxe menu:
Update:

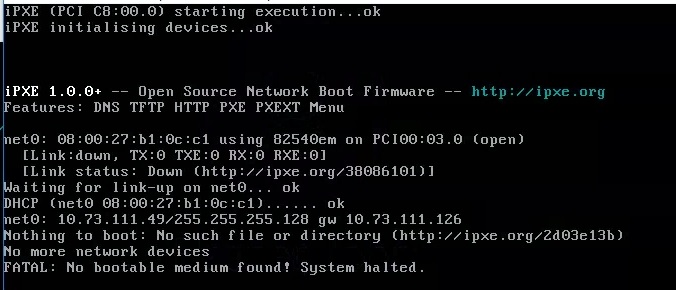

the dhcp server is assigning an IP now. I know this because the net0: IP is in the range of the DHCP service.
So, the error is referencing nothing to boot but i have the pxelinux.0 file in the correct location and the DHCP tftp configuration is set to. Not sure what the problem is now.
Update 2 This continues to evolve as i apply different solutions. I found other users with the same error had applied the Oracle Virtualbox extension pack because this is required for the PXE usage. I think this resolved one issue and exposed another. After installing that extension pack to my Virtualbox install i now get a TFTP open Timeout:
i checked the status of the tftp server with systemctl status tftp.socket and it shows active.
Not sure where the disconnect is now.
it seems the dhcp server is not replying to the request.
The DHCP server is on the same instance as the TFTP service and the DHCP service works to provide IPs to the VM's themselves. TFTP service wasnt running but i started it and got the same error.
Is there any other information i might provide to get an answer?
here is a screenshot of the first error and also the dhcp reference when i tried to use the dhcp command in the pxe menu:
Update:
the dhcp server is assigning an IP now. I know this because the net0: IP is in the range of the DHCP service.
So, the error is referencing nothing to boot but i have the pxelinux.0 file in the correct location and the DHCP tftp configuration is set to. Not sure what the problem is now.

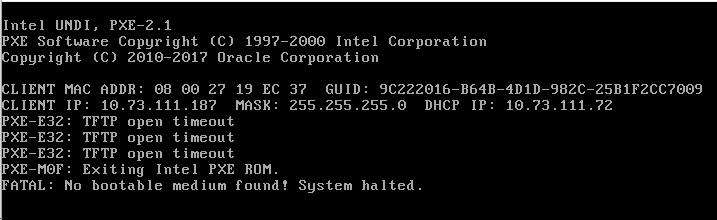

Update 2 This continues to evolve as i apply different solutions. I found other users with the same error had applied the Oracle Virtualbox extension pack because this is required for the PXE usage. I think this resolved one issue and exposed another. After installing that extension pack to my Virtualbox install i now get a TFTP open Timeout:
i checked the status of the tftp server with systemctl status tftp.socket and it shows active.
Not sure where the disconnect is now.
