drbd data: failed to create debugfs dentry

1 vote
1 answer
741 views

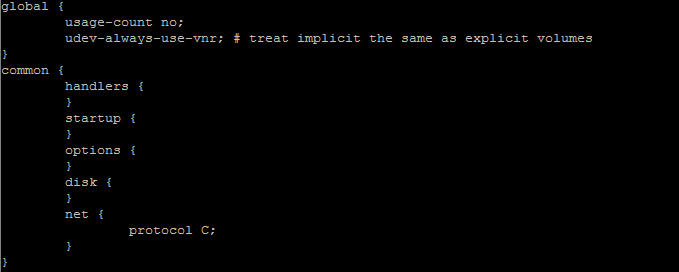

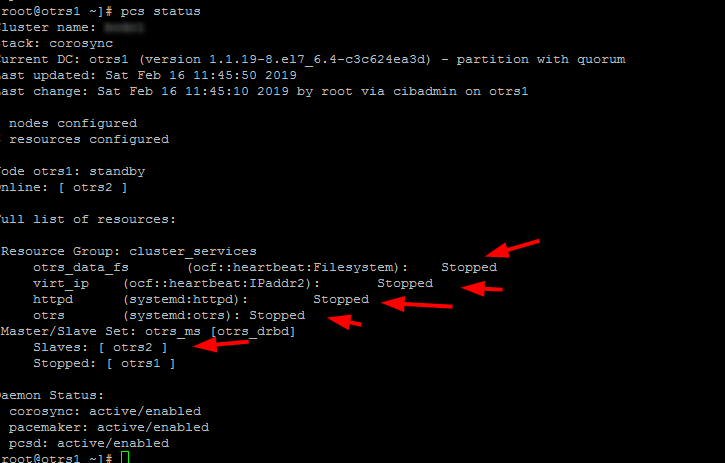

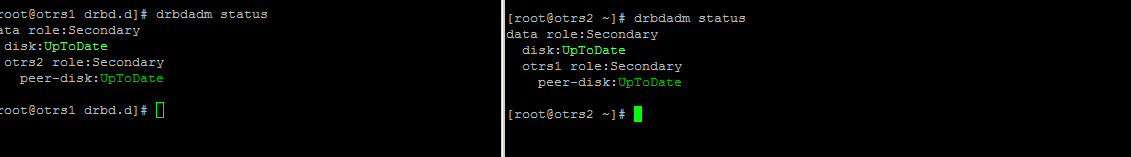

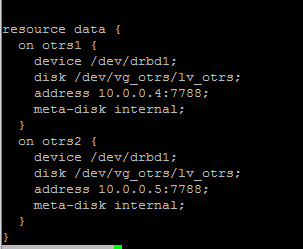

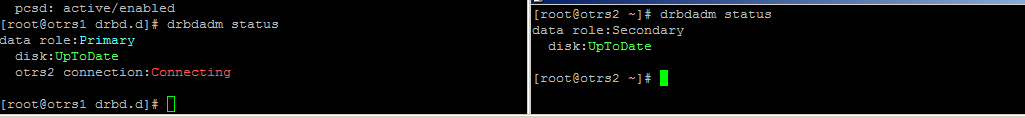

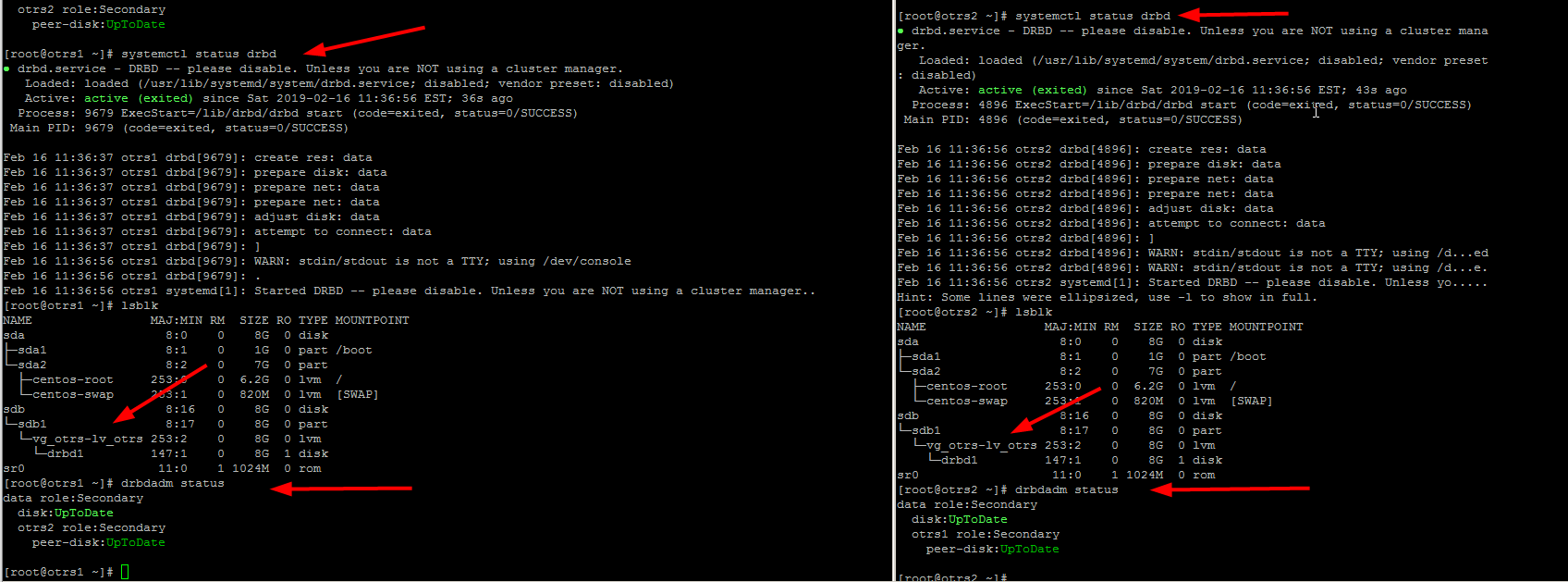

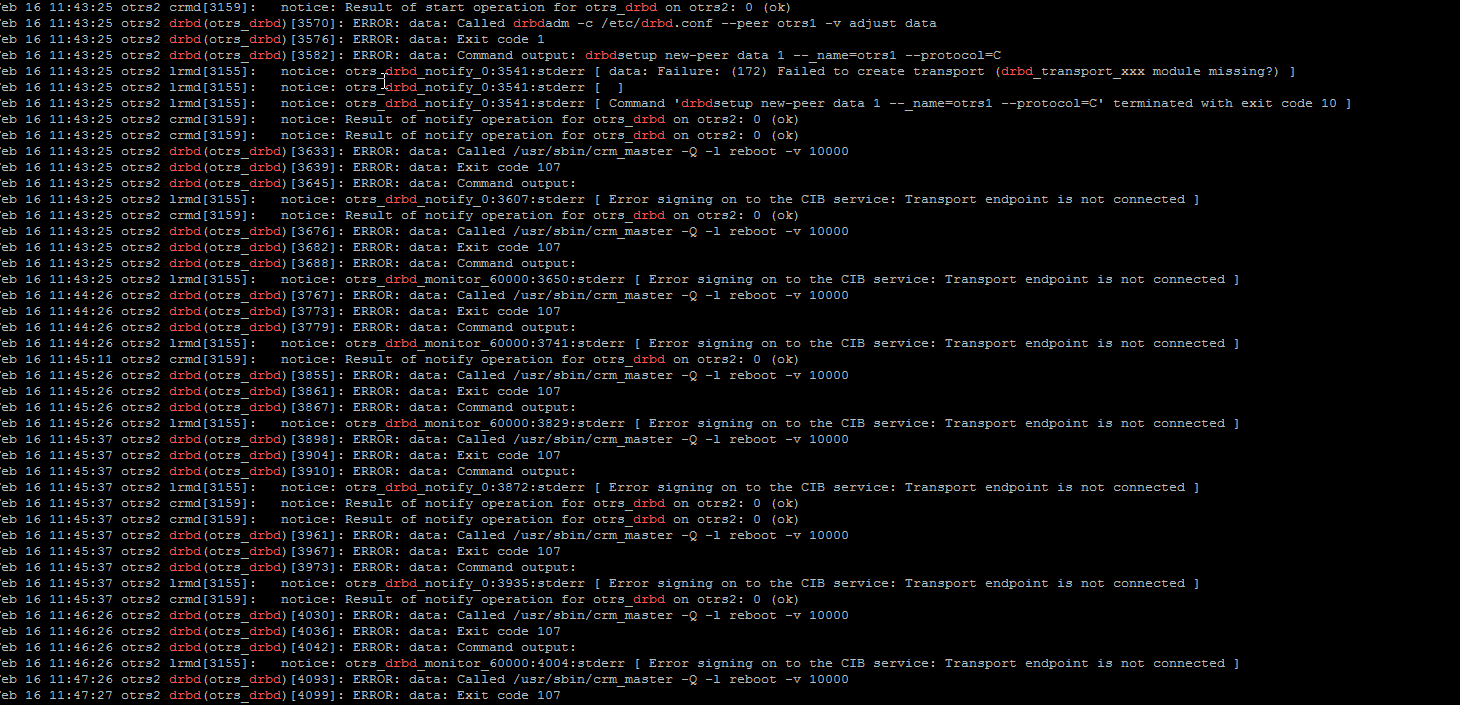

CentOS 7 kernel release 3.10.0-957.el7.x86_64 drbd 9.0.16-1 Have one resource configured. drbd servicve is not enabled to start at boot time. I reboot the two nodes. One the first node I run systemctl start drbd and get > "DRBD's startup script waits for the peer node(s) to appear. On second now when I run systemctl start drbd I get: > drbd data: failed to create debugfs dentry # EDIT # When I run drbdadm up resource_name on both nodes with drbd service disable and not started I get the two nodes in Secondary/UpToDate state which is good. # EDIT2 # global_common.conf enter image description here data.res enter image description here All resource are started on otrs1. It has the Primary role bot shows connecting for the remote node, and on the remote node I don't see the other node at all. enter image description here When I run pcs cluster stop --all and next run drbdadm up data on both nodes all looks good. enter image description here Now when I mount /dev/drbd1 /opt/otrs on one of the nodes it gets auto promoted to the primary role. enter image description here Now when I umount and bring the reource down on both nodes and re-run drbdadm status I get obviously No currently configured DRBD found. Now, exactly the same happens when I run systemctl start drbd on both. On first node the output appears to hand but I guess it waits for the other node to start its services as well, right ? enter image description here After a reboot, the cluster and resources start on node 1 but after putting it into standby mode, resources are not moved: enter image description here And here's what I see journalctl -xe enter image description here # EDIT3 # ok that's odd enter image description here I was loading the drbd kernel module at boot via /etc/modules-load.d/drbd.conf on both nodes but disabled it. Rebooted and to my suprise on one node it's loaded but without drbd_transport_tcp, is pacemaker loading the drbd kernel_module? I can't imagine that. enter image description here Now when I systemctl disable pcsd; systemctl disable pacemaker; systemctl disable corosync on both node and reboot an do lsmod | grep drbd it returns no results. I don't get it :(
Asked by blabla_trace (385 rep)
Feb 14, 2019, 08:54 AM
Last activity: Feb 19, 2019, 05:32 PM
