SSH Tunnel/Reverse Tunnel Question

1 vote
0 answers
219 views

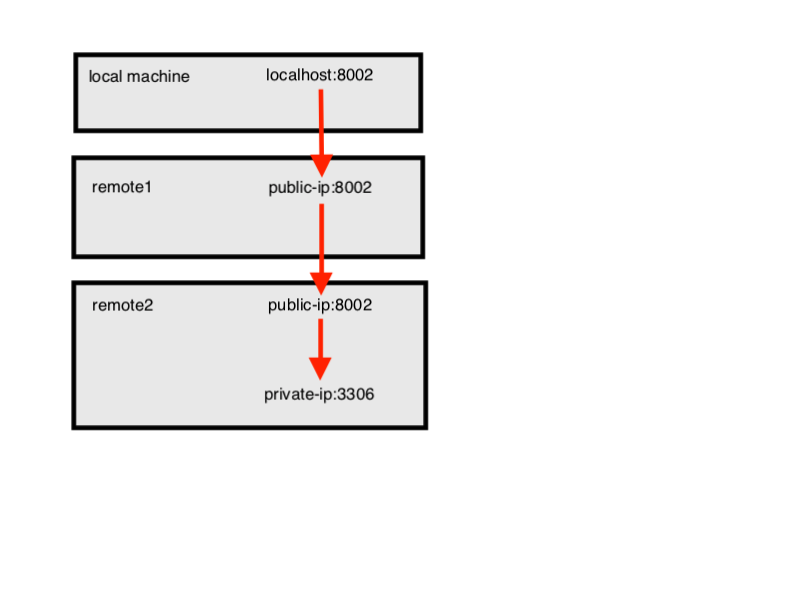

I am attempting to daisy chain tunnels/ports to access mysql on a secured server. Without opening up iptables, I would like to, from my local machine: mysql -uadmin_user -p -hlocalhost:8002 and have it jump ssh tunnel connections through to the servers ultimately to remote2.private-ip:3306 as described in my set-up screenshot. My set up is like this: Server-Setup I had been trying this for a while, and I gave up with the 3 way hop for now and I have been attempting to get it working with 1 and remote 2 connected first. I still can't get that to work yet either. Then I went to remote2 and I can't get the tunnel to work on remote2-private either. Initially I used remote2: ssh -f -N -M -S ~/.ssh/sockets/remote2-private-tunnel.sock -t -A -R 8002:localhost:3306 user@remote2.private-ip And then I tried: remote2:ssh -f -N -R 8002:remote2.private-ip:3306 remote2.public-ip And with both of those, I cannot from remote2: remote2: mysql -uadmin_user -p -hremote2.public-ip:8002 I can tell it is not getting to the mysql server because I get the error ERROR 2005 (HY000): Unknown MySQL server host 'remote2.public-ip:8002' (0) instead of something similar like: ERROR 1045 (28000): Access denied for user 'admin_user'@'remote2.private-ip' (using password: YES) I feel like I am just overwhelmed here and am missing something simple that I should be seeing. Any help would be much appreciated. I should note, SSH keys are being used, and connectivity is established ssh'ing to them normally. Also, normal mysql connection to remote2.private-ip is also working. Also remote1 and remote2 are both joined on private networking and mysql from remote1.private-ip CLI to host remote2.private-ip works as well.
Asked by Joseph Michael (11 rep)
Jul 8, 2019, 04:06 PM
Last activity: Jul 8, 2019, 04:48 PM
