How to configure DHCP server in Virtualbox CentOS7 VM for Cobbler PXE boot?

0 votes
1 answer
1394 views
                          I am very new to Virtual Box and try to emulate cobber  PXE boot network installation in virtual box


Trying to configure VM1 as PXE/DHCP server and make VM2 as client to get the IP from VM1 DHCP server on network boot for network installation.


But keep on getting IP from host machine where virtual box installed. because of that VM2 could not find the pxeboot files that is present in the VM1.

**VM1 dhcp status snippet:**

    Listening on LPF/enp0s3/08:00:27:86:b1:c6/192.168.43.0/24
    Aug 09 19:03:23 localhost.localdomain dhcpd: Sending on   LPF/enp0s3/08:00:27:86:b1:c6/192.168.43.0/24
    Aug 09 19:03:23 localhost.localdomain dhcpd: Sending on   Socket/fallback/fallback-net
    Aug 09 19:03:23 localhost.localdomain systemd[1] : Started DHCPv4 Server Daemon.

**VM1 dhcp conf file**


    ddns-update-style interim;

    allow booting;
    allow bootp;

    ignore client-updates;
    set vendorclass = option vendor-class-identifier;

    option pxe-system-type code 93 = unsigned integer 16;

    subnet 192.168.43.0 netmask 255.255.255.0 {
         option routers             192.168.43.1;
         option domain-name-servers 192.168.43.1;
         option subnet-mask         255.255.255.0;
         range dynamic-bootp        192.168.43.100 192.168.43.254;
         default-lease-time         21600;
         max-lease-time             43200;
         next-server                192.168.43.146;
         class "pxeclients" {
              match if substring (option vendor-class-identifier, 0, 9) = "PXEClient";
              if option pxe-system-type = 00:02 {
                      filename "ia64/elilo.efi";
              } else if option pxe-system-type = 00:06 {
                      filename "grub/grub-x86.efi";
              } else if option pxe-system-type = 00:07 {
                      filename "grub/grub-x86_64.efi";
              } else if option pxe-system-type = 00:09 {
                      filename "grub/grub-x86_64.efi";
              } else {
                      filename "pxelinux.0";
              }
         }

    }

    # group for Cobbler DHCP tag: default

    group {
        host centostest.mydomain.com-net0 {
            hardware ethernet 08:00:27:7f:aa:f1;
            fixed-address 192.168.43.120;
            option host-name "centostest.mydomain.com";
            option subnet-mask 255.255.255.0;
            option routers 192.168.43.1;
            filename "/pxelinux.0";
            next-server 192.168.43.146;
        }
    }

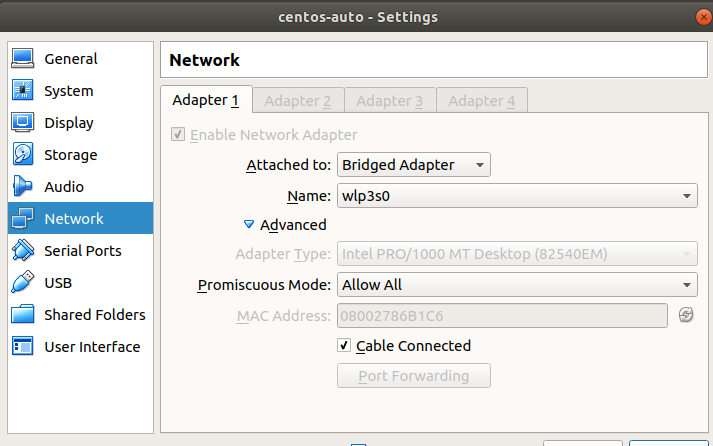

**VM1 adapter setting - server**

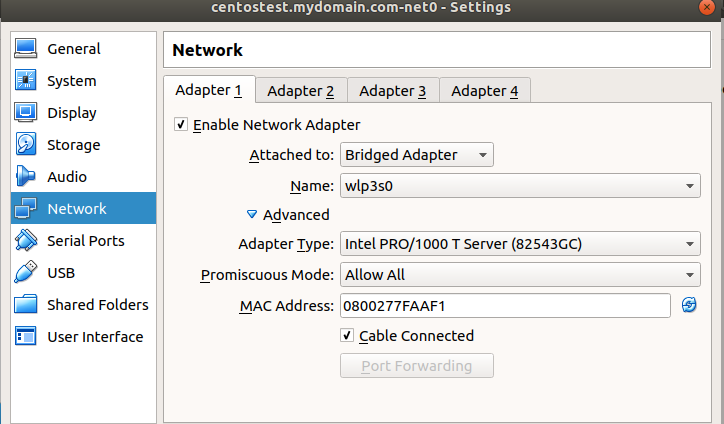

**VM2 Adapter setting - client**

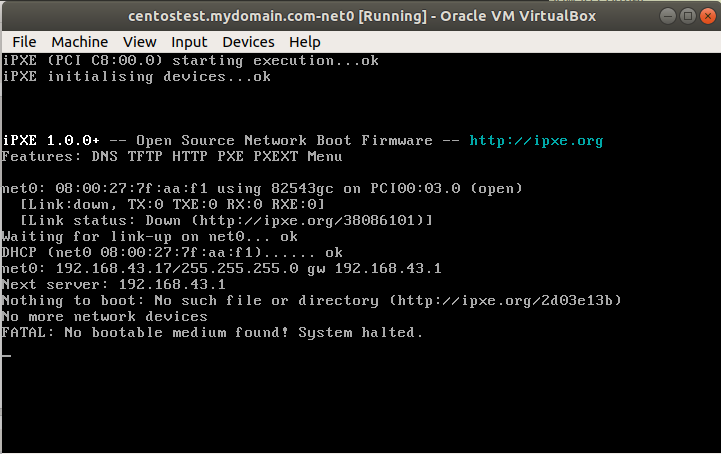

**Upon network boot of VM2, it gets IP 192.168.43.17 instead of 192.168.43.120 as provided in the vm1 dhcp conf file**




How to fix this issue?




Asked by Mohan (143 rep)
Aug 9, 2019, 02:03 PM
Last activity: Sep 18, 2019, 11:29 AM
