Process with 1% CPU usage causing load average of 1.5

0 votes
3 answers
2035 views

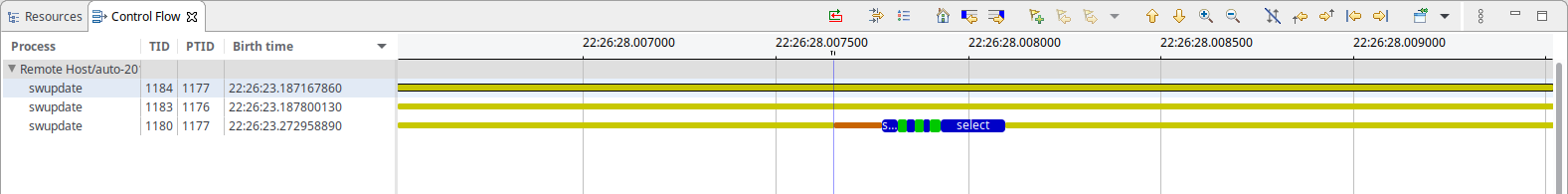

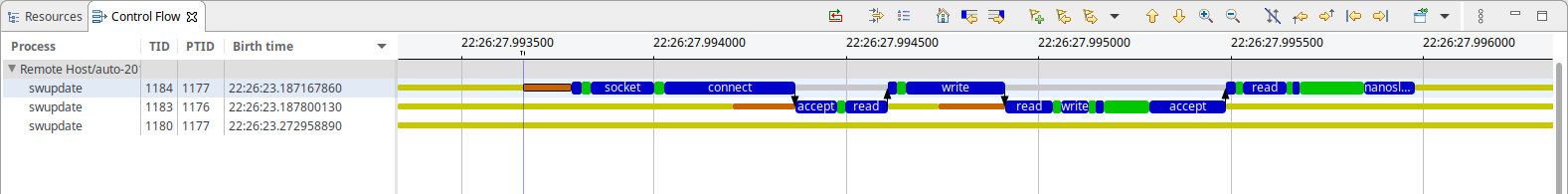

We recently observed a high load average of about 1.5 on our embedded system, even though pretty much all processes are supposedly sleeping (according to htop). The system in question is a dual-core Cortex-A9 running a realtime Linux kernel (4.14.126) built using buildroot. We are using initramfs for our root filesystem and there is no swap, so there is definitely **no disk I/O** during normal operation. After a bit of digging, we found out that the load is caused by a program called [swupdate](https://sbabic.github.io/swupdate/swupdate.html) , which provides us with a convenient web interface for software updates (and we would very much like to continue using that). When i use time to estimate the average cpu-usage of that application (by calculating *(user+sys)/real*), i get a value of only about 1%, which doesn't make much sense considering the load average of 1.5. I know that the load average also includes processes in the TASK_UNINTERRUPTIBLE state, which don't contribute to cpu usage. What i don't understand is why any of the threads/processes of that application would ever be in that state. To further analyze the situation i have captured a kernel trace using [lttng](https://lttng.org/) , which shows that the only thing swupdate does is this (every 50ms): enter image description here and this (every 100ms): enter image description here As you can see, there's a little bit of what appears to be socket-based IPC, and a select waiting for *something*. In the IPC case, one thread appears to be mostly blocking in nanosleep(), while the other is blocking in accept(), neither of which should consume any system resources as far as i'm aware. FYI: the time base for both screenshots is the same, and the IPC takes approx. 500-600µs in total (which, considering the interval of 50ms, fits quite nicely with the observed 1% CPU usage) So, what is causing the load here?
Asked by Felix G (111 rep)
Aug 11, 2020, 10:59 AM
Last activity: Feb 12, 2021, 08:15 PM
