1TB drive compressed shows only 3.8GB, what did I do wrong?
1
vote
1
answer
773
views
On Linux Mint 20.2 Cinnamon I would like to create a disk image of my secondary disk drive (SATA) containing Windows 10, not that it matters now, directly

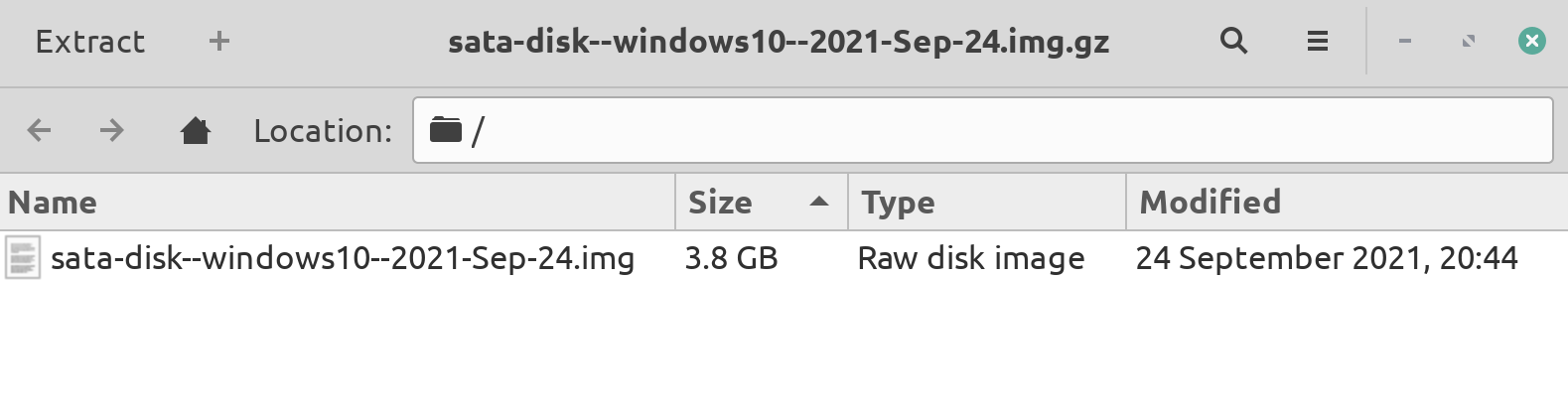

1TB drive uncompressed disk shows only 3.8GB whereas its compressed size is 193 GB.
gzip
'ed using the Parallel gzip
= pigz
onto NTFS formatted external HDD (compressed on-the-fly).
My problem is inside the resulting compressed file, there is somehow _twisted_ (wrong) size of the contents, which I would like you to have a look at:

$ gzip --list sata-disk--windows10--2021-Sep-24.img.gz
compressed uncompressed ratio uncompressed_name
206222131640 3772473344 -5366.5% sata-disk--windows10--2021-Sep-24.img
-rwxrwxrwx 1 vlastimil vlastimil 193G 2021-Sep-24 sata-disk--windows10--2021-Sep-24.img.gz
***
## Notes to the below shell snippet I just ran
- Serial number censored, of course (ABCDEFGHIJKLMNO
)
- I tried to force the size with --size
of pv
command
- The exact byte size of the whole disk comes from smartctl -i /dev/sdX
***
## The shell snippet I just ran follows
-bash
dev=/dev/disk/by-id/ata-Samsung_SSD_870_QVO_1TB_ABCDEFGHIJKLMNO; \
file=/media/vlastimil/4TB_Seagate_NTFS/Backups/sata-disk--windows10--"$(date +%Y-%b-%d)".img.gz; \
pv --size 1000204886016 "$file"
***
I am quite sure the problem is in how I used the pipe or pv
for that matter, but I fail to prove it. Test scenario with a regular file (~2GB) works just fine and as expected. Can this be an error in gzip
maybe...?
What am I doing wrong here, please? Thank you in advance.
***
Perhaps the last thing to cover is versions of pv
and pigz
:
- I am using a packaged version of pv
: 1.6.6-1
- I am using a compiled version of pigz
: 2.6
Asked by Vlastimil Burián
(30515 rep)
Sep 24, 2021, 07:21 PM
Last activity: Sep 26, 2021, 06:26 PM
Last activity: Sep 26, 2021, 06:26 PM
