ARP Entry OPENWRT Not Permanent

1 vote
0 answers
475 views
I am a bit of a networking noob right now. I am currently trying to get WOL(WOW) working using ARP Entries. Wake on Lan will always work with the configuration i am using right now, sending a magic packet to my PC will always wake it regardless of how long it has been shutdown. However the issue comes in when I try to use wake on WAN. It only works if i have used the ip neigh add/replace x.x.x.x lladdr xx:xx:xx:xx:xx:xx nud dev eth0 permanent. Then wake on WAN works, for 1 use only. Because somewhere in the wakeup of the machine and the NIC, the router is replacing the entry of the permanent neighbor address with a temporary reachable address, which then goes back to a failed entry after it has been disposed of. ***The Local Ip Address in Question is 192.168.1.10*** Here is the output of ip -ts monitor after I have configured the ip neighbor manually, issued a wake on WAN signal and the machine begins to boot up.
[2022-04-08T12:02:22.000050] dev lan4 lladdr 10:7b:44:f0:dd:0a REACHABLE
[2022-04-08T12:02:24.000052] 192.168.1.10 dev br-lan lladdr 10:7b:44:f0:dd:0a STALE
[2022-04-08T12:02:24.000052] 192.168.1.10 dev br-lan lladdr 10:7b:44:f0:dd:0a STALE
[2022-04-08T12:02:24.000052] Deleted fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:24.000052] fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:24.000052] 192.168.1.231 dev br-lan lladdr 86:1d:76:87:e4:b4 PROBE
[2022-04-08T12:02:24.000052] 192.168.1.231 dev br-lan lladdr 86:1d:76:87:e4:b4 REACHABLE
[2022-04-08T12:02:24.000052] fe80::39e8:75c0:20bf:de55 dev br-lan lladdr 8c:1d:96:8e:60:bb STALE
[2022-04-08T12:02:25.000053] Deleted fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:25.000053] fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:25.000053] 81.104.168.1 dev wan lladdr 00:01:5c:9b:32:47 PROBE
[2022-04-08T12:02:25.000053] 81.104.168.1 dev wan lladdr 00:01:5c:9b:32:47 REACHABLE
[2022-04-08T12:02:27.000055] 192.168.1.10 dev br-lan lladdr 10:7b:44:f0:dd:0a STALE
[2022-04-08T12:02:27.000055] 192.168.1.10 dev br-lan lladdr 10:7b:44:f0:dd:0a STALE
[2022-04-08T12:02:27.000055] Deleted fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:27.000055] fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:29.000057] fe80::f5b8:b5ef:2ebd:73c dev br-lan lladdr 10:7b:44:f0:dd:0a PROBE
[2022-04-08T12:02:29.000057] fe80::f5b8:b5ef:2ebd:73c dev br-lan lladdr 10:7b:44:f0:dd:0a REACHABLE
[2022-04-08T12:02:31.000049] 7: lan4@eth0:  mtu 1500 master br-lan state UP
    link/ether e8:9f:80:72:cf:03
[2022-04-08T12:02:31.000049] Deleted fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:31.000049] fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:32.000050] 192.168.1.10 dev br-lan lladdr 10:7b:44:f0:dd:0a PROBE
[2022-04-08T12:02:32.000050] 192.168.1.10 dev br-lan lladdr 10:7b:44:f0:dd:0a REACHABLE
[2022-04-08T12:02:39.000057] Deleted fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:39.000057] fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:54.000052] Deleted fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium
[2022-04-08T12:02:54.000052] fd8e:80a0:3a6f:4::/62 via fe80::f5b8:b5ef:2ebd:73c dev br-lan proto static metric 1024 pref medium

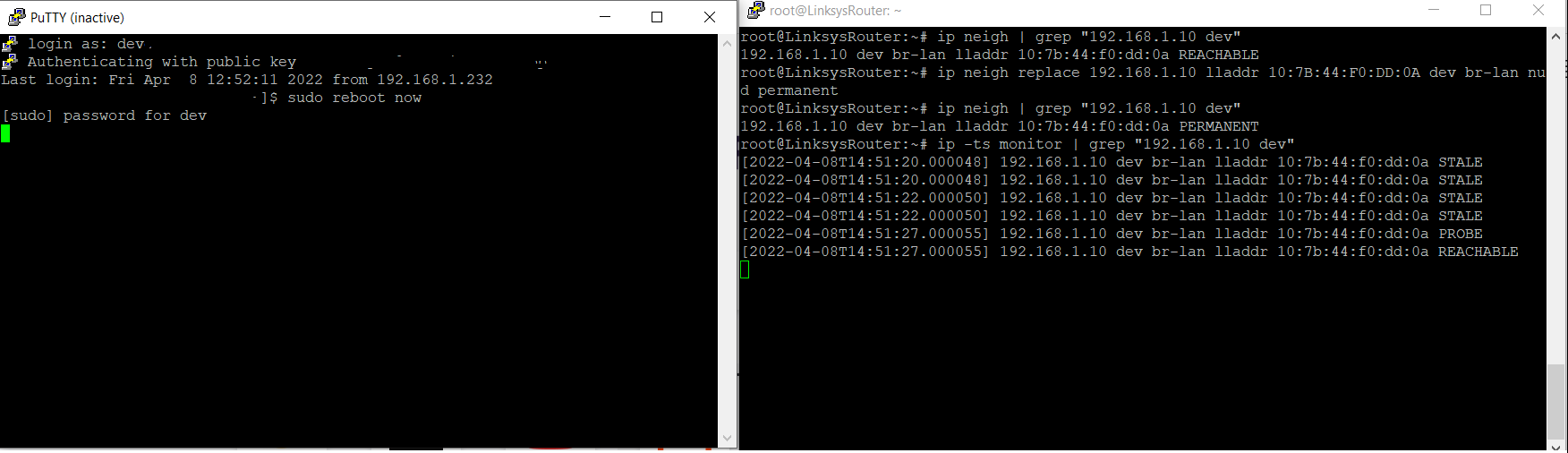

Screenshot of updating the interface, and it resetting
Left side is target machine, 192.168.1.10
Right side is router.
Putty Terminal Session
