Process memory layout - difference between heap, data and mmap areas

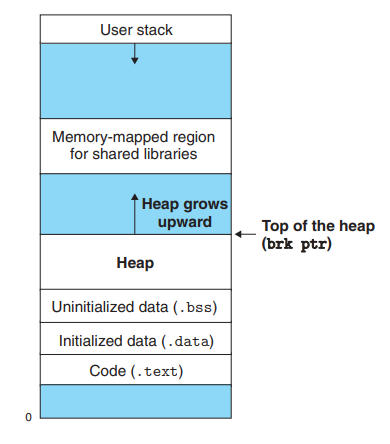

I see in the web many conflicting or unclear descriptions of the memory layout of a Linux process. Usually the [common diagram]( https://stackoverflow.com/q/64038876/8529284) looks like: And a common [description](https://www.quora.com/Is-the-data-segment-is-part-of-the-heap-or-the-heap-is-part-of-it/answer/Sudarshan-43?ch=15&oid=30002660&share=af08bbcb&srid=2KkSm&target_type=answer) would say that: > The data segment contains only global or static variable which have a > predefined value and can be modified. Heap contains the dynamically > allocated data that is stored in a memory section we refer that as > heap section and this section typically starts where data segments > ends. And [also](https://stackoverflow.com/a/14954147/8529284) : > The heap is, generally speaking, one specific memory region created by > the C runtime, and managed by malloc (which in turn uses the brk > and sbrk system calls to grow and shrink). > > mmap is a way of creating new memory regions, independently of > malloc (and so independently of the heap). munmap is simply its > inverse, it releases these regions. Many of the those explanations seem outdated, and I find many discrepancies. For instance, many articles - as the answer above - claim that the heap is used my malloc, but this is actualy a library call that's using either sbrk or mmap, as the malloc [man page](https://man7.org/linux/man-pages/man3/malloc.3.html) says: > Normally, malloc() allocates memory from the heap, and adjusts > the size of the heap as required, using sbrk(2). When allocating > blocks of memory larger than **MMAP_THRESHOLD** bytes, the glibc > malloc() implementation allocates the memory as a private > anonymous mapping using mmap(2). So if malloc in many cases in implemented by mmap, what's the difference between the heap and and the mmap area? Another thing that seems like a contradiction is that many articles (as the malloc man page itself) claim that brk/sbrk adjust the size of the heap, but their [man page](https://man7.org/linux/man-pages/man2/brk.2.html) says it actually adjust the size of the **data segment**: > brk() and sbrk() change the location of the **program break**, > which > defines the end of the process's data segment (i.e., the program > break is the first location after the end of the uninitialized > data segment). So I'm trying to get a clear, up-to-date overall explanation of the memory layout of processes nowadays with the different segments, that also addresses those questions: 1. What is the difference between the heap and the mmap areas? (From some tests I was attempting, by looking at the addresses I got from mmap and comparing to the range of the heap in /proc/self/maps, it seems that some mmap allocated pages are actually allocated inside the heap segment.) 2. Does the **break** signifies the end of the **data segment**, or the end of the **heap**? Other related questions: * [how brk pointer grow after calling malloc](https://unix.stackexchange.com/q/610939/273579) * [When is the heap used for dynamic memory allocation?](https://unix.stackexchange.com/q/411408/273579)
