How to automatically straighten a scanned document in Debian Linux, undoing a possible rotation of the text?

13 votes
2 answers
1106 views

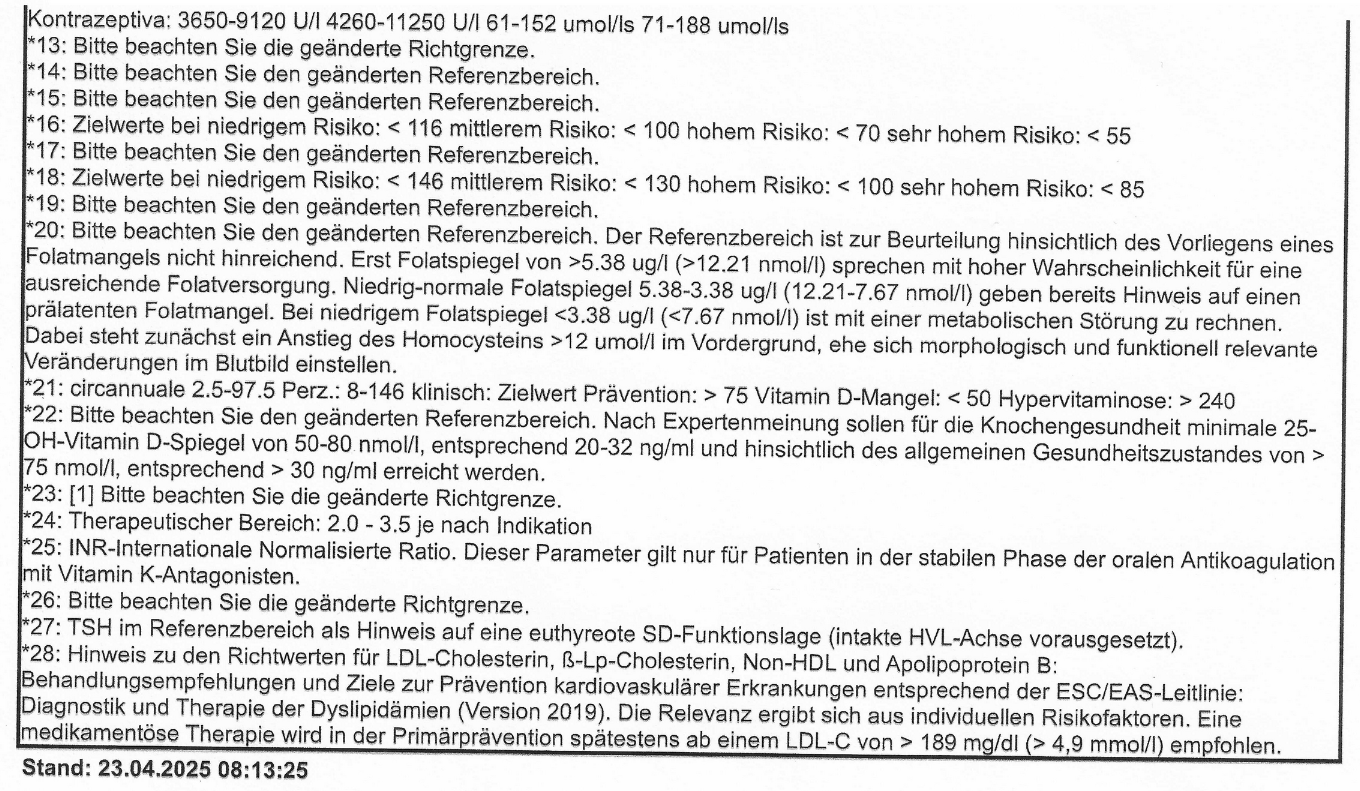

Consider the image an excerpt from a German document (the sensitive header and footer have been blanked for the purpose of this question, which would be valid also with them). As you see, it's a bit tilted clockwise. We tried to straighten it via
$ pngtopam test.png > test.pgm
$ rm -f test_unpaper.pgm && dpi=600 && unpaper -start 1 -end 1 --dpi $dpi -dr 10 -dp 0.01 -dv 10 -v test.pgm test_unpaper.pgm
…
detected rotation left: [235,0,4795,7015]: 0.000000
detected rotation right: [235,0,4795,7015]: 0.000000
rotation average: 0.000000  deviation: 0.000000  rotation-scan-deviation (maximum): 0.174533  [235,0,4795,7015]
rotate (2550,3508): 0.000000
…
We tried to play with the switches -dr and -dp; without them, the result is equally bad: the output is tilted in any case. Any improvement? Ideally, we'd like to get a straightened image automatically, without caring about switches; in particular, the effort should be less than for a precise manual rotation in GIMP. (An aside: for the purpose of this question, nothing else is needed: no denoising, no sharpening, no margin removal or image centering, ….).
Asked by user743115 (1 rep)
May 19, 2025, 06:15 AM
Last activity: Jul 27, 2025, 02:42 PM
