CUPS on FreeBSD: suitable paths for manual placement of individual PPD files

5 votes
1 answer
357 views

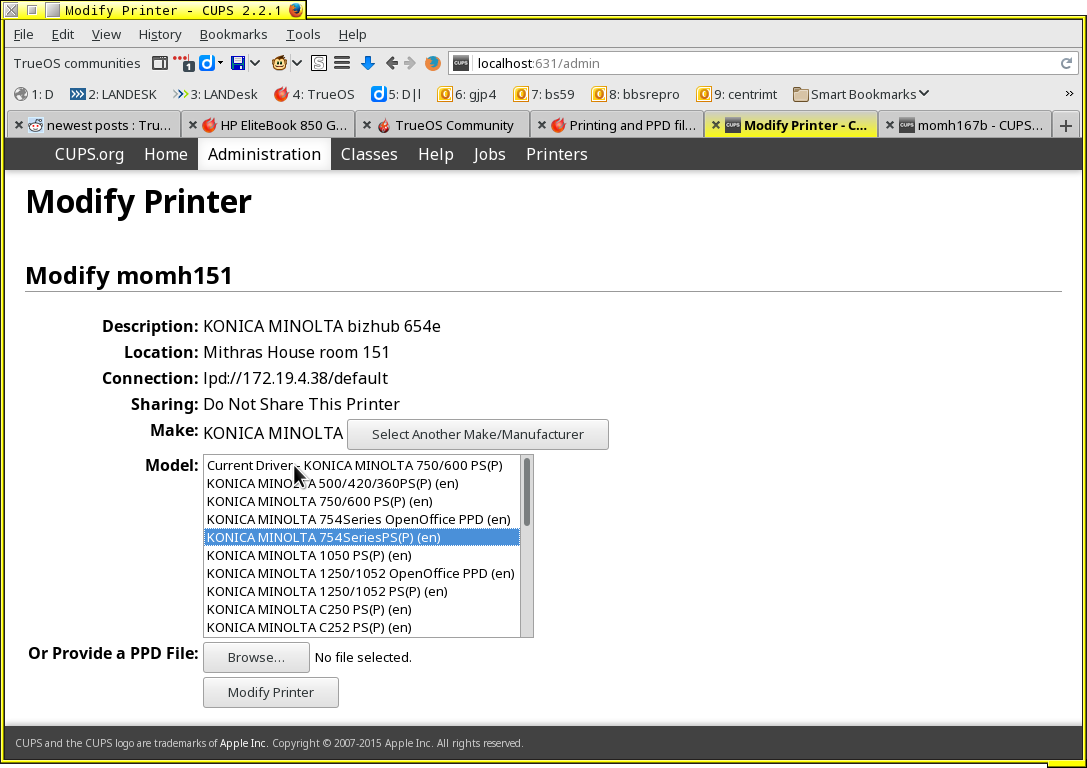

## Background I downloaded a handful of PPD files for Linux, with an expectation that they will work on TrueOS Desktop, which is currently based on FreeBSD 12.0-CURRENT. I know that with the web interface to CUPS – typically http://localhost:631/ – there's 'Or Provide a PPD File:' with the option to browse the file system, but I prefer to have the driver listed after I select the relevant make/manufacturer. ## Success, and the question I experimented with placement of the PPD files at /usr/local/share/cups/model/other where the other directory was made by me. Success (example below), but: - I'd like to know **whether a different path would be more appropriate**. ---- ### Example [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups]% ls -l total 796 drwxr-xr-x 2 root wheel 9 30 Oct 14:10 banners -rw-r--r-- 1 root wheel 331836 28 Oct 02:33 calibrate.ppm drwxr-xr-x 2 root wheel 5 30 Oct 14:10 charsets drwxr-xr-x 2 root wheel 15 30 Oct 14:10 data drwxr-xr-x 2 root wheel 4 30 Oct 14:10 drv drwxr-xr-x 2 root wheel 13 29 Oct 18:03 examples drwxr-xr-x 2 root wheel 9 30 Oct 14:10 mime drwxr-xr-x 3 root wheel 5 30 Oct 14:14 model drwxr-xr-x 2 root wheel 10 30 Oct 14:10 ppdc drwxr-xr-x 2 root wheel 2 14 Oct 20:33 profiles drwxr-xr-x 7 root wheel 77 29 Oct 18:03 templates drwxr-xr-x 2 root wheel 4 30 Oct 14:10 usb [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups]% cd model [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model]% ls -l total 19 -rw-r--r-- 1 root wheel 20940 5 Oct 22:52 CUPS-PDF.ppd lrwxr-xr-x 1 root wheel 39 24 Oct 23:43 foomatic-db-ppds -> /usr/local/share/foomatic/db/source/PPD drwxr-xr-x 3 root wheel 3 30 Oct 14:10 gutenprint [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model]% sudo mkdir other Password: [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model]% cd other [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model/other]% sudo cp /usr/home/gjp4/Desktop/BH754ePPDLinux_300000000/English/CUPS1.2/* . [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model/other]% sudo cp /usr/home/gjp4/Desktop/BHP1250PPDLinux_320/English/CUPS1.2/* . [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model/other]% ls -l total 284 -rw-r--r-- 1 root wheel 22590 30 Oct 17:39 KO1250opn.ppd -rw-r--r-- 1 root wheel 497755 30 Oct 17:39 KO1250UX.ppd -rw-r--r-- 1 root wheel 24262 30 Oct 17:39 KO754opn.ppd -rw-r--r-- 1 root wheel 199193 30 Oct 17:39 KO754UX.ppd [gjp4@momh167-gjp4-hpelitebook850g2-trueos /usr/local/share/cups/model/other]% Selecting a driver that relates to one of the four files that I placed at /usr/local/share/cups/model/other: screenshot of selecting a driver Using that driver, a print dialogue: screenshot of required options within a print dialogue
Asked by Graham Perrin (362 rep)
Oct 30, 2016, 07:13 PM
Last activity: Dec 18, 2018, 09:45 PM
