HDMI port doesn't work Nvidia/Intel Bumblebee Driver for Laptop with Manjaro Linux

8 votes
1 answer
6435 views

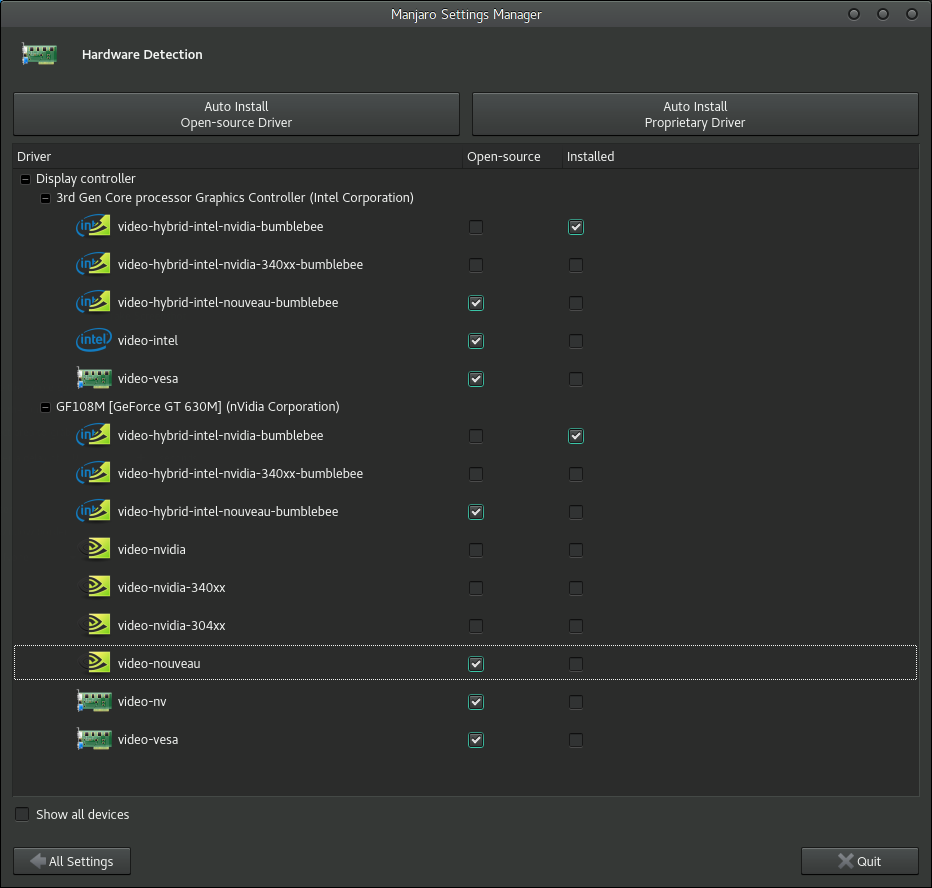

## Informations OS : Manjaro Linux 16.10 (Cinnamon Community Edition) $ cat /etc/*-release DISTRIB_ID=ManjaroLinux DISTRIB_RELEASE=16.10 DISTRIB_CODENAME=Fringilla DISTRIB_DESCRIPTION="Manjaro Linux" Manjaro Linux NAME="Manjaro Linux" ID=manjaro PRETTY_NAME="Manjaro Linux" ANSI_COLOR="1;32" HOME_URL="http://www.manjaro.org/ " SUPPORT_URL="http://www.manjaro.org/ " BUG_REPORT_URL="http://bugs.manjaro.org/ " Type : Laptop Kernel : 4.4.28-2-MANJARO CPU : Intel(R) Core(TM) i7-3610QM CPU @ 2.30GHz GPUs : * Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09) * NVIDIA Corporation GF108M [GeForce GT 630M] (rev ff) PCI Addresses : * Intel iGPU : 00:02.0 * Nvidia GPU : 01:00.0 Driver from Bumblebee. ## Problem I found (and read) the NVIDIA and NVIDIA Optimus ArchLinux wiki (because yes, Manjaro is ArchLinux based). But when I installed Manjaro I installed it with NON-FREE drivers and so nvidia, nvidia-libgl and xorg-xrandr are already installed and up-to-date. And my **HDMI port is not working**. I think that's because only the Intel iGPU is present in the X11 conf (HDMI port is part of the Nvidia GPU). While I was trying to find out why, I find that Manjaro does an [Automated Identification and Installation](https://wiki.manjaro.org/index.php/Configure_Graphics_Cards#Automated_Identification_and_Installation) of GPUs during the install. $ sudo mhwd-gpu --check [sudo] password for shark: Using default Default lib32 support: true xorg configuration symlink valid... libGl and libglx symlinks valid... $ sudo mhwd-gpu --status Using default Default lib32 support: true :: status lib32-libGl: '/usr/lib32/mesa/libGL.so.1.2.0' lib32-libGLESv1: '/usr/lib32/mesa/libGLESv1_CM.so.1.1.0' lib32-libGLESv2: '/usr/lib32/mesa/libGLESv2.so.2.0.0' lib32-libEGL: '/usr/lib32/mesa/libEGL.so.1.0.0' libGl: '/usr/lib/mesa/libGL.so.1.2.0' libGLESv1: '/usr/lib/mesa/libGLESv1_CM.so.1.1.0' libGLESv2: '/usr/lib/mesa/libGLESv2.so.2.0.0' libEGL: '/usr/lib/mesa/libEGL.so.1.0.0' libglx: '/usr/lib/xorg/modules/extensions/libglx.xorg' xorg configuration file: '/etc/X11/mhwd.d/intel.conf' The Manjaro Settings Manager (Hardware configuration) is telling me that hybrid bumblebee driver is installed in both case (see screenshot). bumblebee driver But my /etc/X11/xorg.conf.d folder is only containing the following symlink 90-mhwd.conf -> /etc/X11/mhwd.d/intel.conf. /etc/X11/mhwd.d/intel.conf content: ## ## Generated by mhwd - Manjaro Hardware Detection ## Section "Device" Identifier "Device0" Driver "intel" BusID "PCI:0:2:0" Option "AccelMethod" "sna" Option "DRI" "true" EndSection Section "DRI" Group "video" Mode 0666 EndSection Section "Extensions" Option "Composite" "Enable" Option "RENDER" "Enable" EndSection Section "InputClass" Identifier "Keyboard Defaults" MatchIsKeyboard "yes" Option "XkbOptions" "terminate:ctrl_alt_bksp" EndSection So what I have to do to make my HDMI port working? And how can I check that my Nvidia GPU is working or not? I don't think I need to install more drivers but I can't figure if I need to use the mhwd tool provided by Manjaro to configure some more settings or if I need to create a new /etc/X11/xorg.conf.d/20-nvidia.conf file or even if I need to replace the intel.conf with a nvidia.conf. This may help too: $ glxinfo | grep OpenGL OpenGL vendor string: Intel Open Source Technology Center OpenGL renderer string: Mesa DRI Intel(R) Ivybridge Mobile OpenGL core profile version string: 3.3 (Core Profile) Mesa 13.0.0-rc2 OpenGL core profile shading language version string: 3.30 OpenGL core profile context flags: (none) OpenGL core profile profile mask: core profile OpenGL core profile extensions: OpenGL version string: 3.0 Mesa 13.0.0-rc2 OpenGL shading language version string: 1.30 OpenGL context flags: (none) OpenGL extensions: OpenGL ES profile version string: OpenGL ES 3.0 Mesa 13.0.0-rc2 OpenGL ES profile shading language version string: OpenGL ES GLSL ES 3.00 OpenGL ES profile extensions: **Edit** : Is this post https://unix.stackexchange.com/questions/25120/xrandr-doesnt-detect-monitor-on-hdmi-port answering my question? ## Why I am questionning here I apologize to ask this question here but ArchLinux forum say this > These boards are for the support of Arch Linux, and Arch ONLY If you > have installed Archbang, Antegros, Chakra, Evo/Lution, Manjaro, > Whatever, you are NOT running Arch Linux. Similarly, if you followed > some random video on YouTube or used an automated script you found on > a blog, you are NOT running Arch Linux, so do not expect any support, > sympathy or anything but your thread being closed and told to move > along. Arch is a DIY distro: if someone else has done it for you, then > showing up here asking to have your hand held for more help is just > help vampirism and is not welcome. and I never received the confirmation mail for Manjaro Linux forum. I made search and configuration efforts so I wish this is not help vampirism as some says. Plus I really don't want to trash my distro by installing wrong drivers (it already happened to me when I installed Nvidia drivers from their website, now I know that's a very bad idea).
Asked by noraj (425 rep)
Nov 2, 2016, 08:24 PM
Last activity: Nov 17, 2021, 12:52 PM
