Host PC fails to access Webmin which is installed on CentOS in VirtualBox
0
votes
1
answer
829
views
Webmin can be accessed over SSH after forwarding the port.
Now I am trying to access Webmin's control panel on my computer outside virtualbox but on the same computer, but it doesn't load.
I tried using the same port forwarding settings as is working fine for SSH, for both port 80 and port 10000, but it still doesn't load. The browser error says,

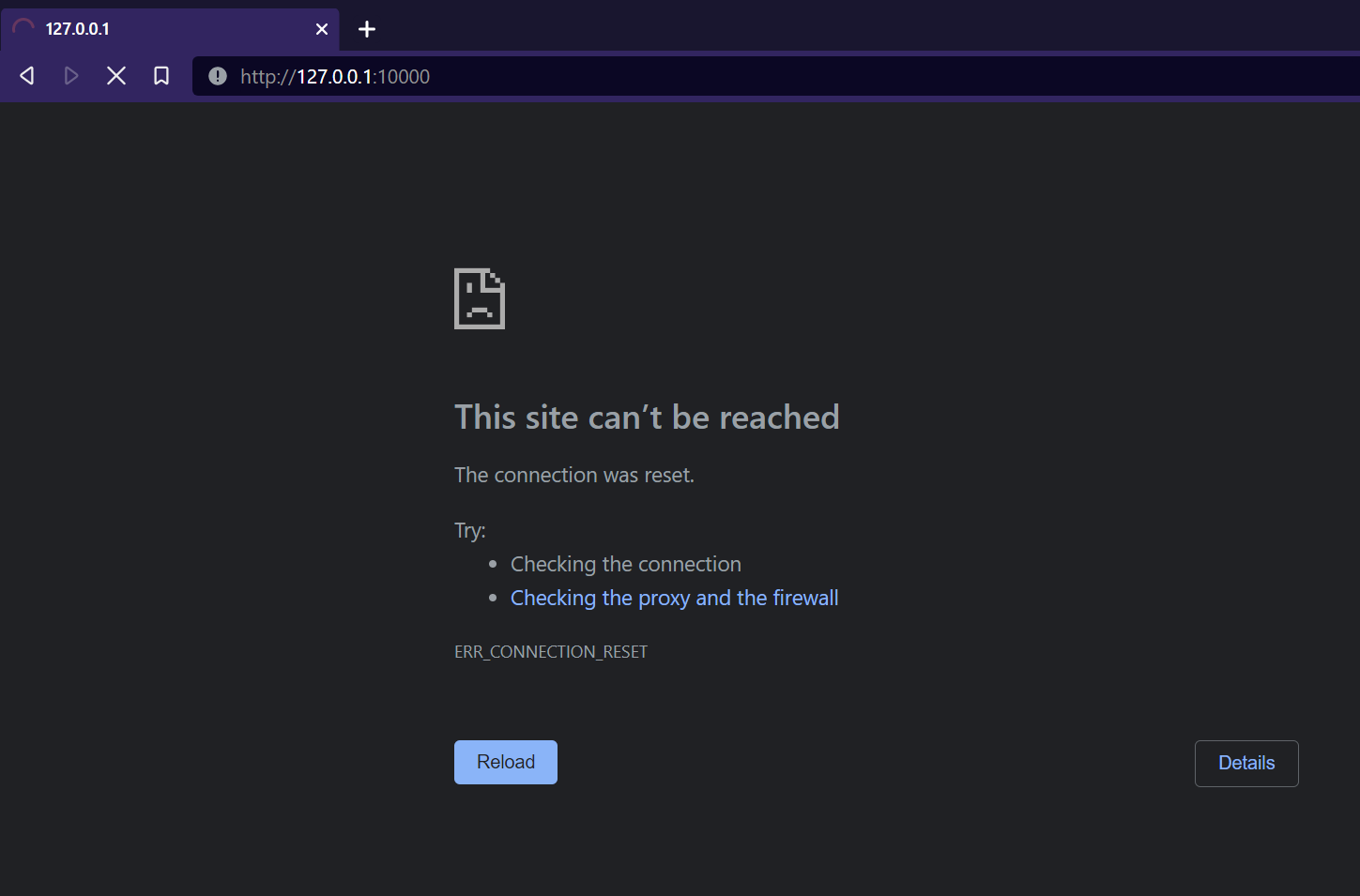

This site can’t be reached
The connection was reset.

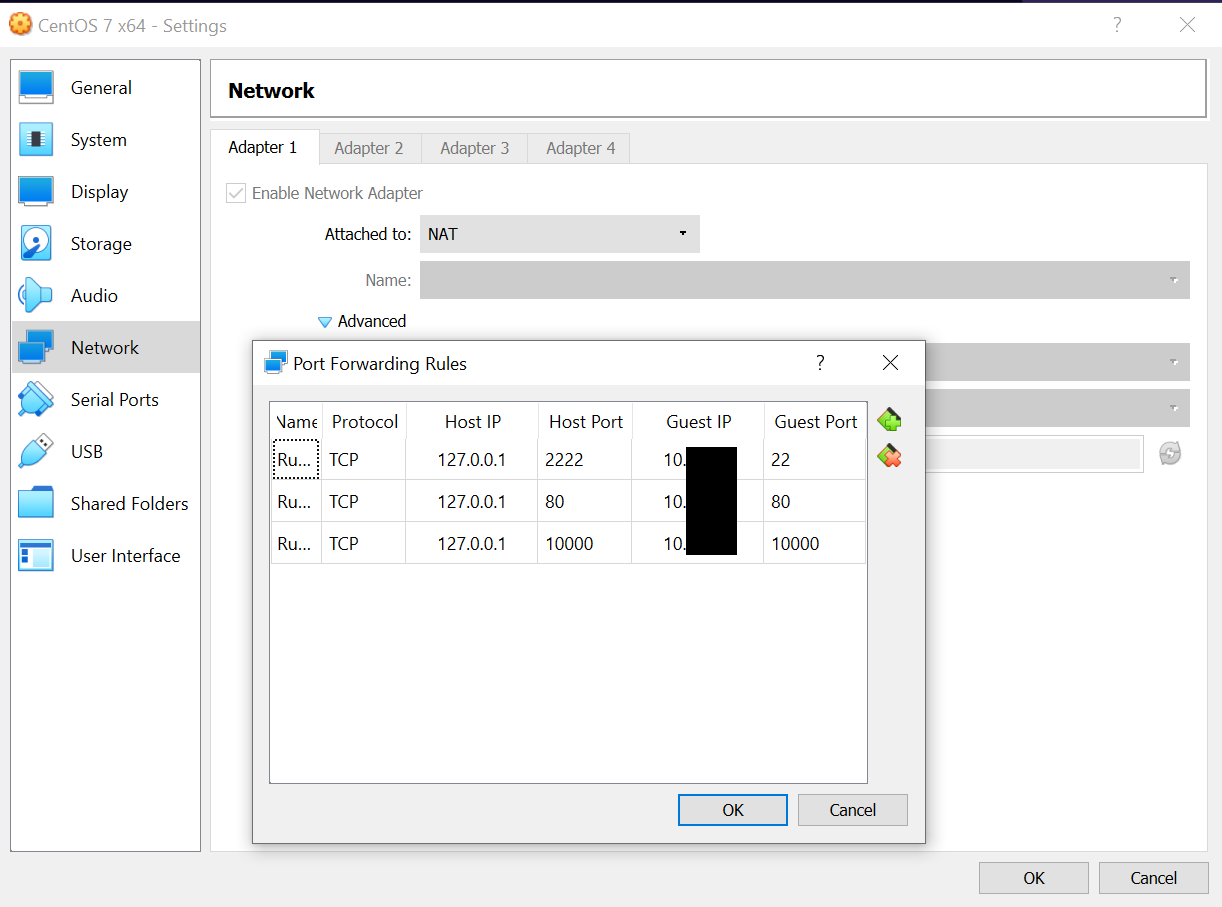

Here's my network settings for port forwarding in virtualbox:
Steps to reproduce:
1. Install fresh CentOS 7 x64 (latest)
2. Install Webmin
3.

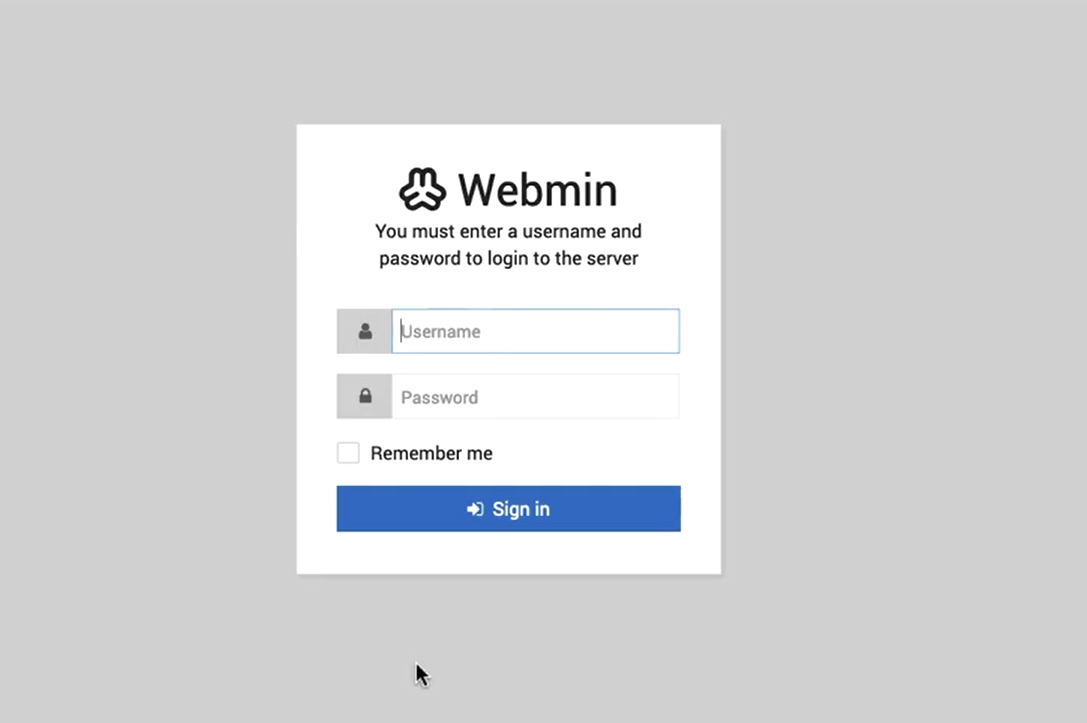

This is what I want to see (pulled screenshot from the internet):

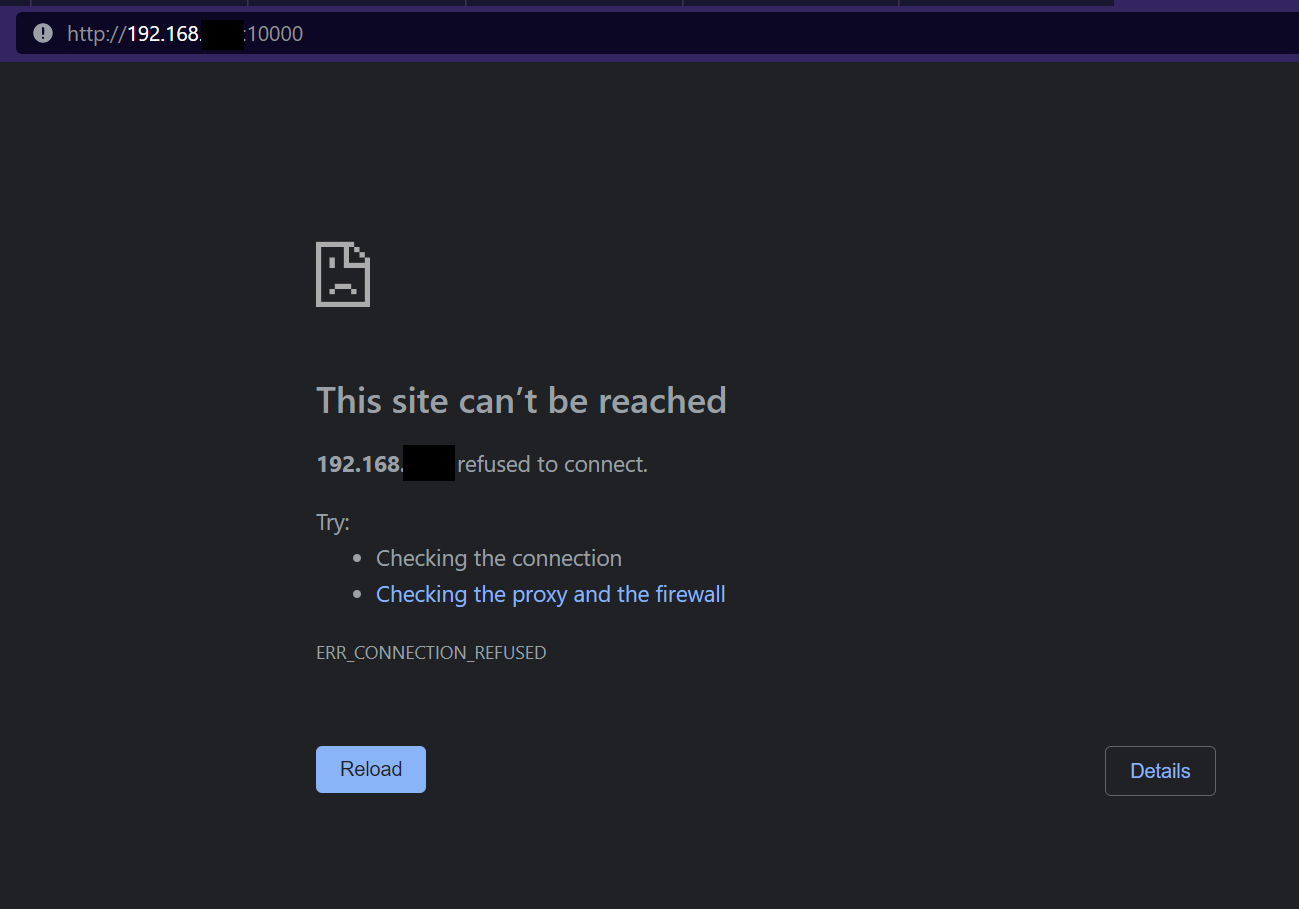

I also tried accessing from 192.168.x.x (my PC's IP), but I get connection refused:

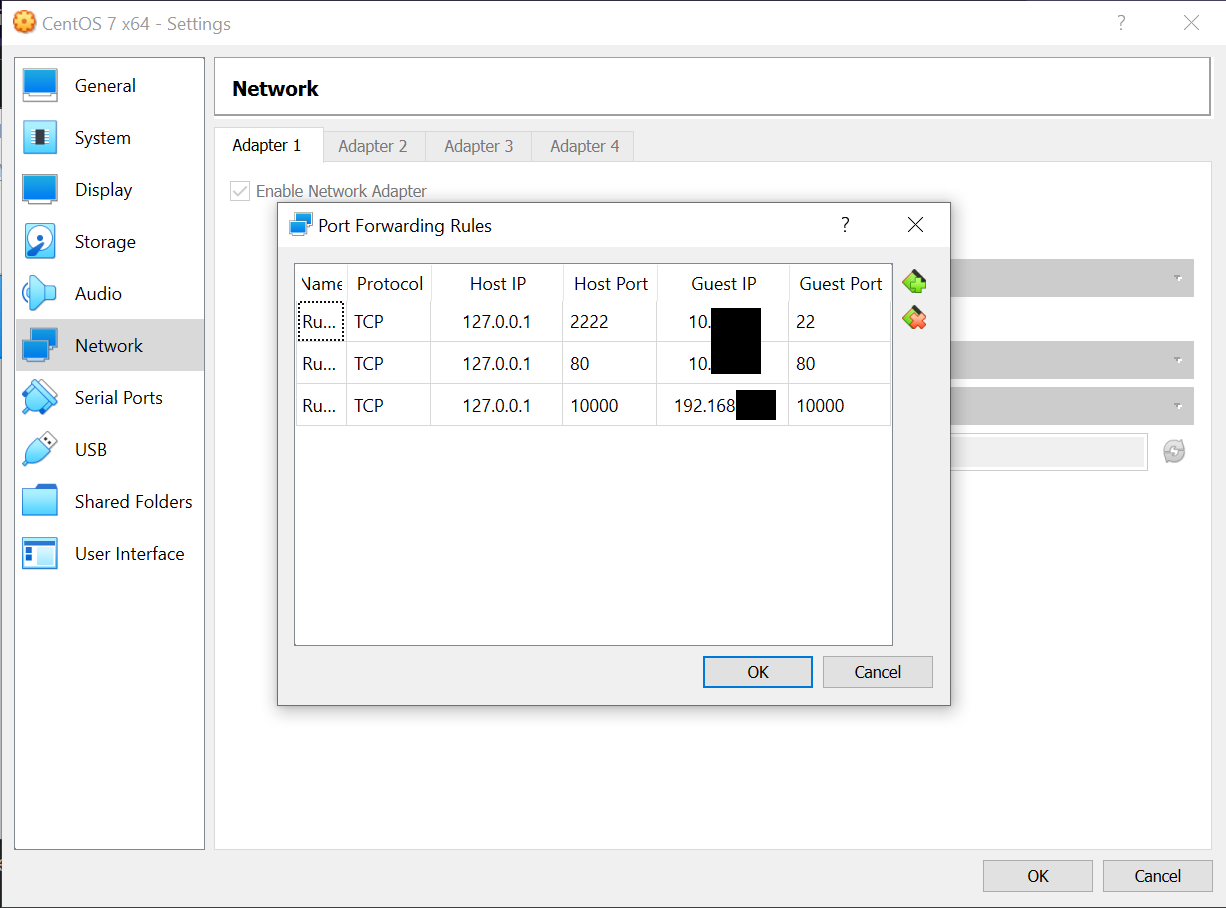

I tried forwarding port 10000 to my local pc's IP port 10000 too, but still doesn't work:

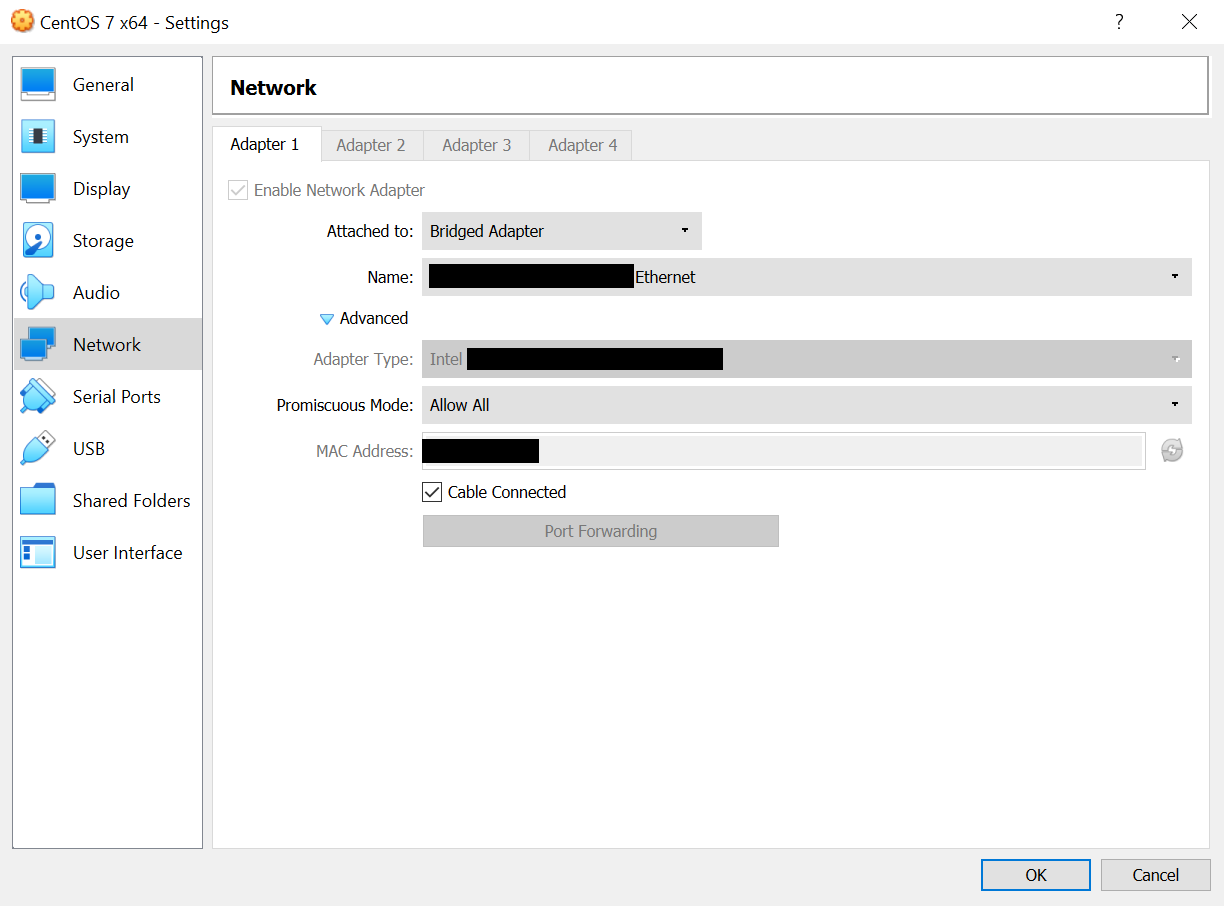

I can't use bridged because port forwarding is greyed out.
I did try setting up a bridged connection, but then even SSH wouldn't connect, as well as either my host PC's IP (

yum update -y
4. Add Port Forwarding rule for 2222 to 22 to make SSH work
5. No iptables are installed. Just vanilla CentOS 7 x64 latest with Webmin latest freshly installed.
6. Open browser on computer (the same computer running VirtualBox & SSH but outside VirtualBox), and go to http://127.0.0.1:10000
It fails to connect.





http://192.168.x.x:10000
) or (http://127.0.0.1:10000
)
To troubleshoot I ran nmap in SSH:
# nmap 192.168.x.x -p 10000 -sU -sT -Pn --reason
Starting Nmap 6.40 ( http://nmap.org ) at 2022-06-14 21:33 EDT
Nmap scan report for DESKTOP-CHTUIRP (192.168.x.x)
Host is up, received user-set (0.0013s latency).
PORT STATE SERVICE REASON
10000/tcp filtered snet-sensor-mgmt no-response
10000/udp filtered ndmp port-unreach from 10.x.x.x
Nmap done: 1 IP address (1 host up) scanned in 0.47 seconds
Then I tried from localhost, but localhost (127.0.0.1) seems to be up.
# nmap 127.0.0.1 -p 10000 -sU -sT -Pn --reason
Starting Nmap 6.40 ( http://nmap.org ) at 2022-06-14 21:35 EDT
Nmap scan report for localhost (127.0.0.1)
Host is up, received user-set (0.021s latency).
PORT STATE SERVICE REASON
10000/tcp open snet-sensor-mgmt syn-ack
10000/udp open ndmp udp-response
Nmap done: 1 IP address (1 host up) scanned in 0.98 seconds
also seems to be up from the guest IP (10.x.x.x)
# nmap 10.x.x.x -p 10000 -sU -sT -Pn --reason
Starting Nmap 6.40 ( http://nmap.org ) at 2022-06-14 21:41 EDT
Nmap scan report for 10.x.x.x
Host is up, received user-set (0.00021s latency).
PORT STATE SERVICE REASON
10000/tcp open snet-sensor-mgmt syn-ack
10000/udp open ndmp udp-response
Nmap done: 1 IP address (1 host up) scanned in 0.79 seconds
How to connect and log into WebMin that is installed in VirtualBox, in a browser on the host PC?
Asked by user7211
(43 rep)
Jun 15, 2022, 01:04 AM
Last activity: Jun 15, 2022, 03:21 AM
