Linux Mint 22 : HP Envy 13 aq1176ng - only sound on RDP, but no headphones or loudspeakers

First: virtual sound throuch RDP (**Remote Desktop Connection**) i.E. ***NoMachine*** works brilliantly, only the internal speakers and head phones don't give a sound. Sound drivers (**sound open firmware are installed by github source v2.2 (before most latter v2.12) **). **Sound card is intels *snd_hda_intel*.** I have followed the few links found on the net regarding Linux Mint or Ubuntu 22, which always are similar like: - install ALSA - Reinstalling sound system and restarting alsa - (re)install pipewire - install and configure hdajackretask (this is the least promising way IMHO) incl. restarting alsa,

# dmesg | grep snd
[  659.315312] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[  659.315388] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[  659.678692] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC285: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
[  659.678695] snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[  659.678697] snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[  659.678698] snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
[  659.678699] snd_hda_codec_realtek ehdaudio0D0:    inputs:
[  659.678699] snd_hda_codec_realtek ehdaudio0D0:      Mic=0x19

Getting info on the system (**last two lines audio**):

# inxi -SMA
System:
  Host: HP-ENVY-Laptop-13-aq1176ng Kernel: 6.8.0-52-generic arch: x86_64
    bits: 64
  Desktop: Cinnamon v: 6.4.6 Distro: Linux Mint 22.1 Xia
Machine:
  Type: Laptop System: HP product: HP ENVY Laptop 13-aq1xxx
    v: Type1ProductConfigId serial: 8CG0165VNF
  Mobo: HP model: 86AE v: 83.18 serial: PJEKT1DHCDM061 UEFI: Insyde v: F.22
    date: 11/24/2023
Audio:
  Device-1: Intel Comet Lake PCH-LP cAVS driver: sof-audio-pci-intel-cnl
  API: ALSA v: k6.8.0-52-generic status: kernel-api

The journal reharding findings of 'snd' during boot looks fine to me:

$ journalctl -b -x | grep -i snd
Oct 17 19:15:17 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
Oct 17 19:15:17 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
Feb 20 00:05:30 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC285: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
Feb 20 00:05:30 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
Feb 20 00:05:30 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
Feb 20 00:05:30 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
Feb 20 00:05:30 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    inputs:
Feb 20 00:05:30 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:      Mic=0x19
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC285: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:    inputs:
Feb 20 01:17:31 HP-ENVY-Laptop-13-aq1176ng kernel: snd_hda_codec_realtek ehdaudio0D0:      Mic=0x19

So far no results. The only thing is working, is if you connect via NoMachine the sound is transferred to the remote computer. So I consider the sound is produced but somewhere between the layers of Abstraction of the OS down to the HW there is an issue. I beg you for your ideas, or solution (trees)! [EDIT] *aplay -l* output

# aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: sofhdadsp [sof-hda-dsp], device 0: HDA Analog (*) []
  Subdevices: 0/1
  Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 3: HDMI1 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 4: HDMI2 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 5: HDMI3 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0

*lspci output*:

# lspci
00:00.0 Host bridge: Intel Corporation Comet Lake-U v1 4c Host Bridge/DRAM Controller (rev 0c)
00:02.0 VGA compatible controller: Intel Corporation CometLake-U GT2 [UHD Graphics] (rev 02)
00:04.0 Signal processing controller: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor Thermal Subsystem (rev 0c)
00:08.0 System peripheral: Intel Corporation Xeon E3-1200 v5/v6 / E3-1500 v5 / 6th/7th/8th Gen Core Processor Gaussian Mixture Model
00:12.0 Signal processing controller: Intel Corporation Comet Lake Thermal Subsytem
00:14.0 USB controller: Intel Corporation Comet Lake PCH-LP USB 3.1 xHCI Host Controller
00:14.2 RAM memory: Intel Corporation Comet Lake PCH-LP Shared SRAM
00:14.3 Network controller: Intel Corporation Comet Lake PCH-LP CNVi WiFi
00:14.5 SD Host controller: Intel Corporation Comet Lake PCH-LP SCS3
00:15.0 Serial bus controller: Intel Corporation Serial IO I2C Host Controller
00:15.1 Serial bus controller: Intel Corporation Comet Lake Serial IO I2C Host Controller
00:16.0 Communication controller: Intel Corporation Comet Lake Management Engine Interface
00:17.0 RAID bus controller: Intel Corporation 82801 Mobile SATA Controller [RAID mode]
00:1c.0 PCI bridge: Intel Corporation Comet Lake PCI Express Root Port #1 (rev f0)
00:1c.4 PCI bridge: Intel Corporation Comet Lake PCI Express Root Port #5 (rev f0)
00:1d.0 PCI bridge: Intel Corporation Comet Lake PCI Express Root Port #9 (rev f0)
00:1d.4 PCI bridge: Intel Corporation Comet Lake PCI Express Root Port #13 (rev f0)
00:1f.0 ISA bridge: Intel Corporation Comet Lake PCH-LP LPC Premium Controller/eSPI Controller
00:1f.3 Multimedia audio controller: Intel Corporation Comet Lake PCH-LP cAVS
00:1f.4 SMBus: Intel Corporation Comet Lake PCH-LP SMBus Host Controller
00:1f.5 Serial bus controller: Intel Corporation Comet Lake SPI (flash) Controller
02:00.0 3D controller: NVIDIA Corporation GP108BM [GeForce MX250] (rev a1)
04:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller S4LV008[Pascal]

output of *dmesg|grep audio*

# dmesg |grep audio
[   15.060429] sof-audio-pci-intel-cnl 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[   15.060582] sof-audio-pci-intel-cnl 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[   15.060596] sof-audio-pci-intel-cnl 0000:00:1f.3: enabling device (0000 -> 0002)
[   15.060801] sof-audio-pci-intel-cnl 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if 0x040100
[   15.060876] sof-audio-pci-intel-cnl 0000:00:1f.3: bound 0000:00:02.0 (ops i915_audio_component_bind_ops [i915])
[   15.067813] sof-audio-pci-intel-cnl 0000:00:1f.3: use msi interrupt mode
[   15.108086] sof-audio-pci-intel-cnl 0000:00:1f.3: hda codecs found, mask 5
[   15.108092] sof-audio-pci-intel-cnl 0000:00:1f.3: using HDA machine driver skl_hda_dsp_generic now
[   15.108097] sof-audio-pci-intel-cnl 0000:00:1f.3: DMICs detected in NHLT tables: 2
[   15.113689] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware paths/files for ipc type 0:
[   15.113694] sof-audio-pci-intel-cnl 0000:00:1f.3:  Firmware file:     intel/sof/sof-cml.ri
[   15.113697] sof-audio-pci-intel-cnl 0000:00:1f.3:  Topology file:     intel/sof-tplg/sof-hda-generic-2ch.tplg
[   15.116471] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware info: version 2:2:0-57864
[   15.116474] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware: ABI 3:22:1 Kernel ABI 3:23:0
[   15.116481] sof-audio-pci-intel-cnl 0000:00:1f.3: unknown sof_ext_man header type 3 size 0x30
[   15.216153] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware info: version 2:2:0-57864
[   15.216160] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware: ABI 3:22:1 Kernel ABI 3:23:0
[   15.236595] sof-audio-pci-intel-cnl 0000:00:1f.3: Topology: ABI 3:22:1 Kernel ABI 3:23:0
[   15.257684] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC285: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
[   15.257692] snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[   15.257695] snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[   15.257697] snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
[   15.257699] snd_hda_codec_realtek ehdaudio0D0:    inputs:
[   15.257701] snd_hda_codec_realtek ehdaudio0D0:      Mic=0x19
[ 4302.743485] sof-audio-pci-intel-cnl 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[ 4302.743565] sof-audio-pci-intel-cnl 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[ 4302.744012] sof-audio-pci-intel-cnl 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if 0x040100
[ 4302.744080] sof-audio-pci-intel-cnl 0000:00:1f.3: bound 0000:00:02.0 (ops i915_audio_component_bind_ops [i915])
[ 4302.750643] sof-audio-pci-intel-cnl 0000:00:1f.3: use msi interrupt mode
[ 4302.764441] sof-audio-pci-intel-cnl 0000:00:1f.3: hda codecs found, mask 5
[ 4302.764450] sof-audio-pci-intel-cnl 0000:00:1f.3: using HDA machine driver skl_hda_dsp_generic now
[ 4302.764457] sof-audio-pci-intel-cnl 0000:00:1f.3: DMICs detected in NHLT tables: 2
[ 4302.766353] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware paths/files for ipc type 0:
[ 4302.766357] sof-audio-pci-intel-cnl 0000:00:1f.3:  Firmware file:     intel/sof/sof-cml.ri
[ 4302.766358] sof-audio-pci-intel-cnl 0000:00:1f.3:  Topology file:     intel/sof-tplg/sof-hda-generic-2ch.tplg
[ 4302.768019] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware info: version 2:2:0-57864
[ 4302.768022] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware: ABI 3:22:1 Kernel ABI 3:23:0
[ 4302.768029] sof-audio-pci-intel-cnl 0000:00:1f.3: unknown sof_ext_man header type 3 size 0x30
[ 4302.880559] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware info: version 2:2:0-57864
[ 4302.880569] sof-audio-pci-intel-cnl 0000:00:1f.3: Firmware: ABI 3:22:1 Kernel ABI 3:23:0
[ 4302.881182] sof-audio-pci-intel-cnl 0000:00:1f.3: Topology: ABI 3:22:1 Kernel ABI 3:23:0
[ 4302.897218] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC285: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
[ 4302.897226] snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[ 4302.897229] snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[ 4302.897232] snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
[ 4302.897233] snd_hda_codec_realtek ehdaudio0D0:    inputs:
[ 4302.897235] snd_hda_codec_realtek ehdaudio0D0:      Mic=0x19

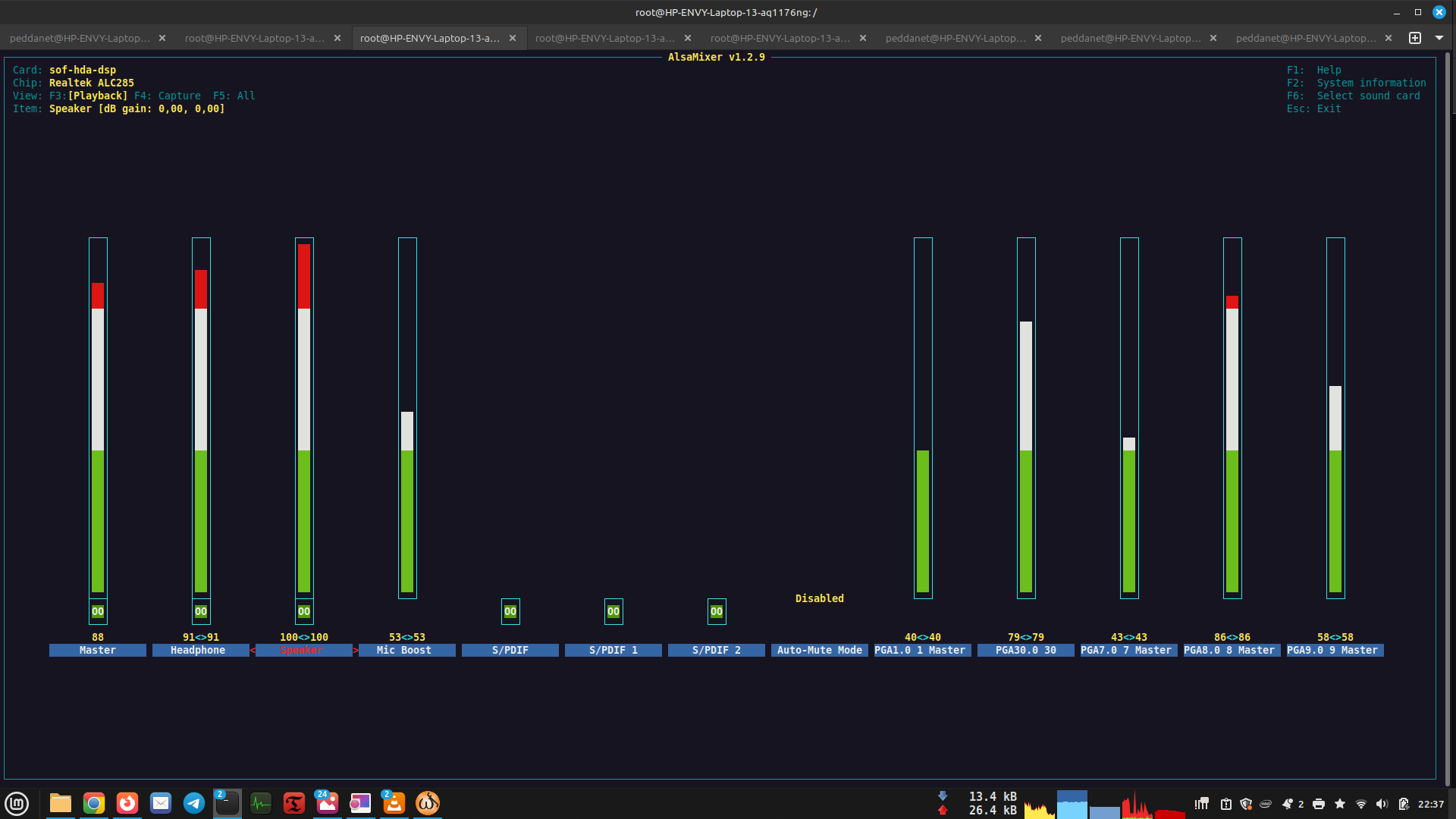

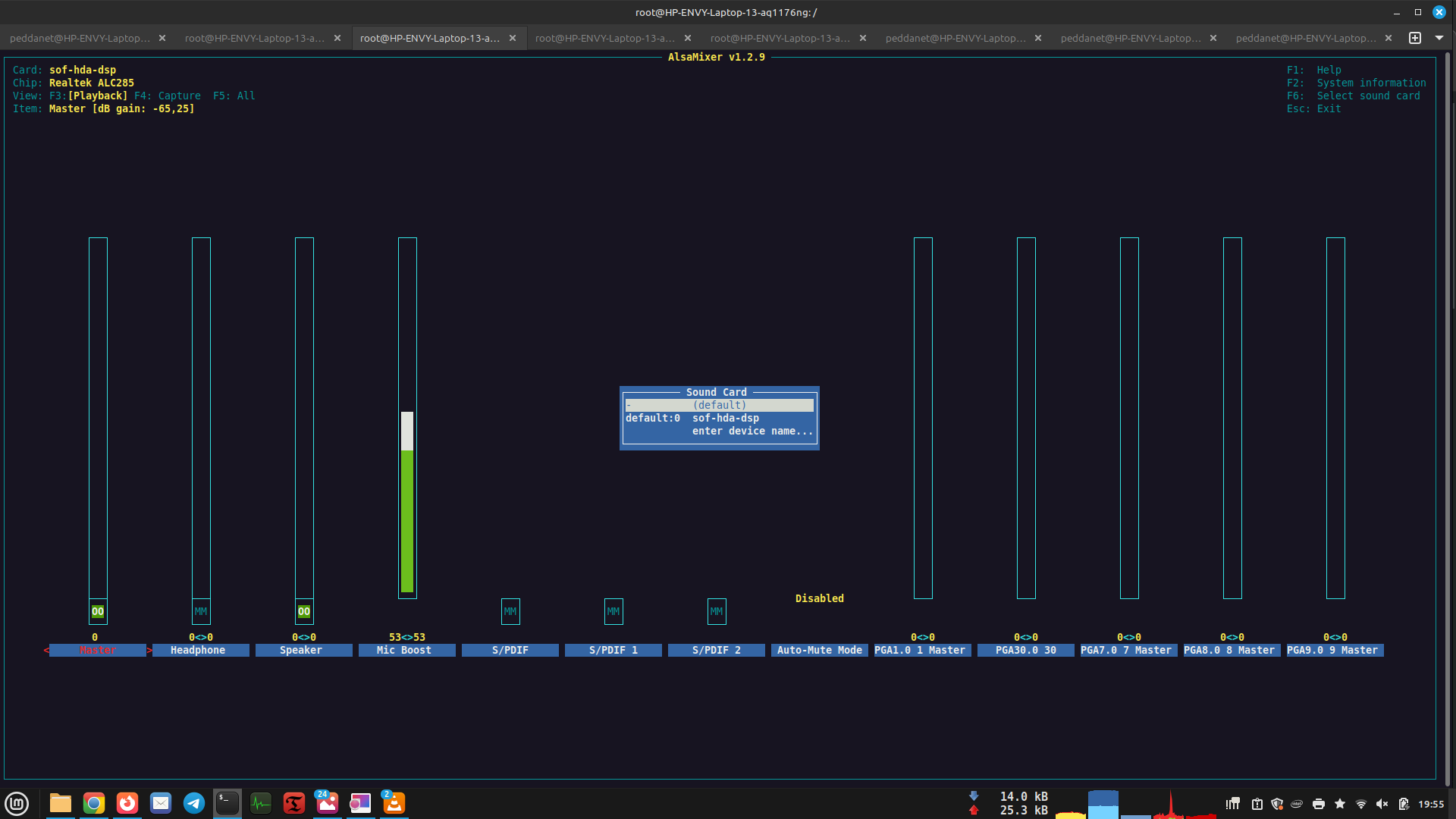

[EDIT 3] Picture of Alsamixer. Is the device muted if its green around the number down in the column, or vice versa? Plus List of soundcards, which is actually default and sof-hda-default. But changing the volume or muting in alsamixer does not change the missing sound from the speakers and changes made don't survive a boot:
