Remapping Wacom Tablet input on Android 11 using .idc files

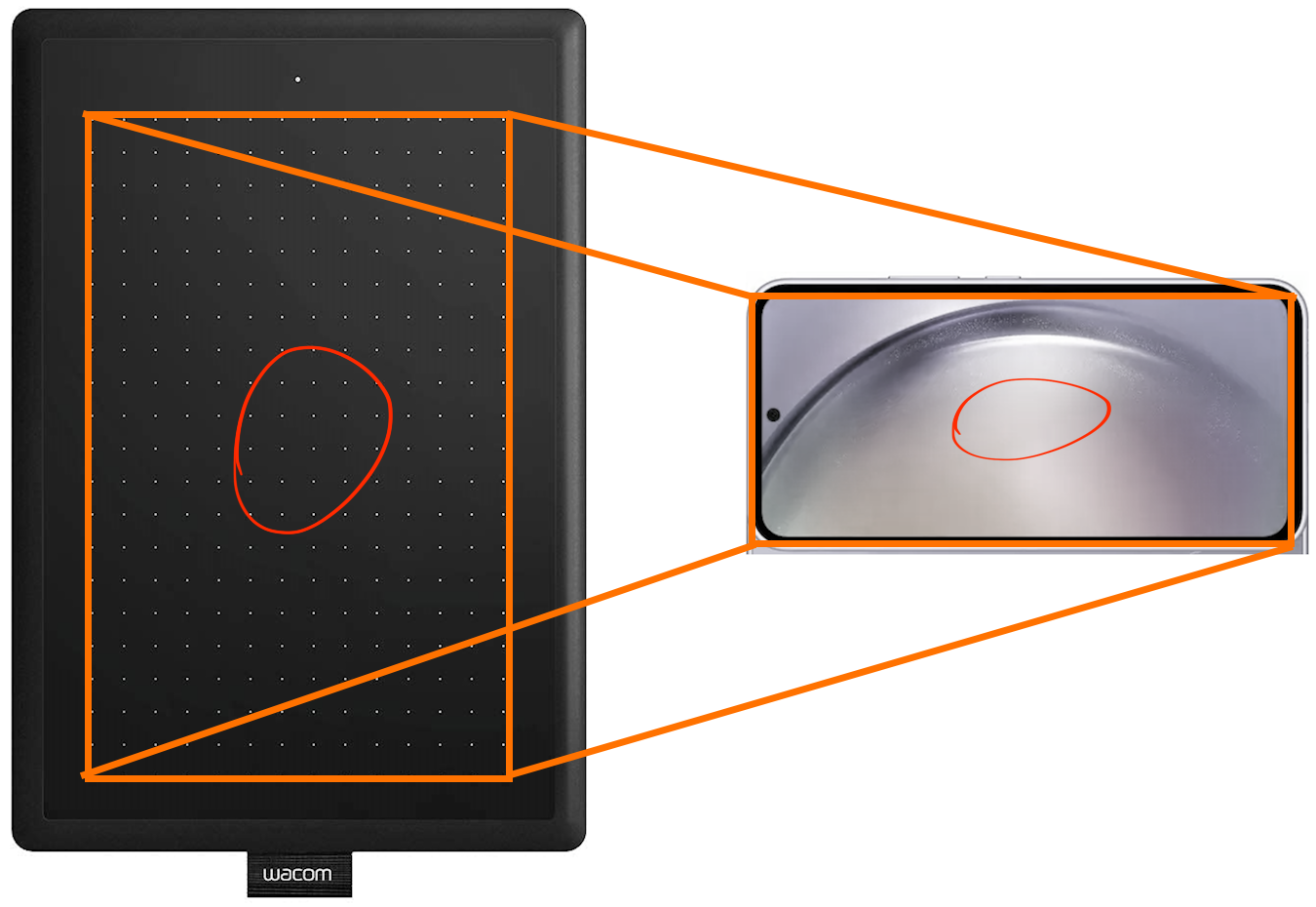

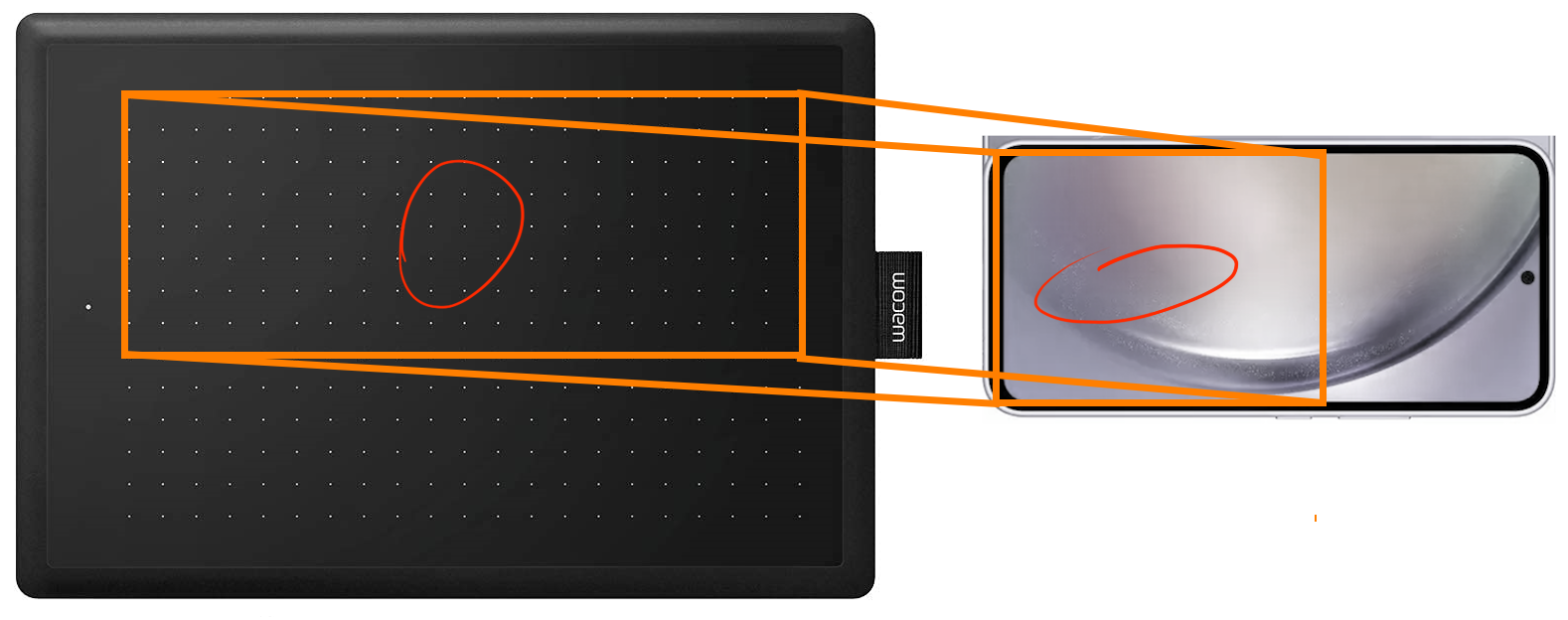

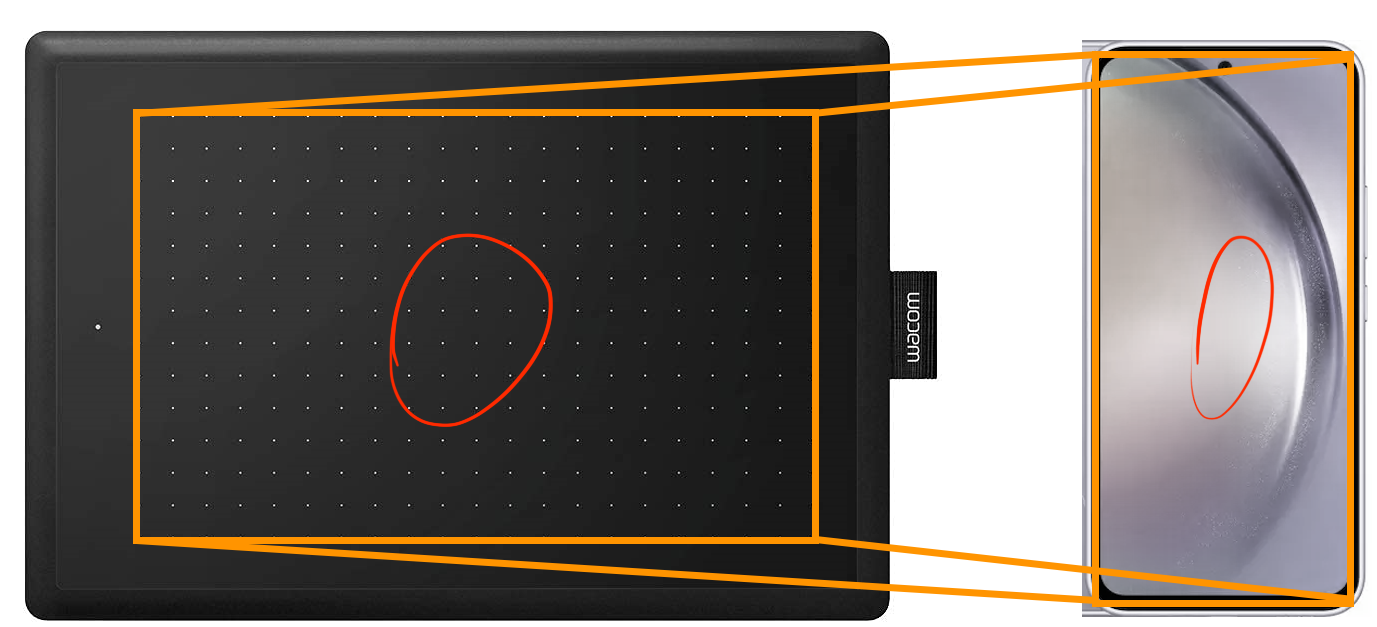

- OS: Android 11 with root access - Tablet: One by Wacom Small CTL-471 ## The Issue ## I'd like to use my Wacom tablet on my Android device. Connected tablet using OTG cable is detected, but it suffers from invalid mapping resulting in heavily squished elipses when circle is drawn on the tablet. In landscape mode, the tablet input does not cover the full screen area, resulting only in half of the screen being able to be controlled What I would like to achieve ---------------------------- - remap the tablet input so it is rotated counter-clockwise 90 degrees when the device is in portrait mode and optionally - rotate in other directions in landscape mode aka. 90°/180° - define tablet min/max X and Y to limit the useable tablet area and match the proportions of the display - circle on the tablet = true circle on the device What I tried ------------ I created Wacom_Bamboo_One_S_Pen.idc file in /system/usr/idc/ with following configuration touch.deviceType = pointer touch.orientationAware = 1​ The configuration file is detected when using dumpsys input | grep -i wacom​ 13: Wacom Bamboo One S Pen ConfigurationFile: /system/usr/idc/Wacom_Bamboo_One_S_Pen.idc Device 13: Wacom Bamboo One S Pen and it does work, as the result when using dumpsys input, the OrientationAware is now true Parameters: ... OrientationAware: true Now the mapping in landscape mode is better, but still invalid Now I tried to modify xScale yScale and output.x output.y with samples found online to check if anything changes, like this touch.deviceType = pointer touch.orientationAware = 1​ output.x = (raw.x - raw.x.min) * (output.width / raw.width) or even using a simple float output.x = 1.0 Even though the config file is detected in dumpsys input | grep -i wacom​ it seems to now be ignored as the values are back to default when checking dumpsys input so, OrientationAware: false even though the config file says it to be true. What am I doing wrong - is it wrong syntax? My knowledge on this topic is very limited, and I've tried to check official documentation , but still without result, so I'm asking for help. Update ------ Examining other files found on the web resulted in confirmation that it is the wrong syntax. I tried this instead: touch.touchPosition.xymix = 1.0 touch.touchPosition.yxmix = 1.0 It seems like xymix and yxmix would allow to flip the input, but dumpsys input reports that these values are still 0.0. OrientationAware stays true with these values, indicating acceptable syntax.
