Is this a normal Disk Partition Configuration?

2 votes
1 answer
886 views

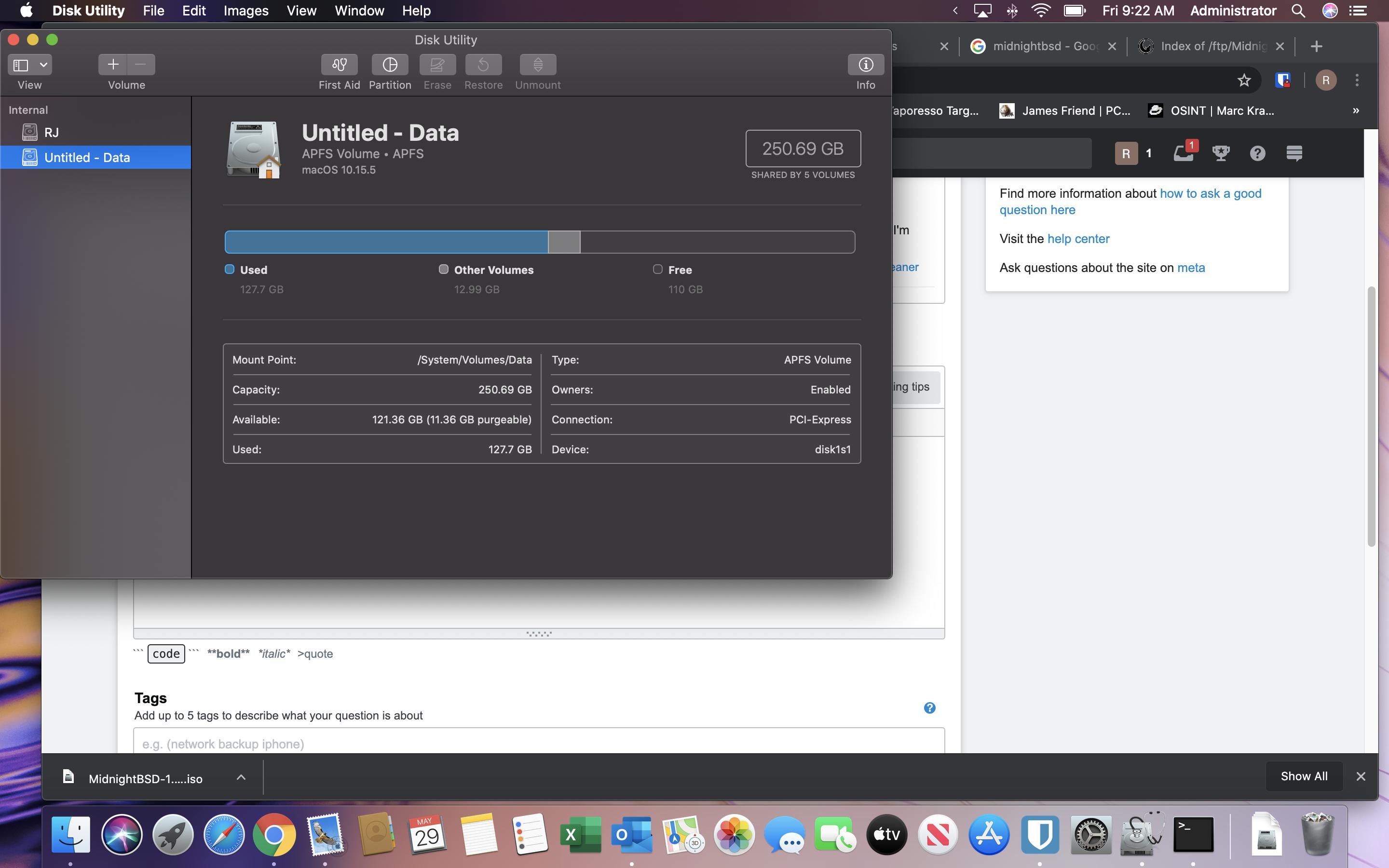

I'm new to mac I just got my first macbook used last week. I was trying to install Windows 10 via boot camp and it told me it could not due to some issue and to check Disk Utility. I have used Linux and Windows to a lesser degree most of my life, but I am embarrassed to say I don't fully understand this. I ran diskutil list & diskutil apfs list and this is the output. I saw these commands on some other post and thought they may be helpful. This is probably completely normal. I am sure I just want to understand. I am on the newest update of Catalina MBP Mid 2017. Also, it is not super important to get Boot Camp running Windows. I was just experimenting, but does anyone see an obvious reason why there would be an issue? Thank you! DISK UTILITY /dev/disk0 (internal, physical): #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *251.0 GB disk0 1: EFI EFI 314.6 MB disk0s1 2: Apple_APFS Container disk1 250.7 GB disk0s2 /dev/disk1 (synthesized): #: TYPE NAME SIZE IDENTIFIER 0: APFS Container Scheme - +250.7 GB disk1 Physical Store disk0s2 1: APFS Volume Untitled - Data 127.1 GB disk1s1 2: APFS Volume Preboot 83.8 MB disk1s2 3: APFS Volume Recovery 528.5 MB disk1s3 4: APFS Volume VM 1.1 GB disk1s4 5: APFS Volume RJ 11.2 GB disk1s5 SuperSecretCPU:~ adminMan$ diskutil apfs list APFS Container (1 found) | +-- Container disk1 A7F6C36A-FBDB-4322-831A-9FC2CEF2606A ==================================================== APFS Container Reference: disk1 Size (Capacity Ceiling): 250685575168 B (250.7 GB) Capacity In Use By Volumes: 140339167232 B (140.3 GB) (56.0% used) Capacity Not Allocated: 110346407936 B (110.3 GB) (44.0% free) | +- Volume disk1s1 A7C6B5CE-2F45-3C34-B29C-317C531A82E8 | --------------------------------------------------- | APFS Volume Disk (Role): disk1s1 (Data) | Name: Untitled - Data (Case-insensitive) | Mount Point: /System/Volumes/Data | Capacity Consumed: 127352475648 B (127.4 GB) | FileVault: No | +-> Volume disk1s2 1A886DD1-7F92-4787-B32A-02620DF632E8 | --------------------------------------------------- | APFS Volume Disk (Role): disk1s2 (Preboot) | Name: Preboot (Case-insensitive) | Mount Point: Not Mounted | Capacity Consumed: 83750912 B (83.8 MB) | FileVault: No | +-> Volume disk1s3 5806096A-0C66-4F74-9773-20B8D47F2E2A | --------------------------------------------------- | APFS Volume Disk (Role): disk1s3 (Recovery) | Name: Recovery (Case-insensitive) | Mount Point: Not Mounted | Capacity Consumed: 528502784 B (528.5 MB) | FileVault: No | +-> Volume disk1s4 5E468A33-0424-49C6-9249-42F0CDF2CFDE | --------------------------------------------------- | APFS Volume Disk (Role): disk1s4 (VM) | Name: VM (Case-insensitive) | Mount Point: /private/var/vm | Capacity Consumed: 1074810880 B (1.1 GB) | FileVault: No | +-> Volume disk1s5 612780D1-B6D1-47E4-9678-E5AE176EB13A --------------------------------------------------- APFS Volume Disk (Role): disk1s5 (System) Name: RJ (Case-insensitive) Mount Point: / Capacity Consumed: 11161202688 B (11.2 GB) FileVault: No
Asked by RJ_P (21 rep)
May 29, 2020, 01:38 PM
Last activity: Jul 4, 2025, 07:09 PM
