How to Setup Triple Monitors with Kali Linux?

4 votes
4 answers
15877 views

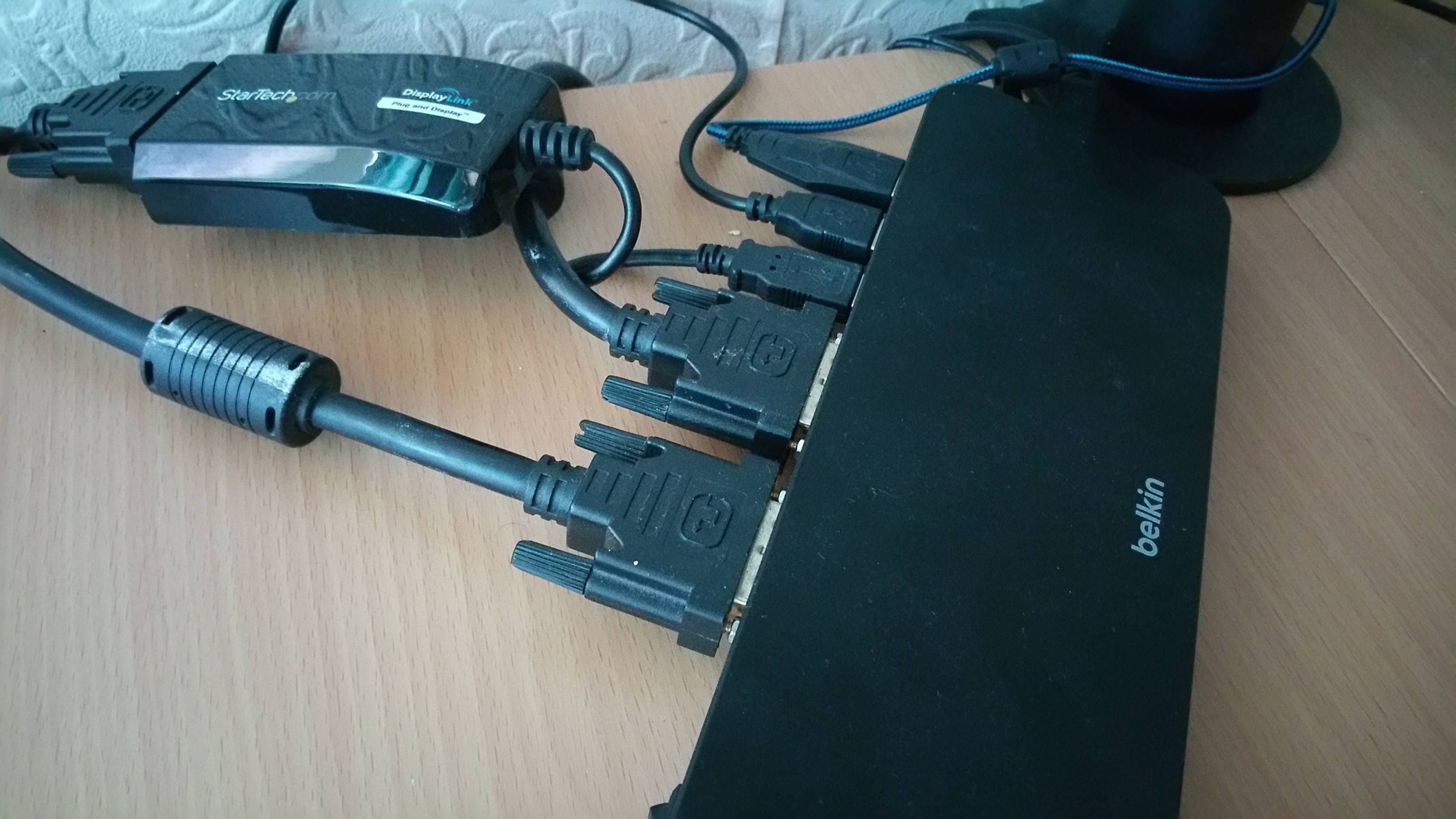

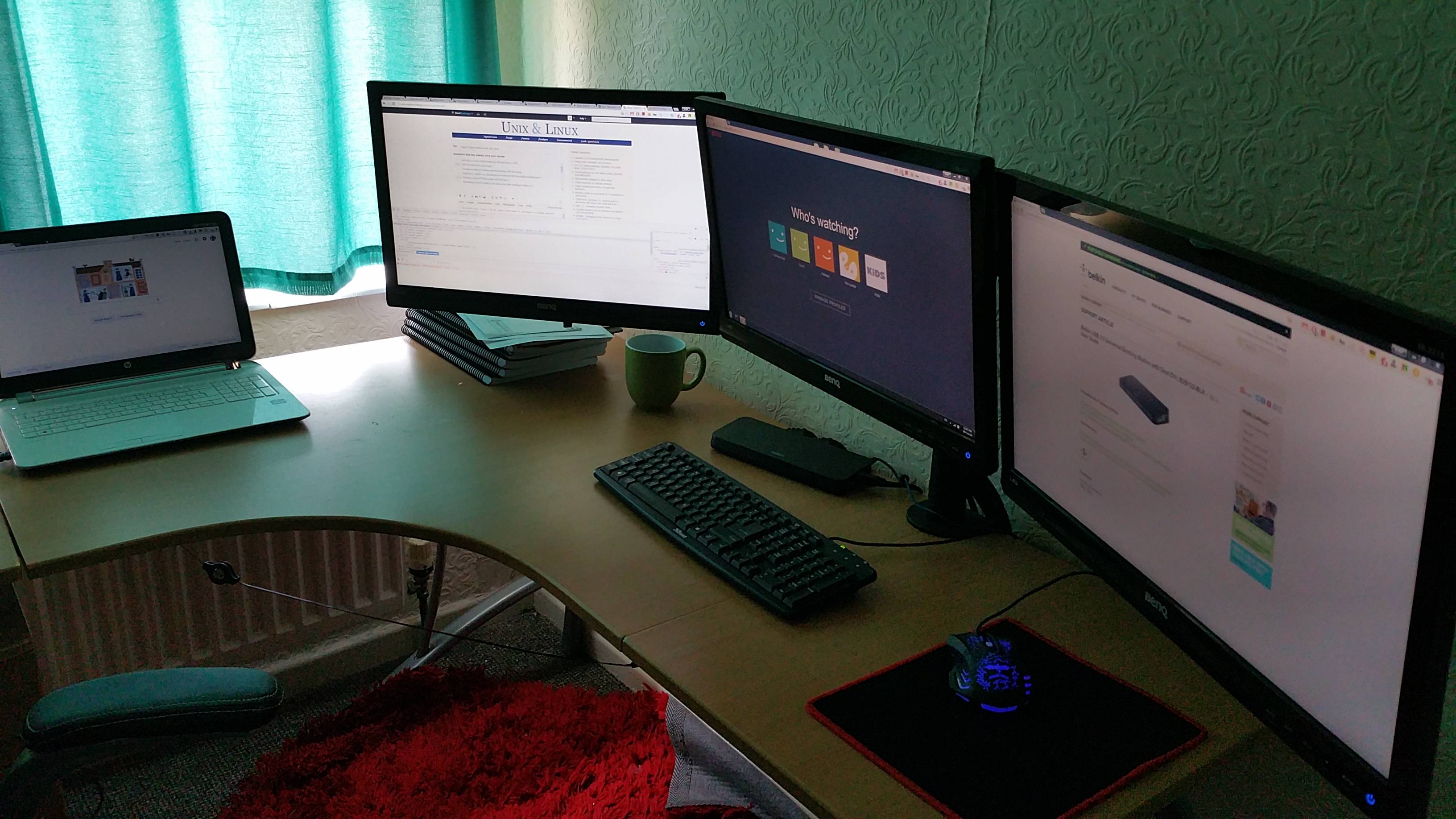

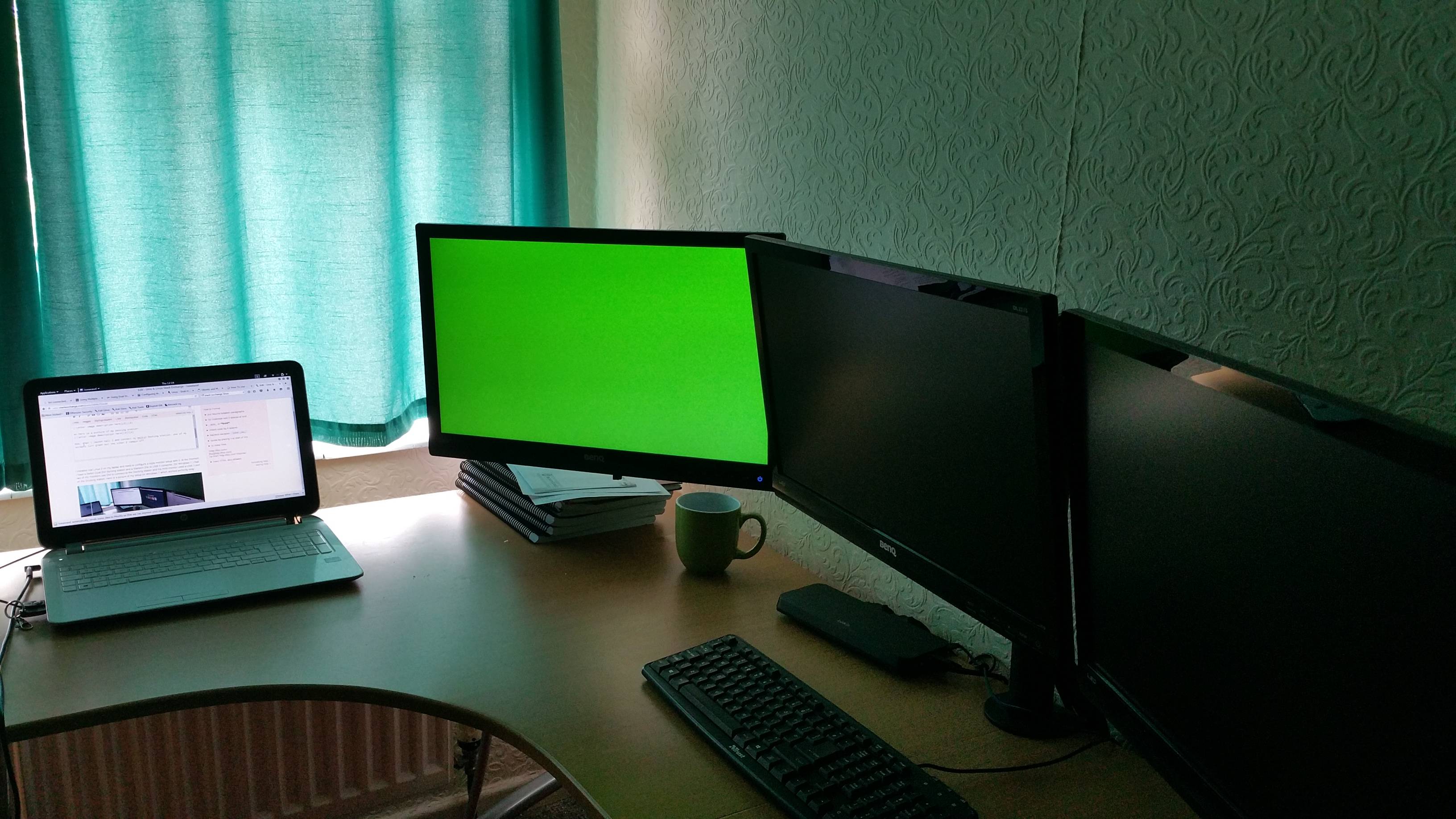

I installed Kali Linux 2 on my laptop and need to configure a triple monitor setup with it. At the moment, I have a Belkin Dual DVI docking station and a Startech DVI to USB 3 converter. On Windows 7, I had two of my monitors use DVI to connect to the Docking station and the third monitor used a USB 3 port on the Docking station. Here is a picture of my setup on Windows 7 which worked perfectly okay: enter image description here An here is a picture of my Docking station: enter image description here Here is a link if you want to know more about the Belkin docking station: https://www.amazon.co.uk/Belkin-B2B122-BLK-Display-Docking-Ultrabooks/dp/B00JG0ZG8Q Now, when I launch Kali 2 and connect my Belkin Docking station, one of my screens turn green but the other 2 remain off: enter image description here Running lsusb **before** connecting the docking station looks like this: root@kali:~# lsusb Bus 004 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub Bus 004 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 003 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 003: ID 064e:9301 Suyin Corp. Bus 001 Device 002: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Running lsusb while the docking station is connected shows the following: root@kali:~# lsusb Bus 004 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub Bus 004 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 003 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 003: ID 064e:9301 Suyin Corp. Bus 001 Device 002: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 017: ID 17e9:4333 DisplayLink Bus 001 Device 016: ID 17e9:028f DisplayLink Bus 001 Device 015: ID 1c4f:0002 SiGma Micro Keyboard TRACER Gamma Ivory Bus 001 Device 014: ID 1bcf:0053 Sunplus Innovation Technology Inc. Bus 001 Device 011: ID 2109:2812 VIA Labs, Inc. VL812 Hub Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Here is my video card information: root@kali:~# lspci | grep VGA 00:02.0 VGA compatible controller: Intel Corporation 3rd Gen Core processor Graphics Controller (rev 09) Here is the result of xrandr command: root@kali:~# xrandr Screen 0: minimum 8 x 8, current 1366 x 768, maximum 32767 x 32767 LVDS1 connected primary 1366x768+0+0 (normal left inverted right x axis y axis) 345mm x 194mm 1366x768 59.99*+ 40.00 1360x768 59.80 59.96 1024x768 60.00 800x600 60.32 56.25 640x480 59.94 DP1 disconnected (normal left inverted right x axis y axis) HDMI1 disconnected (normal left inverted right x axis y axis) VGA1 disconnected (normal left inverted right x axis y axis) VIRTUAL1 disconnected (normal left inverted right x axis y axis) After some testing I found that my mouse and keyboard are recognized through the Docking Station, however, for some reason the DVI's are not. looking at the result of lsusb I noticed that DisplayLink maybe the manufacturer and driver so I did some googling and found that they support Ubuntu but not Debian. Digging a bit deeper, found a script on Github that said it will install DisplayLink drivers for Debian so I used it, however, it said my platform is not supported! root@kali:~/Downloads# ./displaylink-deb.sh DisplayLink driver for Debian GNU/Linux [I]nstall [U]ninstall Select a key: [i/u]: i Checking dependencies... unzip is installed linux-headers-4.3.0-kali1-amd64 is installed dkms is installed lsb-release is installed ------------------------------------------------------ Unsuported platform: Kali kali-rolling This tool is Open Source and feel free to extend it GitHub repo: https://goo.gl/6soXDE ------------------------------------------------------ root@kali:~/Downloads# It may also be worth mentioning that when I open Kali from VMWare Workstation on Windows 7 I'm able to use all 3 monitors: enter image description here Any advice is really appreciated.
Asked by Mico (41 rep)
Jun 9, 2016, 11:18 AM
Last activity: Feb 1, 2025, 06:44 AM
