Realteck ALC274 with a microphone array not working in Mint 21.2, with Intel HDA
0
votes
1
answer
359
views
I got a new windows based laptop and decided to install Mint (Mint 21.2 Cinnamon) on it. This laptop comes with a microphone array around its camera.
I got most of the hardware to work including built-in speakers, so some parts of the audio drivers are working.

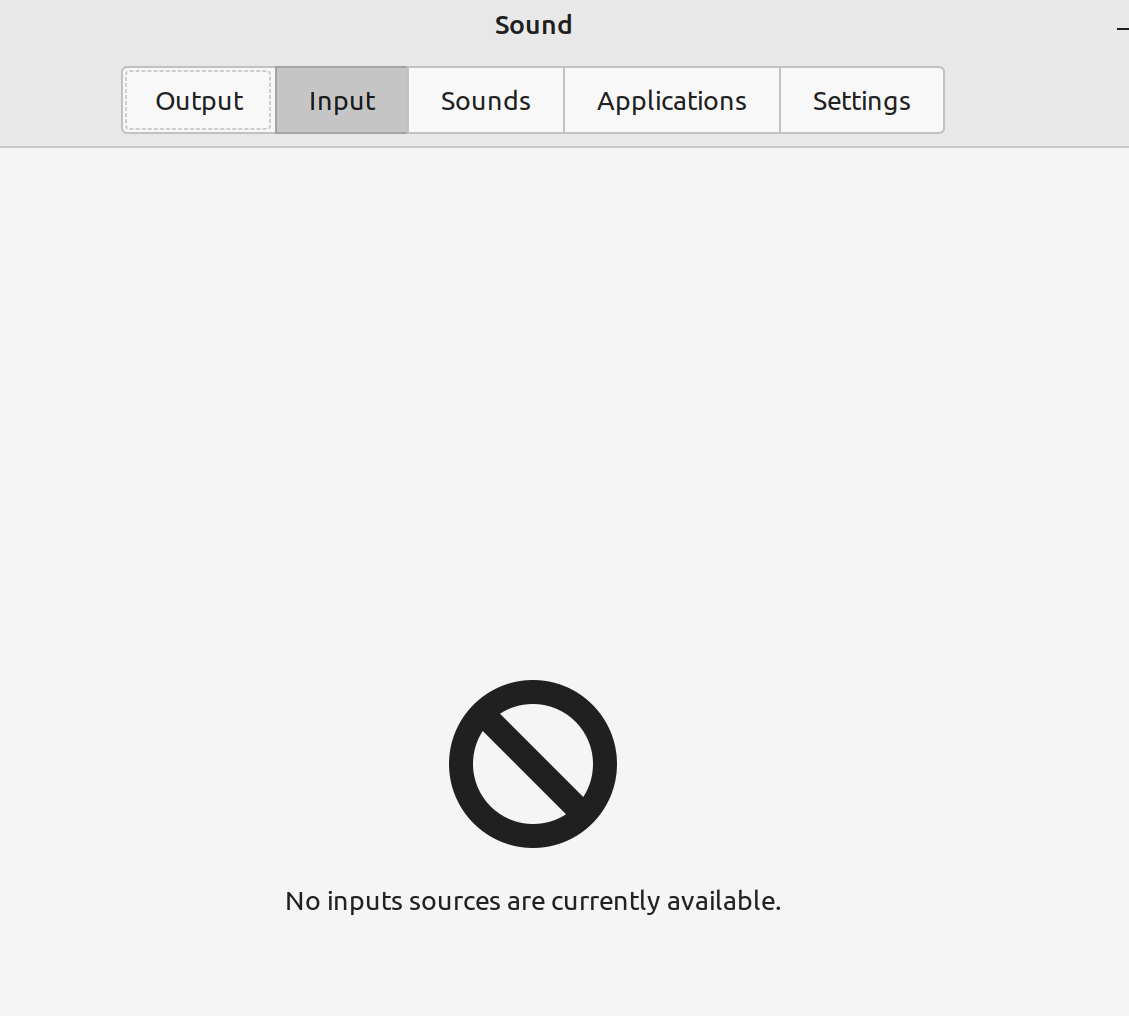

The only thing is that the microphone array does not work... Mint cannot detect the microphone array or any other microphone connected to the side jack.
The array works fine when booting with Windows.
Where else should I look to resolve this?
some tech details:
Mint 21.2 (Based of Ubuntu Jammy)

inxi -A
Audio:
Device-1: Intel driver: snd_hda_intel
Sound Server-1: ALSA v: k5.15.0-84-generic running: yes
Sound Server-2: PulseAudio v: 15.99.1 running: yes
Sound Server-3: PipeWire v: 0.3.48 running: yes
dmesg | grep audio
[ 66.531528] snd_hda_intel 0000:00:1f.3: couldn't bind with audio component
[ 66.587873] snd_hda_codec_realtek hdaudioC0D0: autoconfig for ALC274: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
[ 66.587890] snd_hda_codec_realtek hdaudioC0D0: speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[ 66.587897] snd_hda_codec_realtek hdaudioC0D0: hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[ 66.587902] snd_hda_codec_realtek hdaudioC0D0: mono: mono_out=0x0
[ 66.587905] snd_hda_codec_realtek hdaudioC0D0: inputs:
[ 66.587908] snd_hda_codec_realtek hdaudioC0D0: Mic=0x19
[ 624.313215] snd_hda_codec_realtek hdaudioC0D0: hda-codec: reconfiguring
[ 624.313218] snd_hda_codec_realtek hdaudioC0D0: The codec is being used, can't reconfigure.
pactl list sources
Source #1
State: SUSPENDED
Name: alsa_output.pci-0000_00_1f.3.analog-stereo.monitor
Description: Monitor of Built-in Audio Analogue Stereo
Driver: module-alsa-card.c
Sample Specification: s16le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 25
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB, front-right: 65536 / 100% / 0.00 dB
balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor of Sink: alsa_output.pci-0000_00_1f.3.analog-stereo
Latency: 0 usec, configured 0 usec
Flags: DECIBEL_VOLUME LATENCY
Properties:
device.description = "Monitor of Built-in Audio Analogue Stereo"
device.class = "monitor"
alsa.card = "0"
alsa.card_name = "HDA Intel PCH"
alsa.long_card_name = "HDA Intel PCH at 0x603d1a0000 irq 198"
alsa.driver_name = "snd_hda_intel"
device.bus_path = "pci-0000:00:1f.3"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "51ca"
device.form_factor = "internal"
device.string = "0"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
Formats:
pcm
