Unable to load into installed linuxmint os
1
vote
0
answers
127
views
I currently have Windows and Arch Linux installed on a drive with a GPT partition and grub. I am now trying to install Linux Mint alongside these two.
I am installing Mint on a second HDD (same PC) with an MBR partition and I am having trouble running the installed OS. I have tried adding it—not together, but in different tries—to both EFI (one in the GPT partition and one in the MBR partition) and both are giving errors.
The errors are "load kernel first, msdos not found". I will try to attach a screenshot. It comes at startup when I try to boot Linux Mint from grub.
I have tried everything. I can't format the entire second disk to GPT since I have data in other partitions of the disk. Any help would be appreciated.
I have tried changing boot to legacy, it also didn't work.
There seems to be a tool,
Edit2:-Adding boot-info from boot repair
mbr2gpt but I can't get it to work. I have no OS other than Linux Mint (installing) in the second HDD.
I don't know if its gpt issue or something else.
Ubuntu also seems to have issue. It said some error like not authorized to access grub in gpt.
I have tried to install grub in mbr but it seems to overwrite grub with gpt and I couldn't login to arch.
Edit1:-

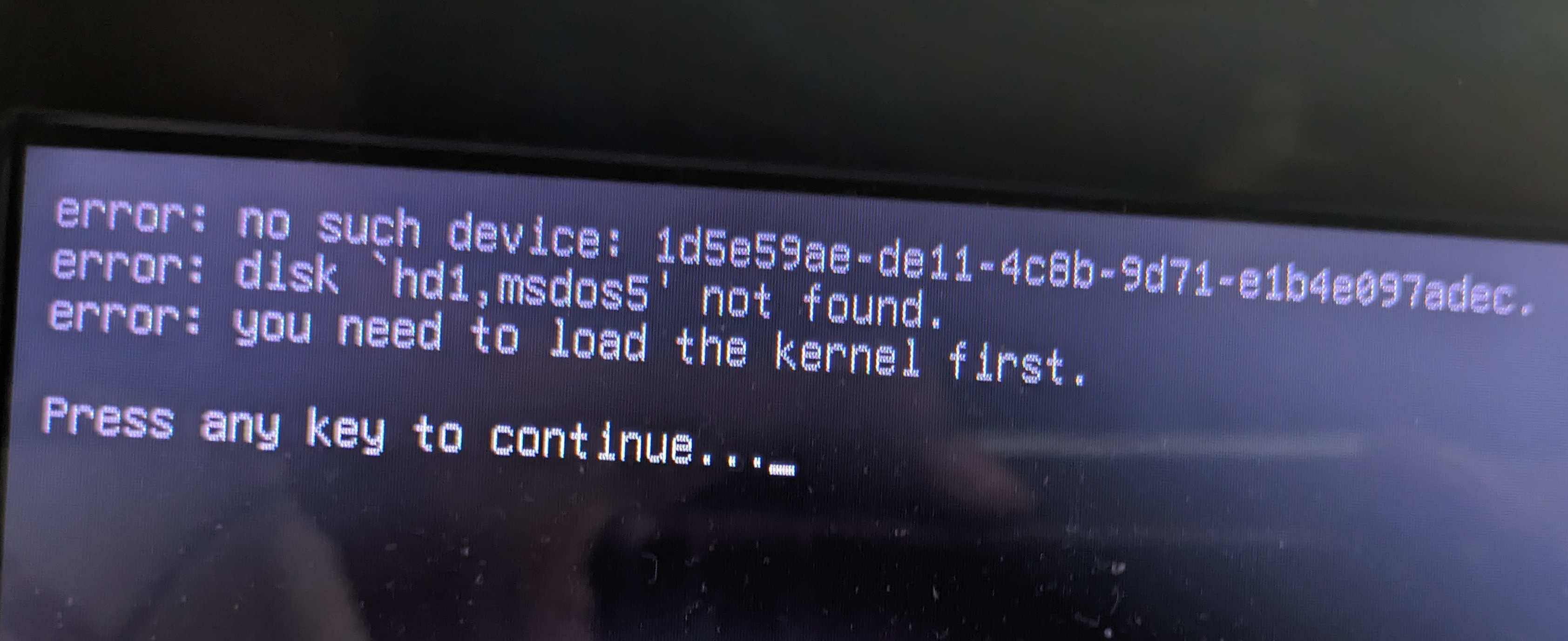

This is the error on selecting linuxmint from grub
Edit2:-Adding boot-info from boot repair
boot-repair-4ppa200 [20240525_2040]
============================== Boot Info Summary ===============================
=> Grub2 (v2.00) is installed in the MBR of /dev/sda and looks at sector 1 of
the same hard drive for core.img. core.img is at this location and looks
for (,msdos3)/boot/grub. It also embeds following components:
modules
---------------------------------------------------------------------------
fshelp ext2 part_msdos biosdisk
---------------------------------------------------------------------------
=> No boot loader is installed in the MBR of /dev/sdb.
=> Syslinux MBR (5.00 and higher) is installed in the MBR of /dev/sdc.
sda1: __________________________________________________________________________
File system: vfat
Boot sector type: FAT32
Boot sector info: No errors found in the Boot Parameter Block.
Operating System:
Boot files:
sda2: __________________________________________________________________________
File system: ntfs
Boot sector type: Windows 8/10/11/2012: NTFS
Boot sector info: No errors found in the Boot Parameter Block.
Operating System:
Boot files:
sda3: __________________________________________________________________________
File system: Extended Partition
Boot sector type: -
Boot sector info:
sda5: __________________________________________________________________________
File system: ext4
Boot sector type: -
Boot sector info:
Operating System: LMDE 6 (faye)
Boot files: /etc/fstab /etc/default/grub
sda6: __________________________________________________________________________
File system: ext4
Boot sector type: -
Boot sector info:
Operating System:
Boot files:
sda7: __________________________________________________________________________
File system: swap
Boot sector type: -
Boot sector info:
sda4: __________________________________________________________________________
File system: ntfs
Boot sector type: Windows 7/2008: NTFS
Boot sector info: No errors found in the Boot Parameter Block.
Operating System:
Boot files:
sdb1: __________________________________________________________________________
File system: vfat
Boot sector type: Windows 7/2008: FAT32
Boot sector info: No errors found in the Boot Parameter Block.
Operating System:
Boot files: /efi/Boot/bootx64.efi /efi/GRUB/grubx64.efi
/efi/Microsoft/Boot/bootmgfw.efi
/efi/Microsoft/Boot/bootmgr.efi
sdb2: __________________________________________________________________________
File system:
Boot sector type: -
Boot sector info:
sdb3: __________________________________________________________________________
File system: ntfs
Boot sector type: Windows 7/2008: NTFS
Boot sector info: No errors found in the Boot Parameter Block.
Operating System: Windows 8 or 10
Boot files: /Windows/System32/winload.exe
sdb4: __________________________________________________________________________
File system: ntfs
Boot sector type: Windows 8/10/11/2012: NTFS
Boot sector info: No errors found in the Boot Parameter Block.
Operating System:
Boot files:
sdb5: __________________________________________________________________________
File system: ext4
Boot sector type: -
Boot sector info:
Operating System: Arch Linux
Boot files: /boot/grub/grub.cfg /etc/fstab /etc/default/grub
sdb6: __________________________________________________________________________
File system: swap
Boot sector type: -
Boot sector info:
sdc1: __________________________________________________________________________
File system: ntfs
Boot sector type: SYSLINUX 6.04
Boot sector info: Syslinux looks at sector 44096 of /dev/sdc1 for its
second stage. The integrity check of Syslinux failed.
No errors found in the Boot Parameter Block.
Operating System:
Boot files: /boot/grub/grub.cfg /syslinux.cfg /ldlinux.sys
sdc2: __________________________________________________________________________
File system: vfat
Boot sector type: FAT16
Boot sector info: According to the info in the boot sector, sdc2 starts
at sector 0. But according to the info from fdisk,
sdc2 starts at sector 61437880. According to the info
in the boot sector, sdc2 has 0 sectors.
Operating System:
Boot files: /efi/Boot/bootaa64.efi /efi/Boot/bootarm.efi
/efi/Boot/bootia32.efi /efi/Boot/bootx64.efi
/efi/Rufus/exfat_aa64.efi /efi/Rufus/exfat_arm.efi
/efi/Rufus/exfat_ia32.efi /efi/Rufus/exfat_x64.efi
/efi/Rufus/ntfs_aa64.efi /efi/Rufus/ntfs_arm.efi
/efi/Rufus/ntfs_ia32.efi /efi/Rufus/ntfs_x64.efi
================================ 3 OS detected =================================
OS#1: LMDE 6 (faye) on sda5
OS#2: Arch Linux on sdb5
OS#3: Windows 8 or 10 on sdb3
================================ Host/Hardware =================================
CPU architecture: 64-bit
Video: 4th Gen Core Processor Integrated Graphics Controller from Intel Corporation
Live-session OS is Linuxmint 64-bit (LMDE 6 (faye), faye, x86_64)
===================================== UEFI =====================================
BIOS/UEFI firmware: 79CN46WW(V3.05)(1.70) from LENOVO
The firmware is EFI-compatible, and is set in EFI-mode for this live-session.
SecureBoot disabled - SecureBoot disabled - Please report this message to boot.repair@gmail.com.
BootCurrent: 0000
Timeout: 2 seconds
BootOrder: 0003,0002,2001,2002,2003
Boot0000* EFI USB Device (Generic Flash Disk) PciRoot(0x0)/Pci(0x14,0x0)/USB(0,0)/HD(2,MBR,0x29c46,0x3a977b8,0x800)RC
Boot0002* Windows Boot Manager HD(1,GPT,d51273d0-888f-4ca8-9490-a9ba15966eae,0x7d800,0x32000)/File(\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI)WINDOWS.........x...B.C.D.O.B.J.E.C.T.=.{.9.d.e.a.8.6.2.c.-.5.c.d.d.-.4.e.7.0.-.a.c.c.1.-.f.3.2.b.3.4.4.d.4.7.9.5.}...a............. ...
Boot0003* GRUB HD(1,GPT,d51273d0-888f-4ca8-9490-a9ba15966eae,0x7d800,0x32000)/File(\EFI\GRUB\grubx64.efi)
Boot2001* EFI USB Device RC
Boot2002* EFI DVD/CDROM RC
Boot2003* EFI Network RC
04fb9982cb9d93492d3220cf08f03f02 sdb1/Boot/bootx64.efi
a2418029711ac3b3e3bfd27223a1fb6d sdb1/GRUB/grubx64.efi
04fb9982cb9d93492d3220cf08f03f02 sdb1/Microsoft/Boot/bootmgfw.efi
8ea8644096bf0b8227e6541e9a790f8c sdb1/Microsoft/Boot/bootmgr.efi
e099b8f8463ef839720fda267e70eeb1 sdc2/Boot/bootaa64.efi
cfd0ce50df258fc747f5753ecf6ec312 sdc2/Boot/bootarm.efi
19a65a943434a625a53490391fa28349 sdc2/Boot/bootia32.efi
3fdfc83db7958b2eac1e720334f12147 sdc2/Boot/bootx64.efi
4a4e8e66e0d3712f19d964a7bca4fafc sdc2/Rufus/exfat_aa64.efi
93f66a43d49990f986a81c67843d66a5 sdc2/Rufus/exfat_arm.efi
3c5f23f198267df4a64fe2a3587039e7 sdc2/Rufus/exfat_ia32.efi
81d015f35982a0bbf4056f09a2eca39a sdc2/Rufus/exfat_x64.efi
a03e27b0e7f2e03519166bf6b41f68c5 sdc2/Rufus/ntfs_aa64.efi
2f31c70d3f4235476cd9ed6a18e13221 sdc2/Rufus/ntfs_arm.efi
7e7e67c33ce9ff2961a4be4080d23352 sdc2/Rufus/ntfs_ia32.efi
30c7e0752040cf5e31843d897a53e055 sdc2/Rufus/ntfs_x64.efi
============================= Drive/Partition Info =============================
Disks info: ____________________________________________________________________
sdb : is-GPT, no-BIOSboot, has---ESP, not-usb, not-mmc, has-os, has-win, 2048 sectors * 512 bytes
sdc : notGPT, no-BIOSboot, has---ESP, usb-disk, not-mmc, no-os, no-wind, 2048 sectors * 512 bytes
sda : notGPT, no-BIOSboot, has-noESP, not-usb, not-mmc, has-os, no-wind, 2048 sectors * 512 bytes
Partitions info (1/3): _________________________________________________________
sdb4 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, farbios
sdb5 : is-os, 64, pacman, no-docgrub, grub2, grub-install, grubenv-ok, grub-mkconfig -o /boot/grub, farbios
sdb3 : is-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, farbios
sdb1 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, not-far
sdc2 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, not-far
sda4 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, farbios
sda2 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, not-far
sda5 : is-os, 64, apt-get, grub-pc , grub2, grub-install, no-grubenv, update-grub, not-far
sda1 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, not-far
sda6 : no-os, 32, nopakmgr, no-docgrub, nogrub, nogrubinstall, no-grubenv, noupdategrub, not-far
Partitions info (2/3): _________________________________________________________
sdb4 : isnotESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sdb5 : isnotESP, fstab-without-efi, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sdb3 : isnotESP, part-has-no-fstab, no-nt, haswinload, no-recov-nor-hid, no-bmgr, notwinboot
sdb1 : is---ESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sdc2 : is---ESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sda4 : isnotESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sda2 : isnotESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sda5 : isnotESP, fstab-has-goodEFI, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sda1 : isnotESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
sda6 : isnotESP, part-has-no-fstab, no-nt, no-winload, no-recov-nor-hid, no-bmgr, notwinboot
Partitions info (3/3): _________________________________________________________
sdb4 : not--sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sdb
sdb5 : not--sepboot, with-boot, fstab-without-boot, not-sep-usr, with--usr, fstab-without-usr, std-grub.d, sdb
sdb3 : not--sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sdb
sdb1 : not--sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sdb
sdc2 : not--sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sdc
sda4 : not--sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sda
sda2 : not--sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sda
sda5 : not--sepboot, with-boot, fstab-without-boot, not-sep-usr, with--usr, fstab-without-usr, std-grub.d, sda
sda1 : is---sepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sda
sda6 : maybesepboot, no---boot, part-has-no-fstab, not-sep-usr, no---usr, part-has-no-fstab, no--grub.d, sda
fdisk -l (filtered): ___________________________________________________________
Disk sda: 232.89 GiB, 250059350016 bytes, 488397168 sectors
Disk identifier: 0xf638964d
Boot Start End Sectors Size Id Type
sda1 2048 206847 204800 100M 7 HPFS/NTFS/exFAT
sda2 206848 39266303 39059456 18.6G 7 HPFS/NTFS/exFAT
sda3 39270398 205006847 165736450 79G 5 Extended
sda4 205006848 488392703 283385856 135.1G 7 HPFS/NTFS/exFAT
sda5 39272448 72040447 32768000 15.6G 83 Linux
sda6 72042496 135530495 63488000 30.3G 83 Linux
sda7 135532544 146796543 11264000 5.4G 82 Linux swap / Solaris
Partition table entries are not in disk order.
Disk sdb: 447.13 GiB, 480103981056 bytes, 937703088 sectors
Disk identifier: 3DAEA9F5-FE33-4404-8FF7-EFDA8914769F
Start End Sectors Size Type
sdb1 514048 718847 204800 100M EFI System
sdb2 718848 751615 32768 16M Microsoft reserved
sdb3 751616 512751615 512000000 244.1G Microsoft basic data
sdb4 512751616 753379327 240627712 114.7G Microsoft basic data
sdb5 753379328 921151487 167772160 80G Linux filesystem
sdb6 921151488 937701375 16549888 7.9G Linux swap
Disk sdc: 29.3 GiB, 31457280000 bytes, 61440000 sectors
Disk identifier: 0x00029c46
Boot Start End Sectors Size Id Type
sdc1 * 2048 61437879 61435832 29.3G 7 HPFS/NTFS/exFAT
sdc2 61437880 61439927 2048 1M ef EFI (FAT-12/16/32)
parted -lm (filtered): _________________________________________________________
sda:250GB:scsi:512:512:msdos:ATA TOSHIBA MK2555GS:;
1:1049kB:106MB:105MB:fat32::;
2:106MB:20.1GB:20.0GB:ntfs::;
3:20.1GB:105GB:84.9GB:::;
5:20.1GB:36.9GB:16.8GB:ext4::;
6:36.9GB:69.4GB:32.5GB:ext4::;
7:69.4GB:75.2GB:5767MB:linux-swap(v1)::swap;
4:105GB:250GB:145GB:ntfs::;
sdb:480GB:scsi:512:512:gpt:ATA GIGABYTE GP-GSTF:;
1:263MB:368MB:105MB:fat32:EFI system partition:boot, esp;
2:368MB:385MB:16.8MB::Microsoft reserved partition:msftres;
3:385MB:263GB:262GB:ntfs:Basic data partition:msftdata;
4:263GB:386GB:123GB:ntfs:Basic data partition:msftdata;
5:386GB:472GB:85.9GB:ext4::;
6:472GB:480GB:8474MB:linux-swap(v1)::swap;
sdc:31.5GB:scsi:512:512:msdos:Generic Flash Disk:;
1:1049kB:31.5GB:31.5GB:ntfs::boot;
2:31.5GB:31.5GB:1049kB:::esp;
Free space >10MiB: ______________________________________________________________
sda: 71678MiB:100101MiB:28423MiB
sdb: 0.02MiB:251MiB:251MiB
blkid (filtered): ______________________________________________________________
NAME FSTYPE UUID PARTUUID LABEL PARTLABEL
sda
├─sda1 vfat 5723-D062 f638964d-01
├─sda2 ntfs 267C88077C87CFCB f638964d-02 New Volume
├─sda3 f638964d-03
├─sda4 ntfs DC8C86758C8649CA f638964d-04 New Volume
├─sda5 ext4 36e0d91a-caa4-40b8-bd15-d264910228dd f638964d-05
├─sda6 ext4 e9f531a4-b065-4a8c-a0d3-756b486e5d84 f638964d-06
└─sda7 swap 35401696-3044-46b3-82f3-d6eb6e9151a9 f638964d-07
sdb
├─sdb1 vfat 3416-50EE d51273d0-888f-4ca8-9490-a9ba15966eae EFI system partition
├─sdb2 751b43fb-bbae-402c-87ef-8a8745bb3804 Microsoft reserved partition
├─sdb3 ntfs FCB040C8B0408ADA fb0cea09-889d-43f1-89a1-e6ea4e84b376 Basic data partition
├─sdb4 ntfs 3894A28694A2466A 97dcb553-4f8a-4b44-9e73-8176de7968ce New Volume Basic data partition
├─sdb5 ext4 959afc21-ab26-4c23-82b1-cd4ad6afb826 82c37fd0-5918-437f-af1e-ad9d408c52f9
└─sdb6 swap 302c29c8-cfc0-43af-a5ac-49ecb572b079 57783657-fb60-47ae-befe-2f8b2780c769
sdc
├─sdc1 ntfs 64D05309D052E0BA 00029c46-01 LMDE 6 Cinnamon 64-bit
└─sdc2 vfat 5FA3-F2DA 00029c46-02 UEFI_NTFS
Mount points (filtered): _______________________________________________________
Avail Use% Mounted on
/dev/sda1 0 100% /mnt/boot-sav/sda1
/dev/sda2 1G 94% /mnt/boot-sav/sda2
/dev/sda4 7G 95% /mnt/boot-sav/sda4
/dev/sda5 7.4G 46% /mnt/boot-sav/sda5
/dev/sda6 28.1G 0% /mnt/boot-sav/sda6
/dev/sdb1 68.5M 29% /mnt/boot-sav/sdb1
/dev/sdb3 175.7G 28% /mnt/boot-sav/sdb3
/dev/sdb4 44.5G 61% /mnt/boot-sav/sdb4
/dev/sdb5 40G 44% /mnt/boot-sav/sdb5
/dev/sdc1 26.7G 9% /run/live/medium
/dev/sdc1 26.7G 9% /usr/lib/live/mount/medium
/dev/sdc2 126K 87% /mnt/boot-sav/sdc2
overlay 1.8G 5% /
Mount options (filtered): ______________________________________________________
/dev/sda1 vfat rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=ascii,shortname=mixed,utf8,errors=remount-ro
/dev/sda2 fuseblk rw,relatime,user_id=0,group_id=0,allow_other,blksize=4096
/dev/sda4 fuseblk rw,relatime,user_id=0,group_id=0,allow_other,blksize=4096
/dev/sda5 ext4 rw,relatime
/dev/sda6 ext4 rw,relatime
/dev/sdb1 vfat rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=ascii,shortname=mixed,utf8,errors=remount-ro
/dev/sdb3 fuseblk rw,relatime,user_id=0,group_id=0,allow_other,blksize=4096
/dev/sdb4 fuseblk rw,relatime,user_id=0,group_id=0,allow_other,blksize=4096
/dev/sdb5 ext4 rw,relatime
/dev/sdc1 fuseblk rw,relatime,user_id=0,group_id=0,allow_other,blksize=4096
/dev/sdc1 fuseblk rw,relatime,user_id=0,group_id=0,allow_other,blksize=4096
/dev/sdc2 vfat rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=ascii,shortname=mixed,utf8,errors=remount-ro
==================== sda1: Location of files loaded by Grub ====================
GiB - GB File Fragment(s)
?? = ?? vmlinuz-6.1.0-12-amd64 1
?? = ?? initrd.img-6.1.0-12-amd64 2
?? = ?? initrd.img-6.1.0-12-amd64.dpkg-bak 2
========================== sda5/etc/fstab (filtered) ===========================
proc /proc proc defaults 0 0
UUID=3416-50EE /boot/efi vfat defaults 0 1
UUID=36e0d91a-caa4-40b8-bd15-d264910228dd / ext4 rw,errors=remount-ro 0 1
UUID=35401696-3044-46b3-82f3-d6eb6e9151a9 swap swap sw 0 0
UUID=e9f531a4-b065-4a8c-a0d3-756b486e5d84 /home ext4 rw,errors=remount-ro 0 0
======================= sda5/etc/default/grub (filtered) =======================
GRUB_DEFAULT=0
GRUB_TIMEOUT=5
GRUB_DISTRIBUTOR=lsb_release -i -s 2> /dev/null || echo Debian
GRUB_CMDLINE_LINUX_DEFAULT="quiet"
GRUB_CMDLINE_LINUX=""
==================== sda5: Location of files loaded by Grub ====================
GiB - GB File Fragment(s)
28.007579803 = 30.072909824 boot/vmlinuz-6.1.0-12-amd64 1
28.007579803 = 30.072909824 vmlinuz 1
28.007579803 = 30.072909824 vmlinuz.old 1
29.340026855 = 31.503613952 boot/initrd.img-6.1.0-12-amd64 1
29.340026855 = 31.503613952 initrd.img 1
29.340026855 = 31.503613952 initrd.img.old 1
===================== sda5: ls -l /etc/grub.d/ (filtered) ======================
-rwxr-xr-x 1 root root 14123 Apr 23 2023 10_linux
-rwxr-xr-x 1 root root 14180 Apr 23 2023 20_linux_xen
-rwxr-xr-x 1 root root 12923 Apr 23 2023 30_os-prober
-rwxr-xr-x 1 root root 1372 Apr 23 2023 30_uefi-firmware
-rwxr-xr-x 1 root root 722 Feb 26 2023 35_fwupd
-rwxr-xr-x 1 root root 214 Apr 23 2023 40_custom
-rwxr-xr-x 1 root root 215 Apr 23 2023 41_custom
=========================== sda5/etc/grub.d/35_fwupd ===========================
#! /bin/sh
# SPDX-License-Identifier: LGPL-2.1+
set -e
[ -d ${pkgdatadir:?} ]
# shellcheck source=/dev/null
. "$pkgdatadir/grub-mkconfig_lib"
if [ -f /var/lib/fwupd/uefi_capsule.conf ] &&
ls /sys/firmware/efi/efivars/fwupd-*-0abba7dc-e516-4167-bbf5-4d9d1c739416 1>/dev/null 2>&1; then
. /var/lib/fwupd/uefi_capsule.conf
if [ "${EFI_PATH}" != "" ] && [ "${ESP}" != "" ]; then
echo "Adding Linux Firmware Updater entry" >&2
cat /dev/null
prepare_grub_to_access_device "$(${grub_probe} --target=device ${ESP})" | sed -e "s/^/\t/"
cat
UUID=959afc21-ab26-4c23-82b1-cd4ad6afb826 / ext4 rw,relatime 0 1
UUID=3416-50EE /efi vfat rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=ascii,shortname=mixed,utf8,errors=remount-ro 0 2
UUID=302c29c8-cfc0-43af-a5ac-49ecb572b079 none swap defaults 0 0
======================= sdb5/etc/default/grub (filtered) =======================
GRUB_DEFAULT=0
GRUB_TIMEOUT=-1
GRUB_DISTRIBUTOR="Arch"
GRUB_CMDLINE_LINUX_DEFAULT="loglevel=3 quiet"
GRUB_CMDLINE_LINUX=""
GRUB_PRELOAD_MODULES="part_gpt part_msdos"
GRUB_TIMEOUT_STYLE=menu
GRUB_TERMINAL_INPUT=console
GRUB_GFXMODE=auto
GRUB_GFXPAYLOAD_LINUX=keep
GRUB_DISABLE_RECOVERY=true
GRUB_DISABLE_OS_PROBER=false
==================== sdb5: Location of files loaded by Grub ====================
GiB - GB File Fragment(s)
433.167007446 = 465.109532672 boot/grub/grub.cfg 1
384.229732513 = 412.563533824 boot/vmlinuz 1
379.989253998 = 408.010354688 boot/vmlinuz-linux 2
395.520416260 = 424.686813184 boot/vmlinuz.old 1
427.176753998 = 458.677547008 boot/initramfs-linux-fallback.img 12
365.950191498 = 392.936026112 boot/initramfs-linux.img 2
===================== sdb5: ls -l /etc/grub.d/ (filtered) ======================
-rwxr-xr-x 1 root root 12579 Mar 16 19:09 10_linux
lrwxrwxrwx 1 root root 34 May 18 14:48 15_ostree -> /usr/lib/libostree/grub2-15_ostree
-rwxr-xr-x 1 root root 14341 Mar 16 19:09 20_linux_xen
-rwxr-xr-x 1 root root 786 Mar 16 19:09 25_bli
-rwxr-xr-x 1 root root 12289 Mar 16 19:09 30_os-prober
-rwxr-xr-x 1 root root 1174 Mar 16 19:09 30_uefi-firmware
-rwxr-xr-x 1 root root 214 Mar 16 19:09 40_custom
-rwxr-xr-x 1 root root 215 Mar 16 19:09 41_custom
============================ sdb5/etc/grub.d/25_bli ============================
#! /bin/sh
set -e
# grub-mkconfig helper script.
# Copyright (C) 2023 Free Software Foundation, Inc.
#
# GRUB is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# GRUB is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with GRUB. If not, see .
cat << EOF
if [ "\$grub_platform" = "efi" ]; then
insmod bli
fi
EOF
====================== sdc1/boot/grub/grub.cfg (filtered) ======================
Start LMDE 6 64-bit
Start LMDE 6 64-bit (compatibility mode)
Boot from next volume
UEFI Firmware Settings
Memory test
========================= sdc1/syslinux.cfg (filtered) =========================
DEFAULT loadconfig
LABEL loadconfig
CONFIG /isolinux/isolinux.cfg
APPEND /isolinux/
==================== sdc1: Location of files loaded by Grub ====================
GiB - GB File Fragment(s)
?? = ?? boot/grub/grub.cfg
================== sdc1: Location of files loaded by Syslinux ==================
GiB - GB File Fragment(s)
?? = ?? syslinux.cfg
?? = ?? ldlinux.sys 1
Suggested repair: ______________________________________________________________
The default repair of the Boot-Repair utility would purge (in order to fix packages) and reinstall the grub-efi of
sda5,
using the following options: sdb1/boot/efi
Additional repair would be performed: unhide-bootmenu-10s use-standard-efi-file
Final advice in case of suggested repair: ______________________________________
Please do not forget to make your UEFI firmware boot on the LMDE 6 (faye) entry (sdb1/efi/****/grub****.efi (**** will be updated in the final message) file) !
If your computer reboots directly into Windows, try to change the boot order in your UEFI firmware.
If your UEFI firmware does not allow to change the boot order, change the default boot entry of the Windows bootloader.
For example you can boot into Windows, then type the following command in an admin command prompt:
bcdedit /set {bootmgr} path \EFI\****\grub****.efi (**** will be updated in the final message)menuentry 'LMDE 6 (faye) (on /dev/sdb5)' --class gnu-linux --class gnu --class os $menuentry_id_option 'osprober-gnulinux-/vmlinuz.old--36e0d91a-caa4-40b8-bd15-d264910228dd' {
insmod part_msdos
insmod ext2
set root='hd1,msdos5'
if [ x$feature_platform_search_hint = xy ]; then
search --no-floppy --fs-uuid --set=root --hint-bios=hd1,msdos5 --hint-efi=hd1,msdos5 --hint-baremetal=ahci1,msdos5 36e0d91a-caa4-40b8-bd15-d264910228dd
else
search --no-floppy --fs-uuid --set=root 36e0d91a-caa4-40b8-bd15-d264910228dd
fi
linux /vmlinuz.old root=/dev/sdb5
initrd /initrd.img.old
}/dev/sdb5: UUID="36e0d91a-caa4-40b8-bd15-d264910228dd" BLOCK_SIZE="4096" TYPE="ext4" PARTUUID="f638964d-05"
Asked by JustaNobody
(31 rep)
May 25, 2024, 02:22 PM
Last activity: May 30, 2024, 06:49 PM
Last activity: May 30, 2024, 06:49 PM
