Disk Utility with extra Mac HD after clean install on Monterey (formerly Big Sur)

3 votes
1 answer
1498 views

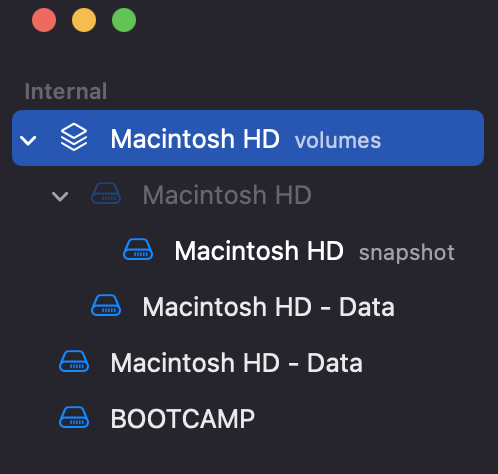

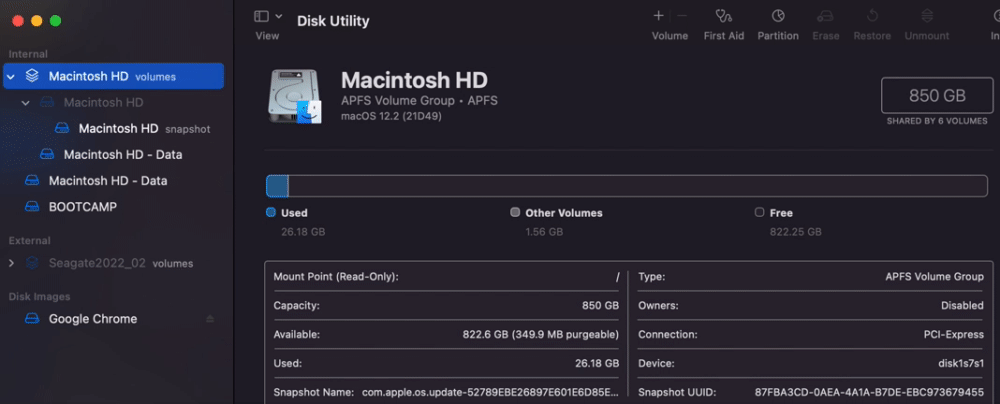

Not sure if I need to re-format and re-install again. Is it normal to see so many Mac HD, and should I try to remove the extra ones? Had some HD issue where somehow there was no space left and thus there was nothing to do but to clean install everything. Now it seems there are multiple Mac HD / Mac HD - Data, with different avail space, as shown: enter image description here enter image description here
~ % diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *1.0 TB     disk0
   1:                        EFI ⁨EFI⁩                     314.6 MB   disk0s1
   2:                 Apple_APFS ⁨Container disk1⁩         850.0 GB   disk0s2
   3:       Microsoft Basic Data ⁨BOOTCAMP⁩                150.2 GB   disk0s3

/dev/disk1 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +850.0 GB   disk1
                                 Physical Store disk0s2
   1:                APFS Volume ⁨Macintosh HD - Data⁩     688.1 KB   disk1s1
   2:                APFS Volume ⁨Preboot⁩                 271.6 MB   disk1s2
   3:                APFS Volume ⁨Recovery⁩                1.1 GB     disk1s3
   4:                APFS Volume ⁨VM⁩                      1.1 GB     disk1s4
   5:                APFS Volume ⁨Macintosh HD - Data⁩     66.9 GB    disk1s5
   6:                APFS Volume ⁨Macintosh HD⁩            15.7 GB    disk1s7
   7:              APFS Snapshot ⁨com.apple.os.update-...⁩ 15.7 GB    disk1s7s1

/dev/disk2 (disk image):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:     Apple_partition_scheme                        +455.4 MB   disk2
   1:        Apple_partition_map ⁨⁩                        32.3 KB    disk2s1
   2:                  Apple_HFS ⁨Google Chrome⁩           455.3 MB   disk2s2
                    (free space)                         13.0 GB    -

/dev/disk5 (disk image):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        +401.1 MB   disk5
   1:                  Apple_HFS ⁨Unity Hub 3.0.1⁩         401.0 MB   disk5s1

/dev/disk6 (disk image):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        +2.4 GB     disk6
   1:                        EFI ⁨EFI⁩                     209.7 MB   disk6s1
   2:                  Apple_HFS ⁨Visual Studio⁩           2.1 GB     disk6s2
Asked by ina (929 rep)
Feb 7, 2022, 03:02 AM
Last activity: Jun 21, 2025, 09:04 PM
